Misc. Antique
Vintage Collectible & User
Tools & Rules

Troughton & Sims/ London 6" Ivory Protractor / Scale / Rule  A nice example. Most sellers call these off as an navigation tool, and many are found in cased Maritime / Navigation sets, or as an architect scale / rule.

This rule is marked Troughton & Sims/ London a well known English maker. It is configured similar to a Architects Rule with numerous scales and a protractor on the perimeter. Rules like this are usually found in boxed drafting sets, or traveling Shagreen cases associated with navigation or architects. It has developed a nice even yellow Patina, and the overall condition is good.

Click for Pic               Click for Pic

HG-I-6SIMS

Good + . . . . . $70.00

To Order Email: patentedantiques@gmail.com

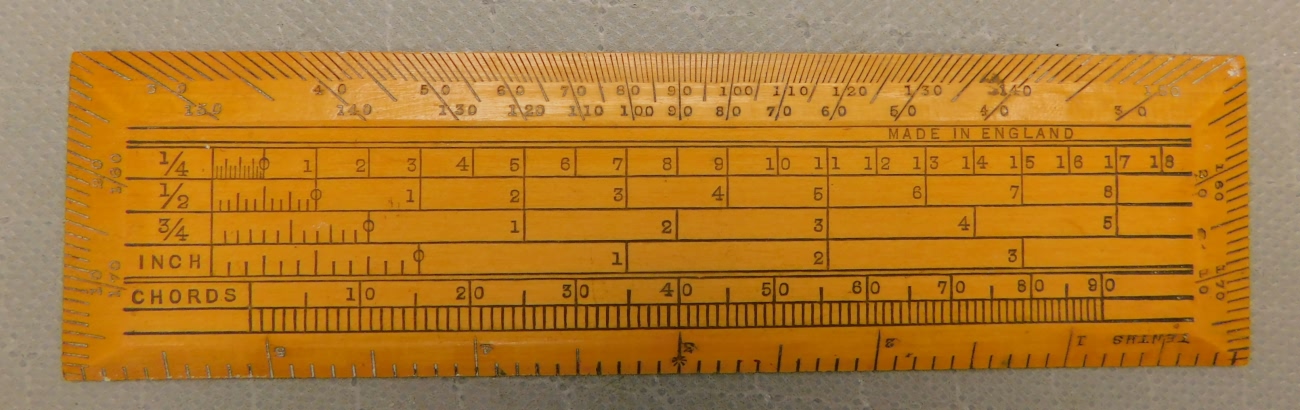

English 6" Boxwood Protractor / Scale / Rule An interesting example in Boxwood that is in fantastic condition. There is no maker name, just a "Made in England" . It is in near mint condition.

Click for Pic

HG-BOX-6-PRO

Good . . . . . $40.00

To Order Email: patentedantiques@gmail.com

Misc. Antique & Vintage
Drills / Braces / Bits & Related Tools

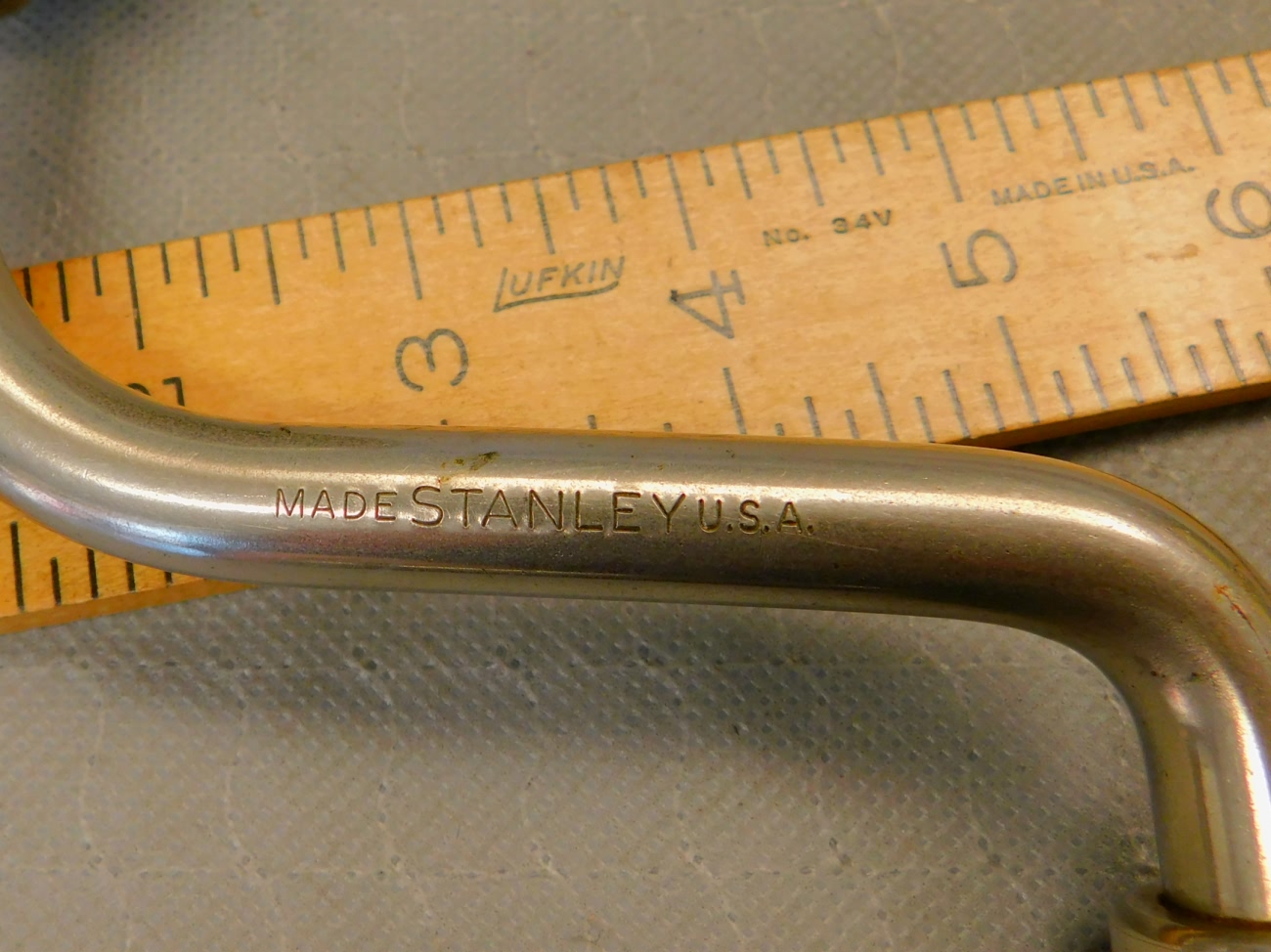

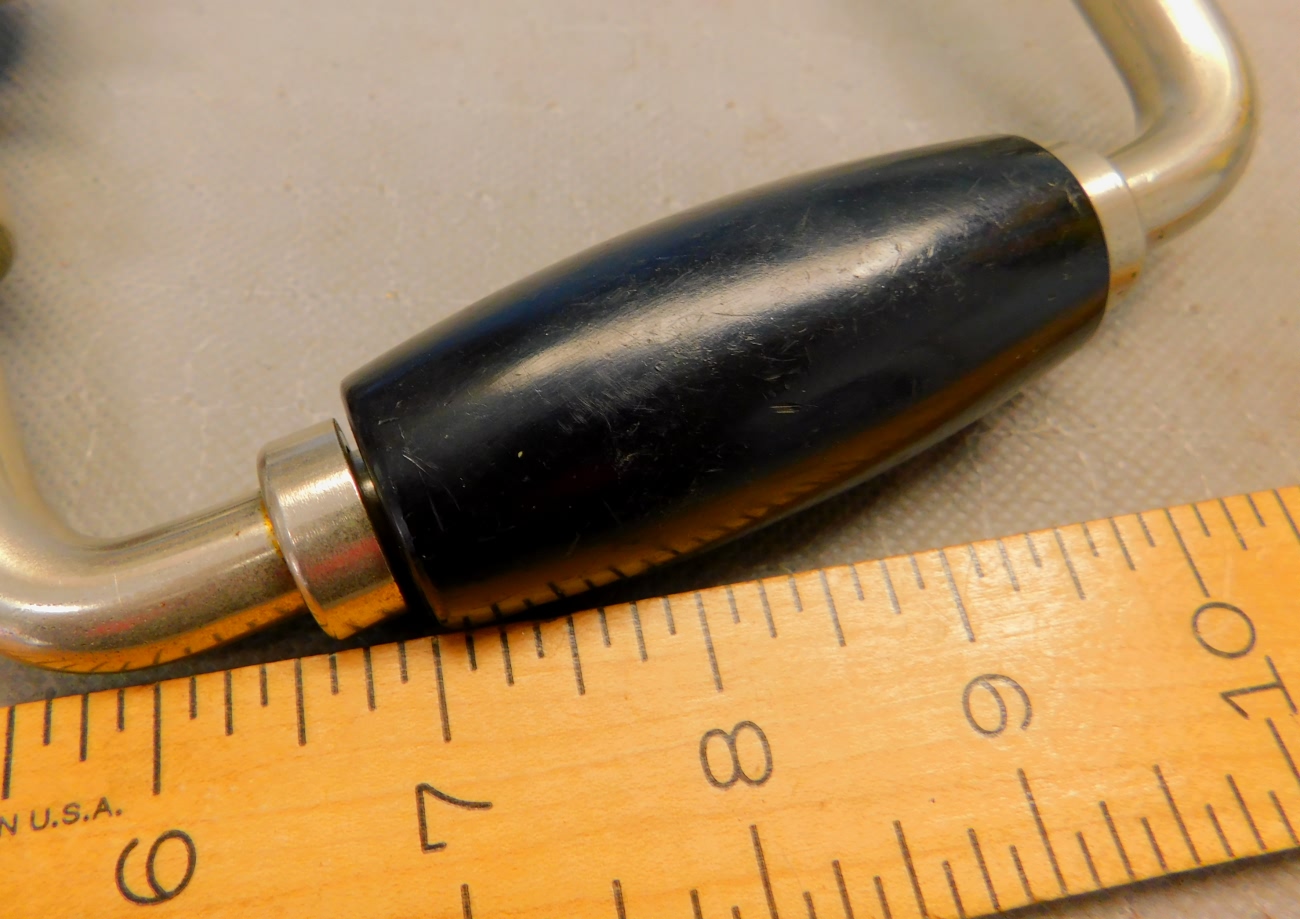

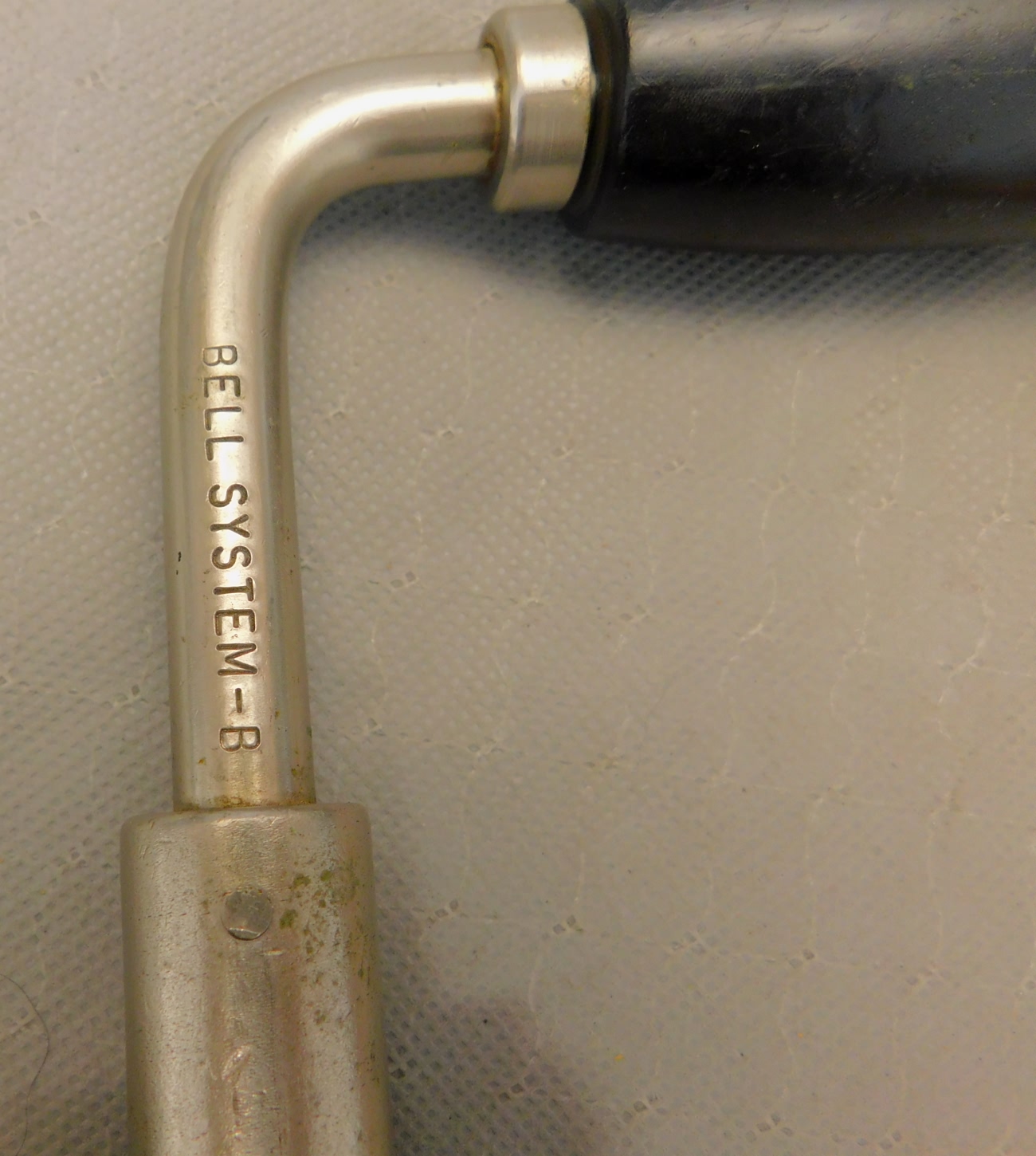

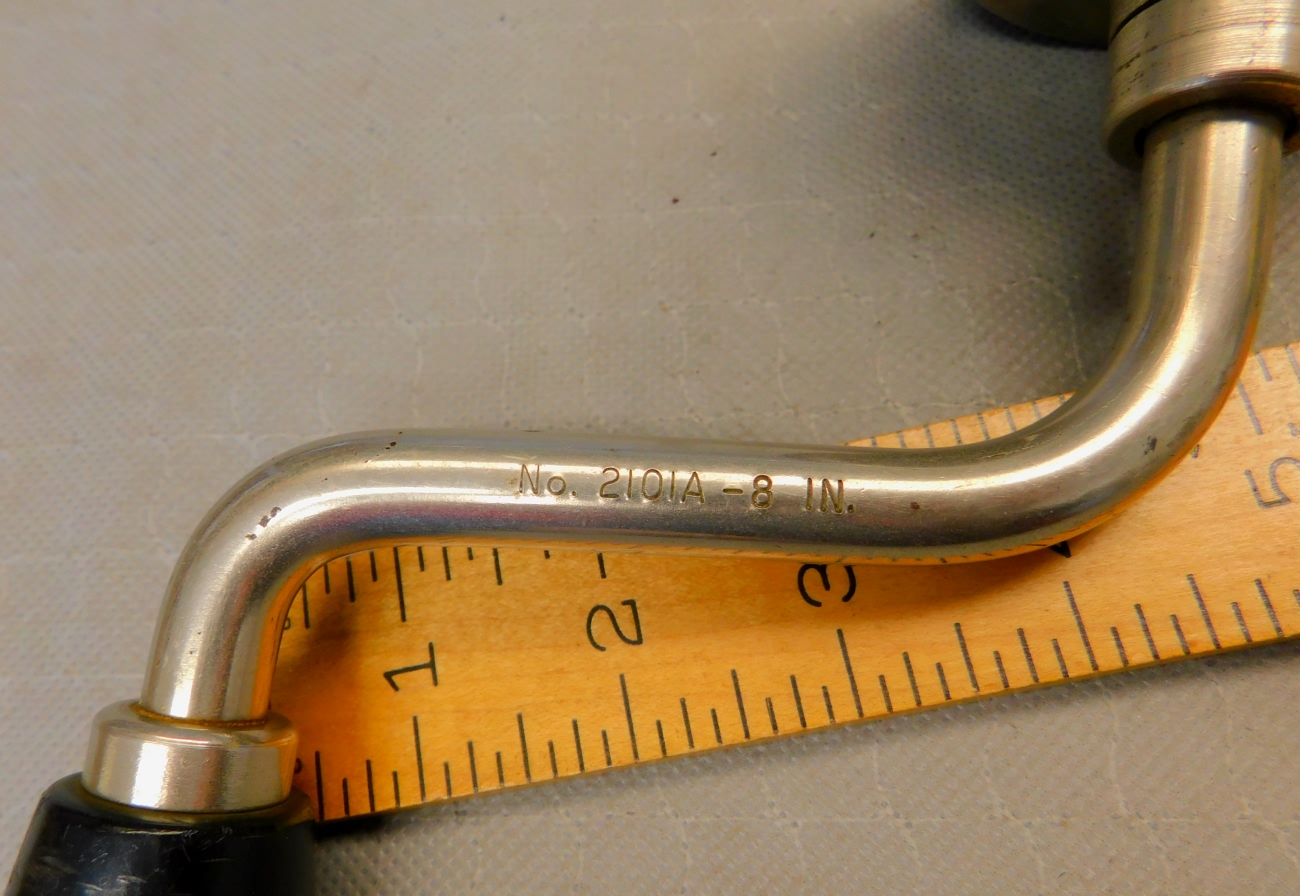

Stanley No. 2101 A 8" Bell System B Auger Bit Brace Very nice!! The 2101 brace is considered by many to be the finest user brace made. This example is very nice with nearly all its plating and showing little signs of use. It is very nice and operates flawlessly.

Click for Pic             Click for Pic             Click for Pic             Click for Pic


Click for Pic             Click for Pic             Click for Pic             Click for Pic             Click for Pic

DM-2101-BRACE

Fine . . . . . $110.00

To Order Email: patentedantiques@gmail.com

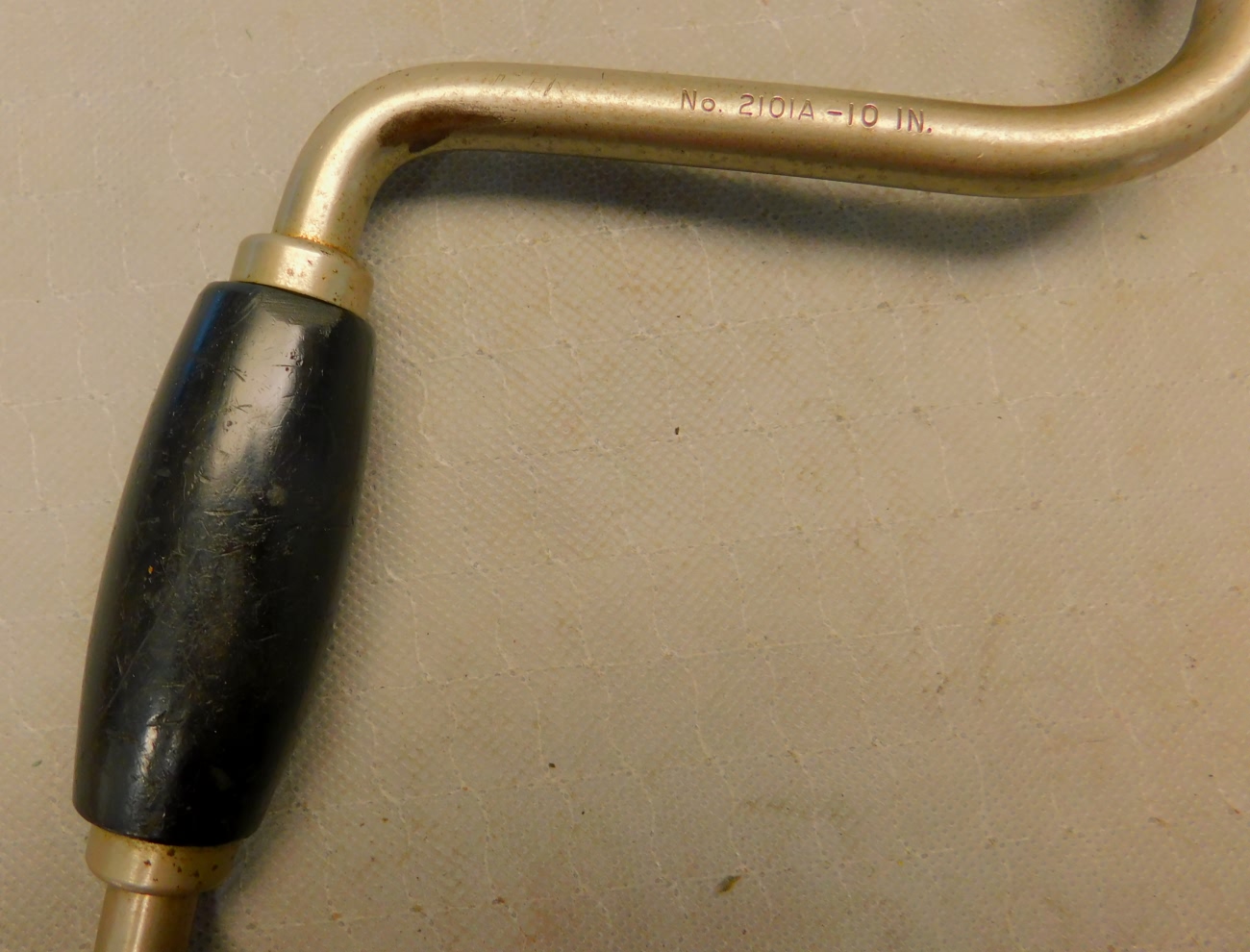

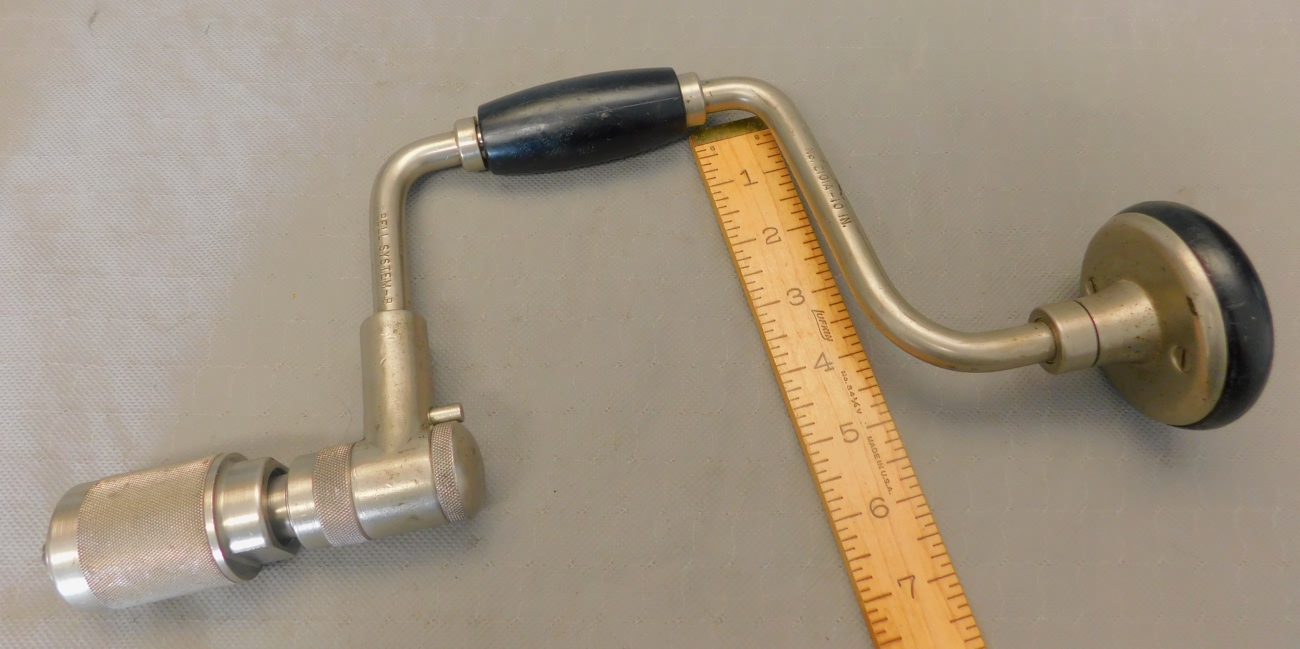

Stanley / Bell System No. 2101 A 10" Auger Bit Brace The ratchet system works just fine after I went inside and cleaned out the hardened green grease. Overall a very nice brace considered by many users to be the best available.

Click For Pic            Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic

JF-2101-BRACE-2N

Good +. . . . . 115.00

To Order Email: patentedantiques@gmail.com

Stanley / Bell System No. 2101 A 10" Auger Bit Brace Same as above. The ratchet system was frozen in both directions because the original green grease had hardened.  It now works just fine after I went inside and cleaned out the hardened green grease with the help of instructions found online at Georges Basement. His instruction are great, and even though I have done this a dozen or so times, I refer back every time as it is a bit tricky and his process makes it clear and easy.

The 2101 is considered by many users to be the best available. There are a lot of them out in the world as Bell must have given every field employee one, if not a new one every year. Back when they were a dime a dozen and could be had for next to nothing, and on a good day, that might still be true at some yard sale or flea, but mark my words, and I speak from 50 or so years of experience, the ready supply is coming to an end. They are not falling out of the door at garage sales, and the days of finding a cheap one at whatever sale are coming to an end. The time to get one reasonably is now. If not this one, then one of the ones selling cheaper on eBay that will need to be gone through. They are getting harder to find.

Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic

ALA-2101-BRACE-10

Good +. . . . . 100.00

To Order Email: patentedantiques@gmail.com

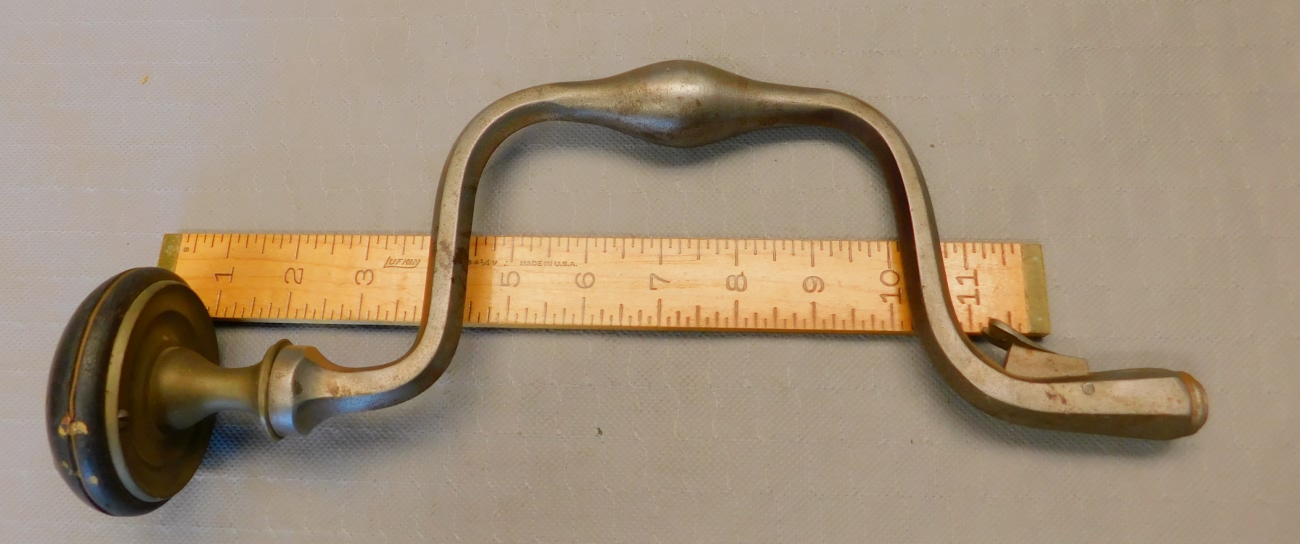

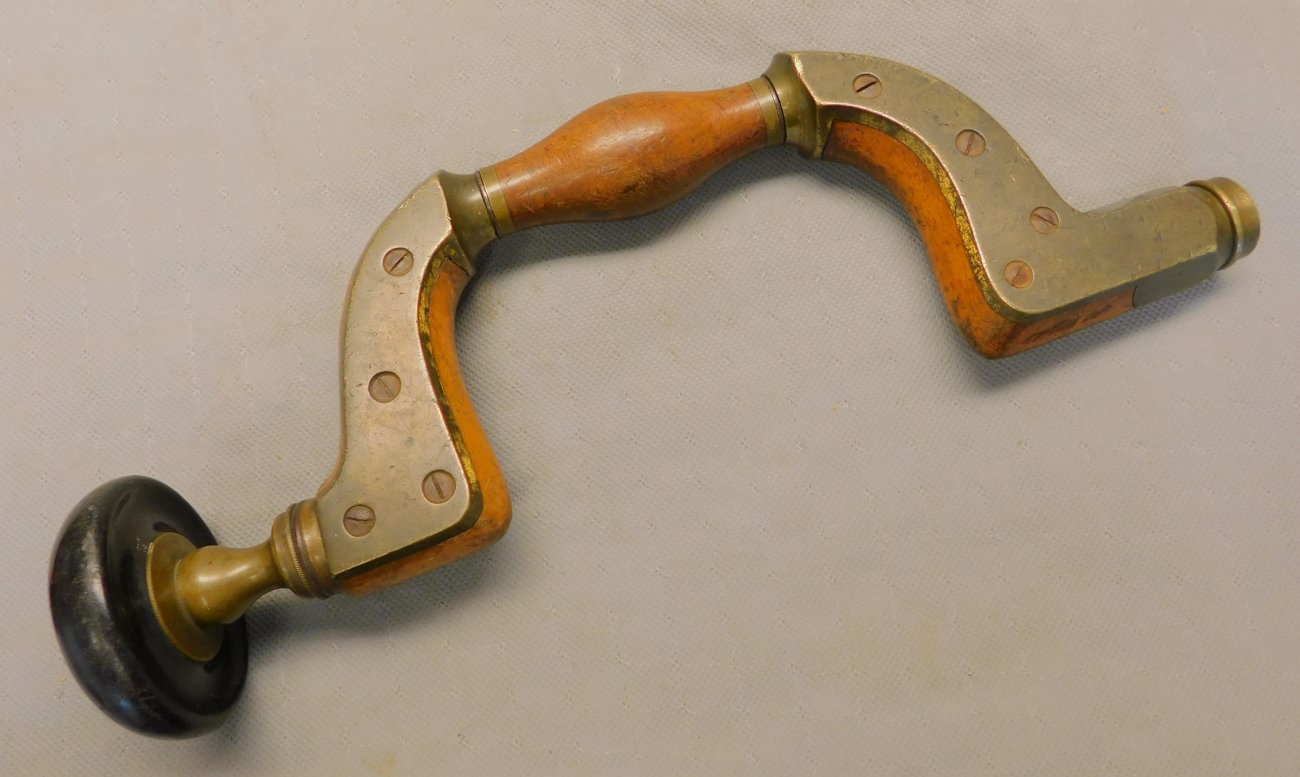

Mathieson Iron Brace w/ Rosewood Head & Heart Shape Button The overall condition is nice. Rosewood pad has a chip. Note the heart shaped button to release the bits. It is faintly marked on the side of the head. Different and nice!!

Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic

SAC-MATH-BRC

Good . . . . . $45.00

To Order Email: patentedantiques@gmail.com

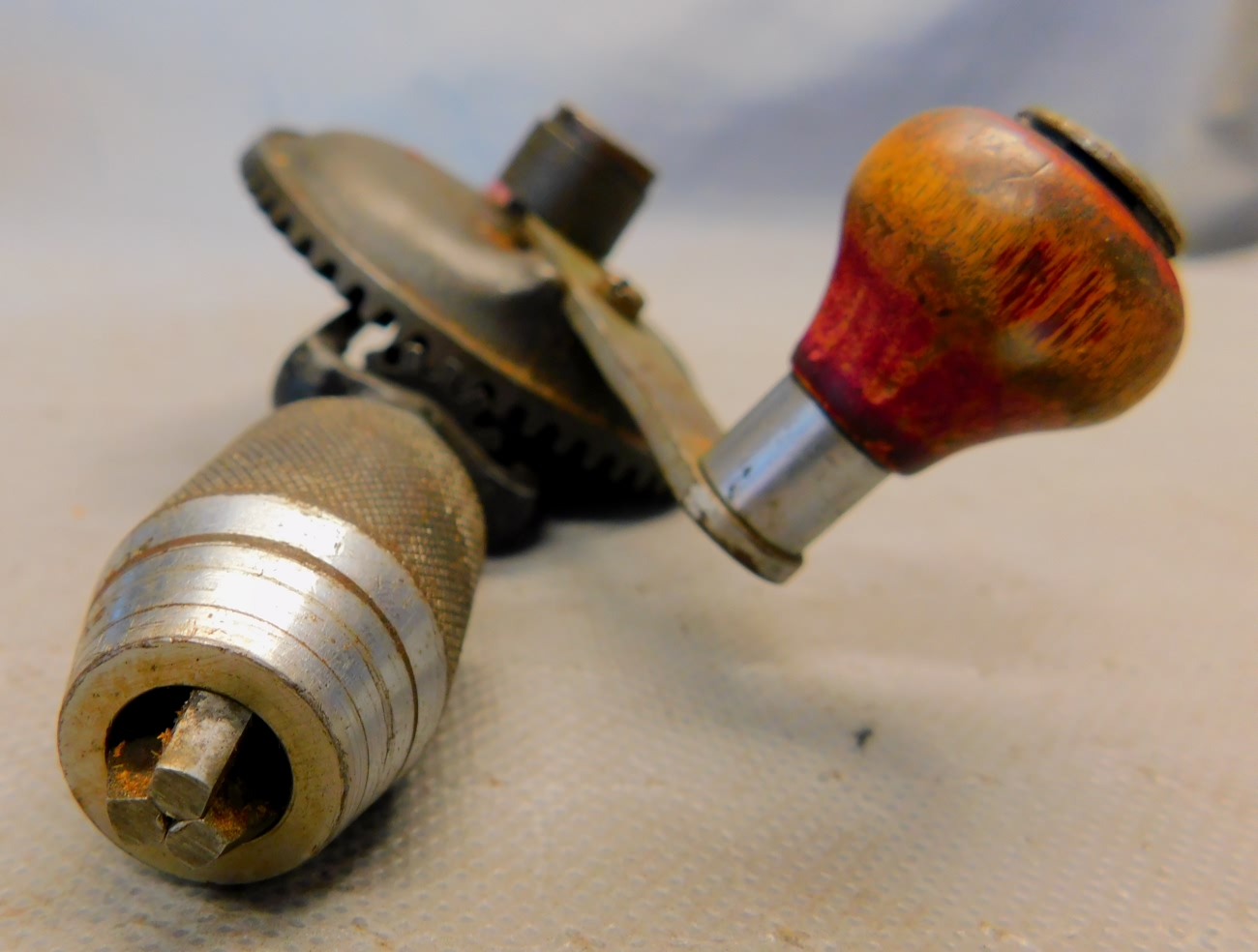

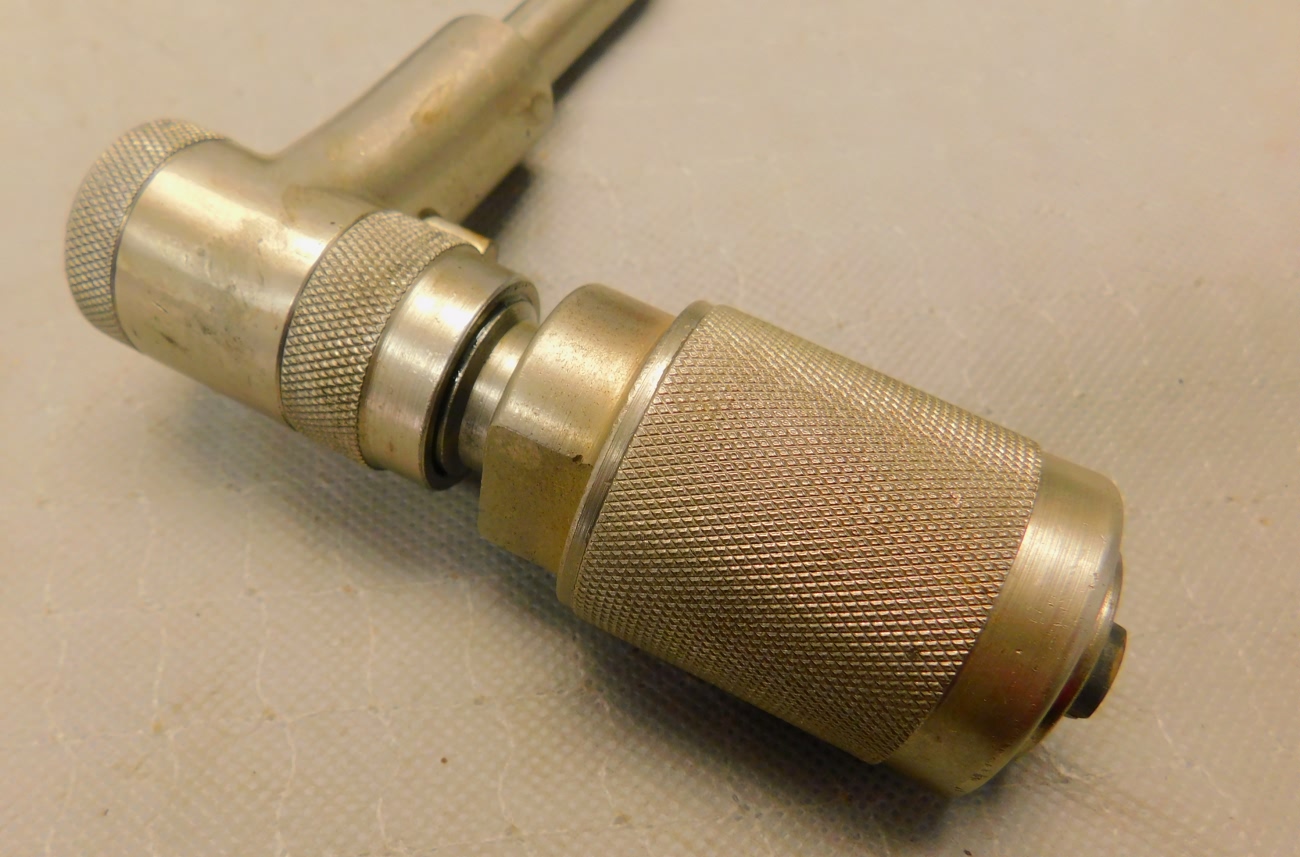

Yankee 1530A Ratcheting Hand Drill w/ Transmission This popular hand drill with transmission has seen use, but is nice enough. Good jaws. Runs smooth and correctly in all positions. A favorite with users.

Click for Pic                Click for Pic                Click for Pic                Click for Pic

YANK-1530A

Good +. . . . . $35.00

To Order Email: patentedantiques@gmail.com

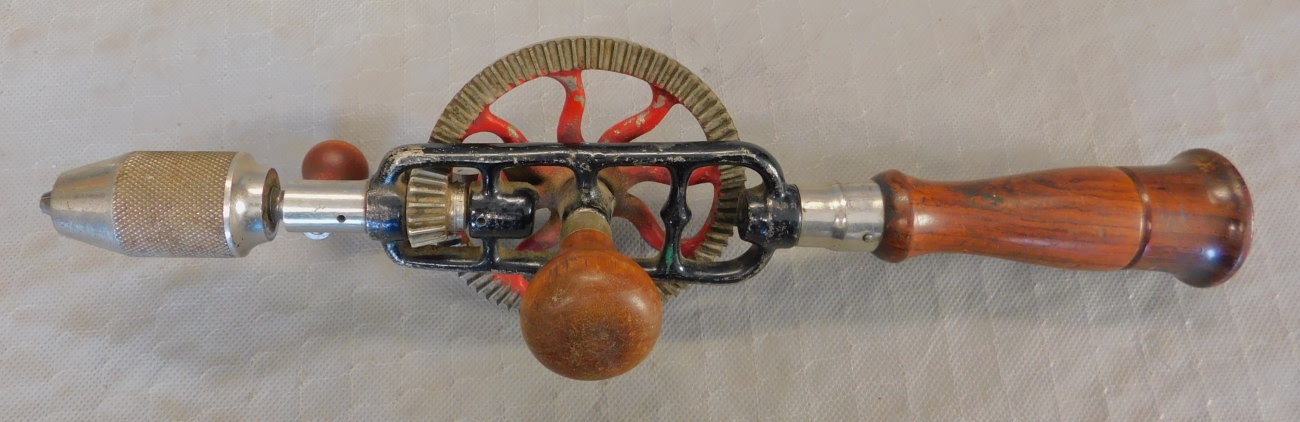

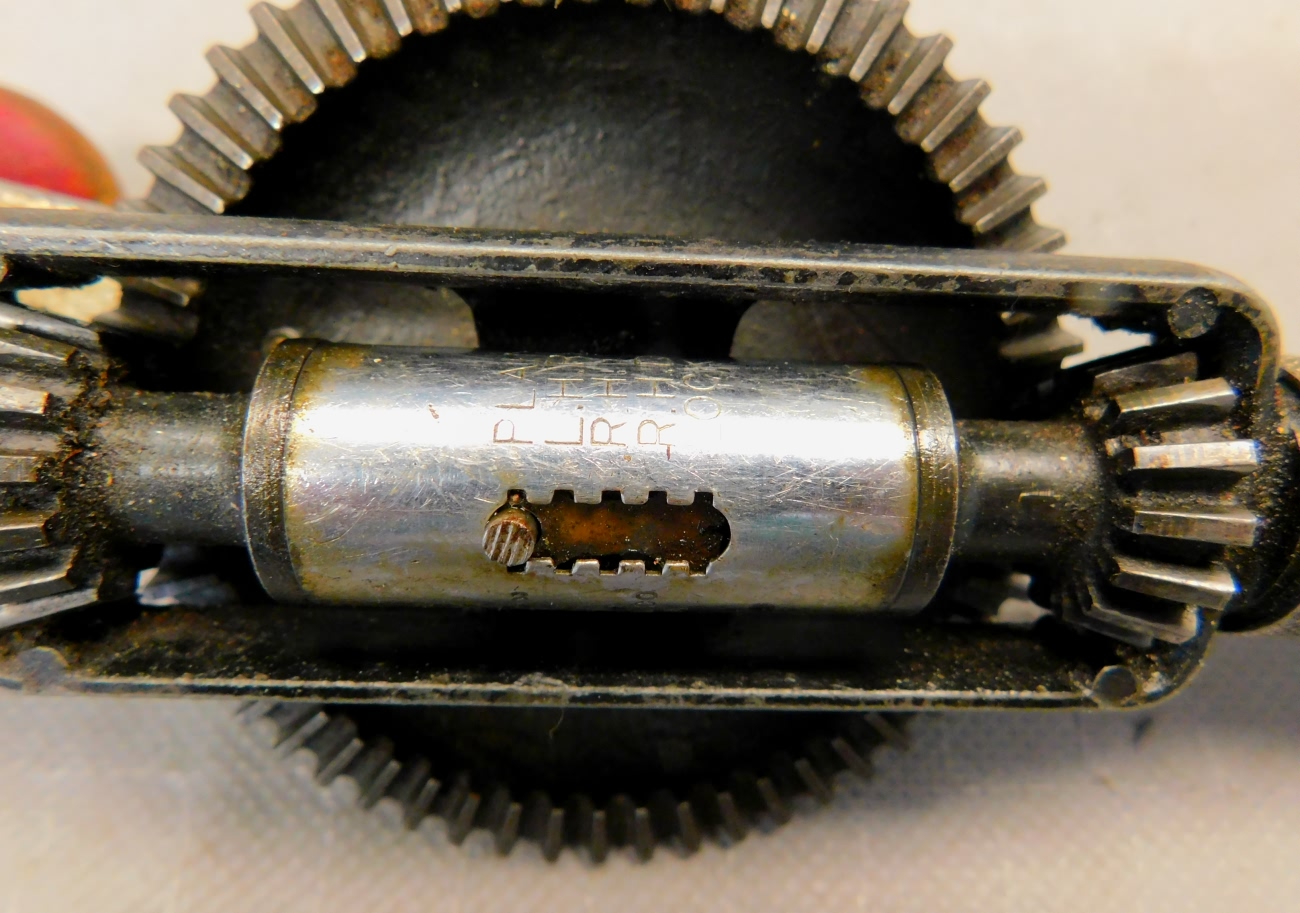

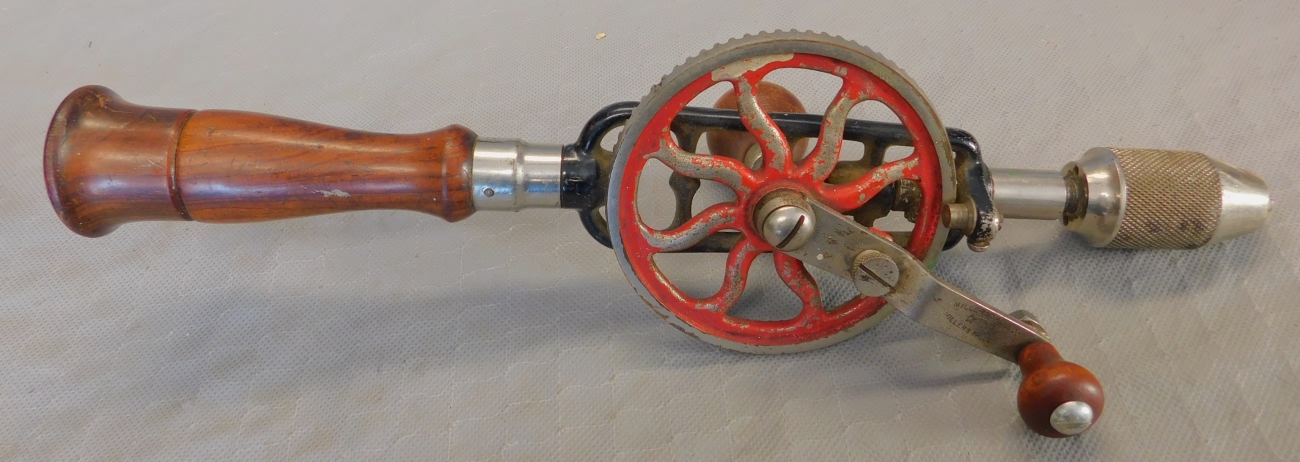

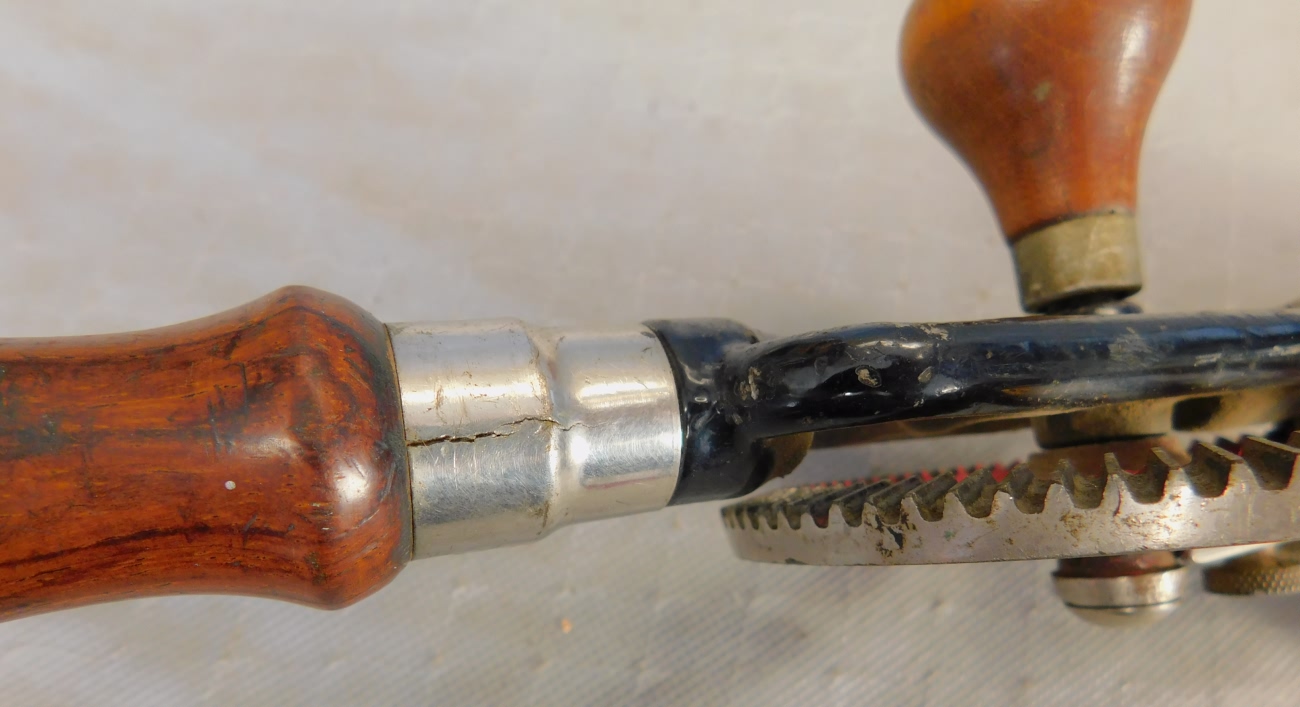

Millers Falls No. 2 Hand Drill Very nice!! This is an early model with Rosewood handle, and the roller guide that runs against the crank wheel, a feature that was dropped on later models.

The chuck is nice, and it runs as smooth as one would want. It appears the bolt or screw holding the small crank handle wood knob has been replaced. 2 original bits in handle. It has the side handle. These early models are much nicer than the later ones with added features and nicer finish. The favorite hand drill of users.

Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic                Click for Pic                Click for Pic

AMN-MF2-BRC

Good + . . . . . $70.00

To Order Email: patentedantiques@gmail.com

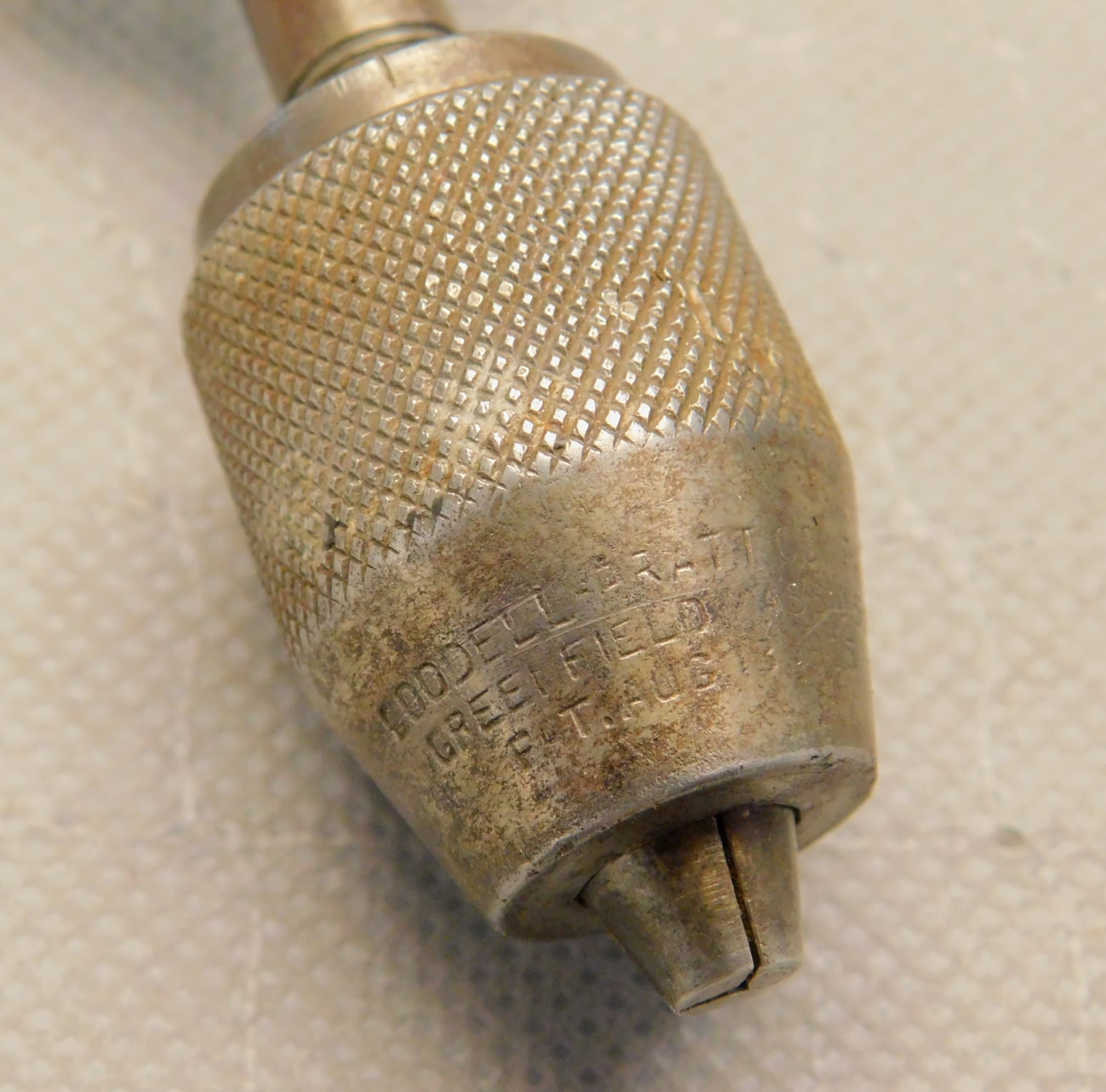

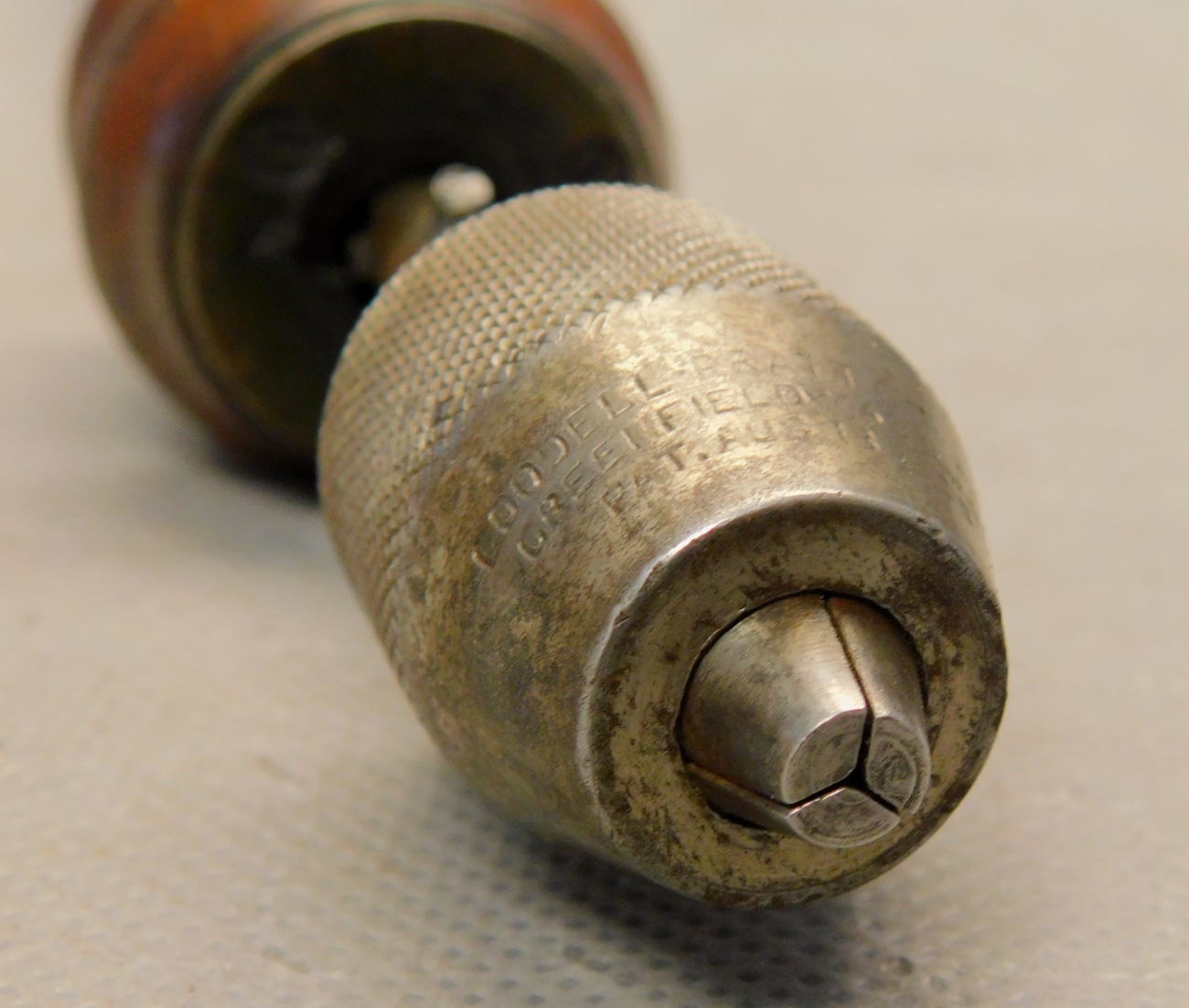

Goodell Pratt No. 0 Reciprocating Drill Very nice. Good wood. Chuck revolves in one direction on both the up and down stroke. 16-1/2" long with a 1/4" three jaw chuck. The chuck is marked "Goodell-Pratt Company Greenfield, Mass. U.S.A. Pat. Aug. 3, 1895.

Click for Pic               Click for Pic               Click for Pic               Click for Pic

JF-GPD

Good + . . . . . $30.00

To Order Email: patentedantiques@gmail.com

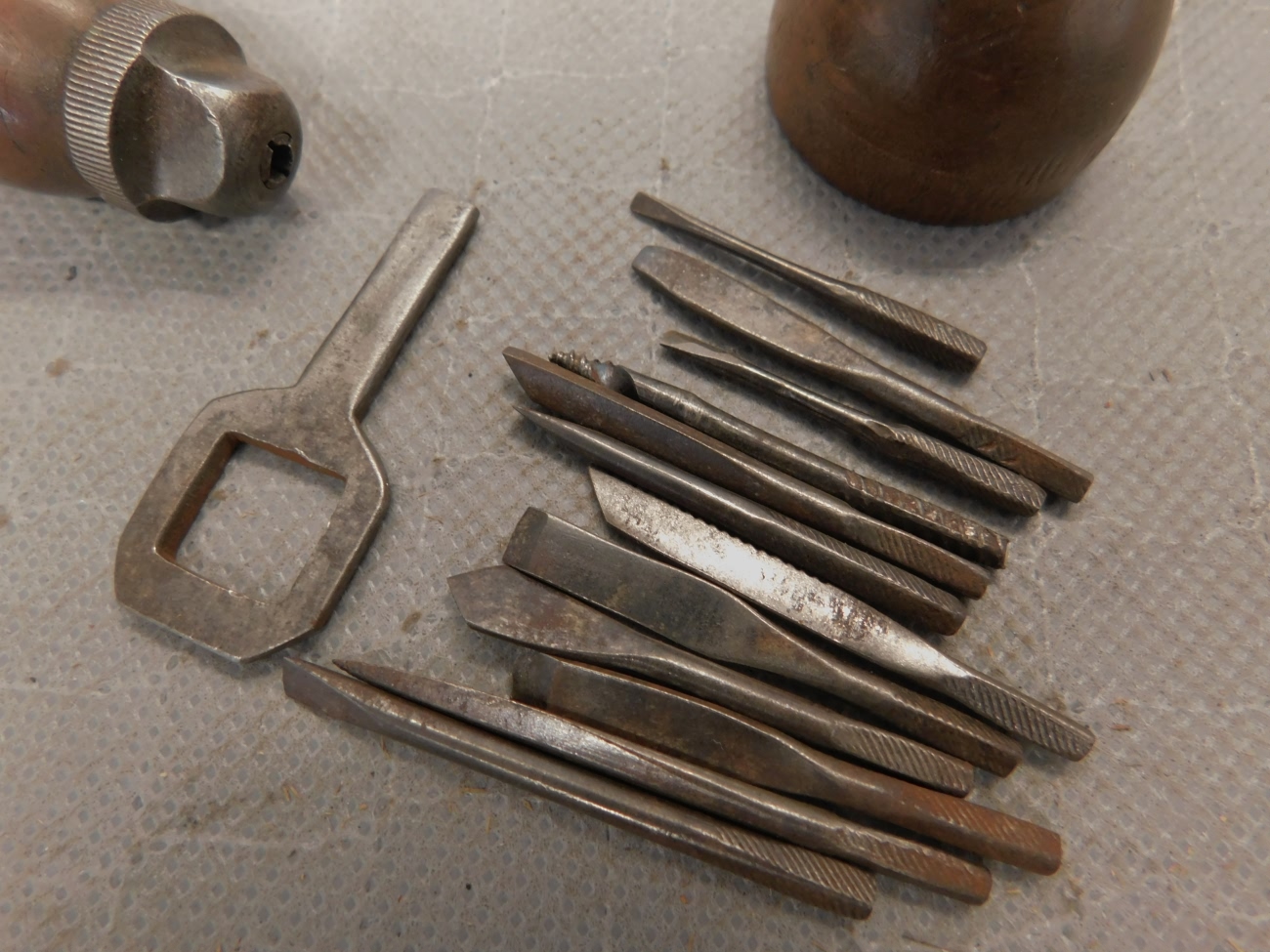

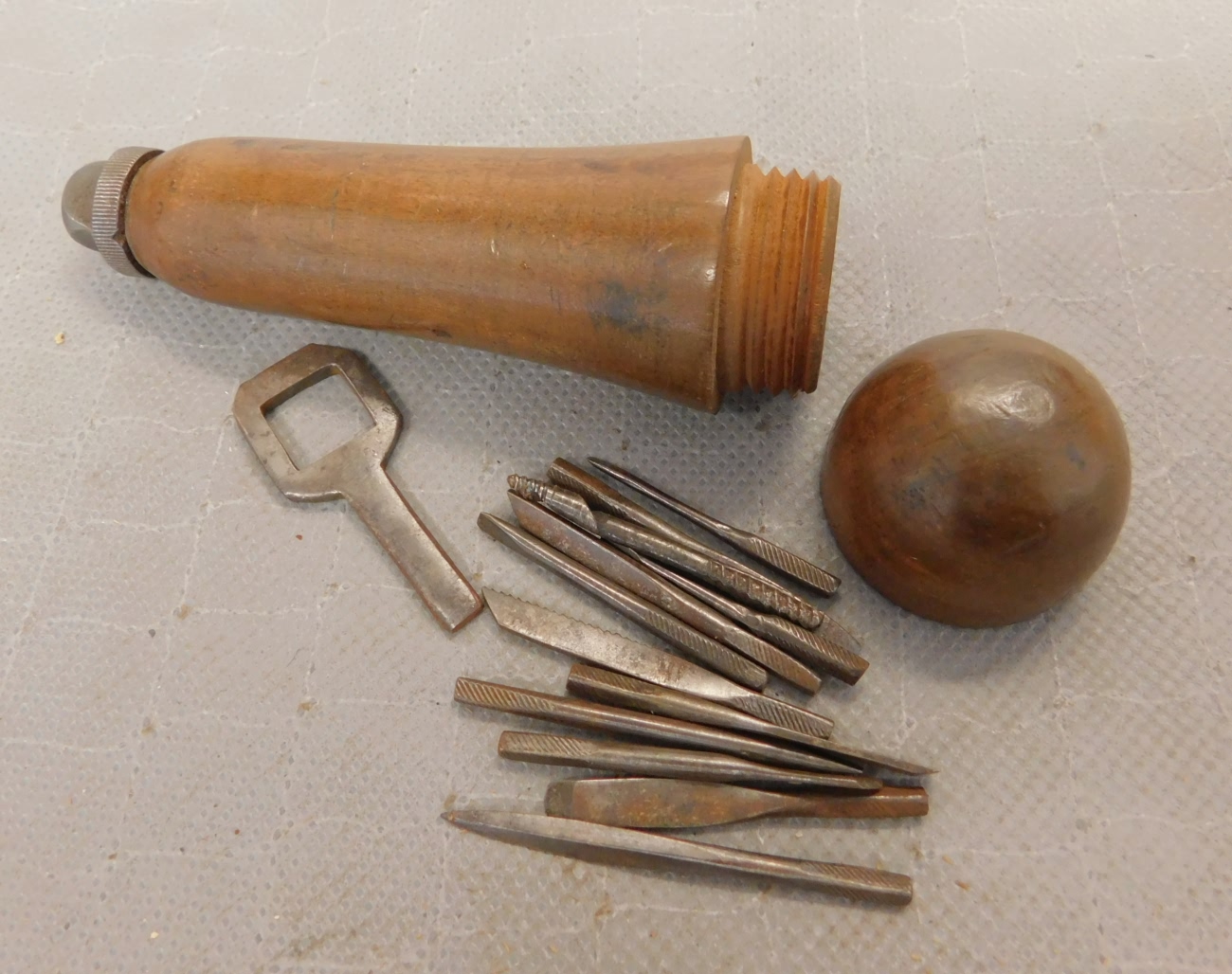

Antique Multi Tool Handle w/ Wrench & 12 Tools  A bit different, a bit nicer, a bit more unusual than typical. I believe it is boxwood. I see no maker name or patent info. 12 original tools for all sorts of tasks.

click for Pic             click for Pic             click for Pic


click for Pic             click for Pic             click for Pic

AMN-TOOL-H

Good + . . . . . $24.00

To Order Email: patentedantiques@gmail.com

Antique Brass Multi Tool w/ Corkscrew & 3 Tools Great Patina. I see no maker name or patent info. 4 tools for all sorts of tasks including a corkscrew.

Click For Pic

JF-CORK

Good + . . . . . $15.00

To Order Email: patentedantiques@gmail.com

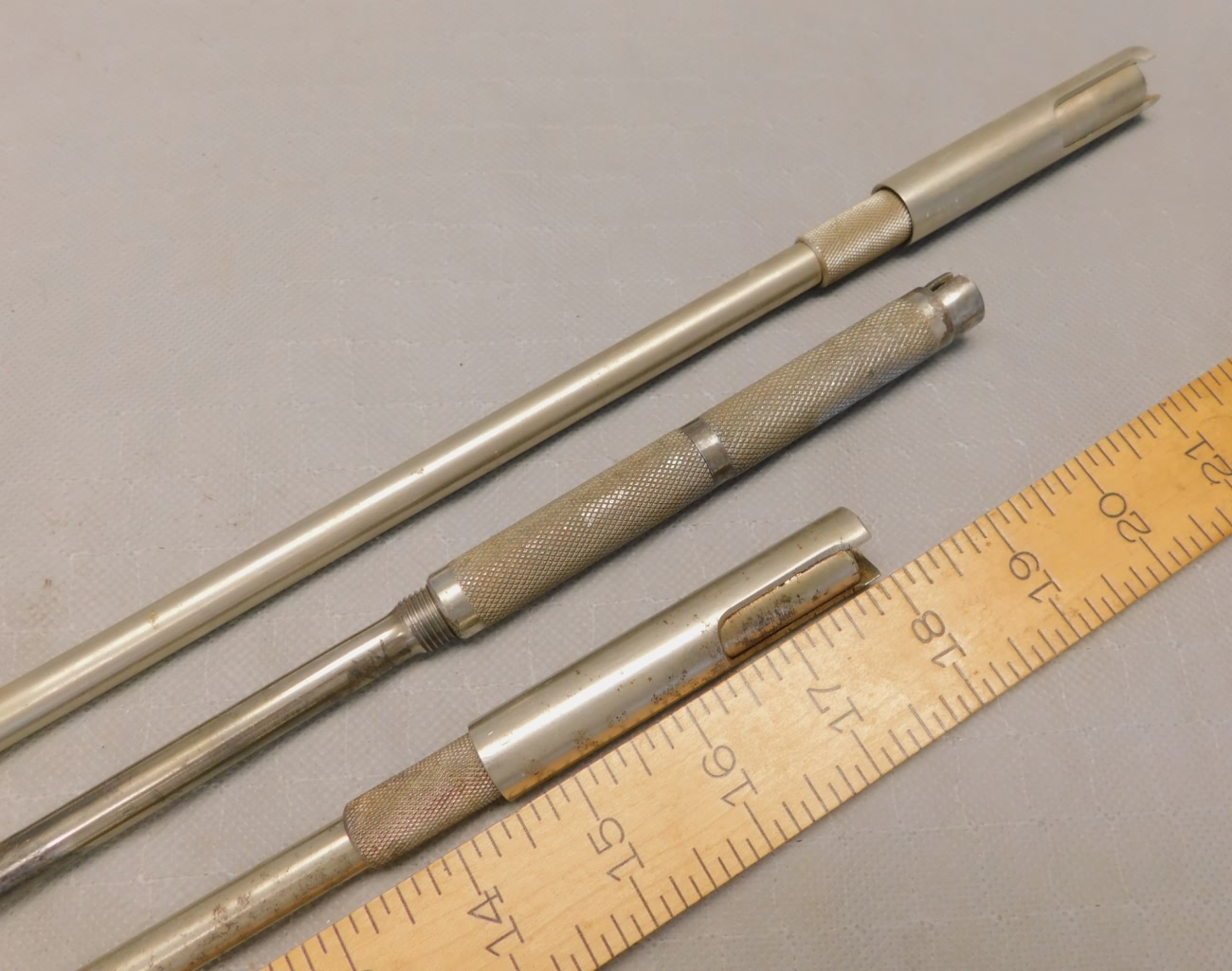

3 Stanley Auger Bit Extensions for Brace  Used - still usable. All three are Stanley.  An 18 - 21 & 24"

Good . . . . . $10.00 / choice          18" ----- SOLD!!

To Order Email: patentedantiques@gmail.com

Stanley No. 49 Auger Bit Depth Stop / Gauges Both are WWII vintage. Both are in fine condition One has a replaced bolt & wing nut that came from a nickeled one.

Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic

BOIS-S49-B                                     BOIS-S49-N

Good + . . . . . $18.00 Choice

To Order Email:  patentedantiques@gmail.com

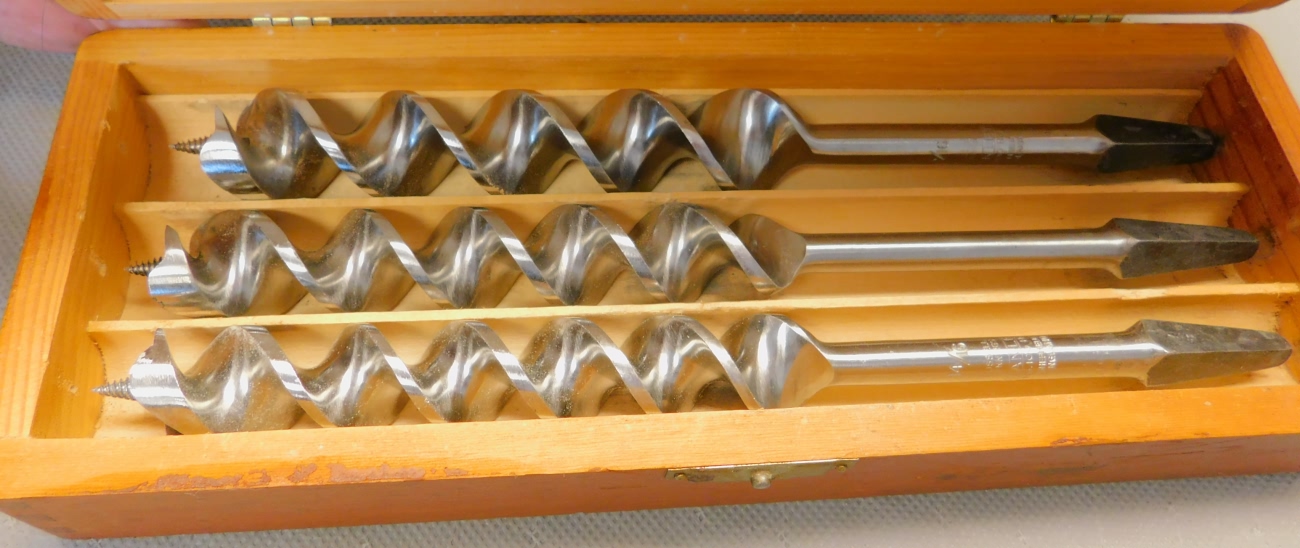

Stanley / Russell Jennings No. 32 1/2 Quarters No. 100 Auger Drill Bit Set in 3 Tier Box  Very nice. All look good, and most look to be unused.

Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic

BOIS-STAN/RJ-BIT-3

Fine . . . . . $225.00

To Order Email: patentedantiques@gmail.com

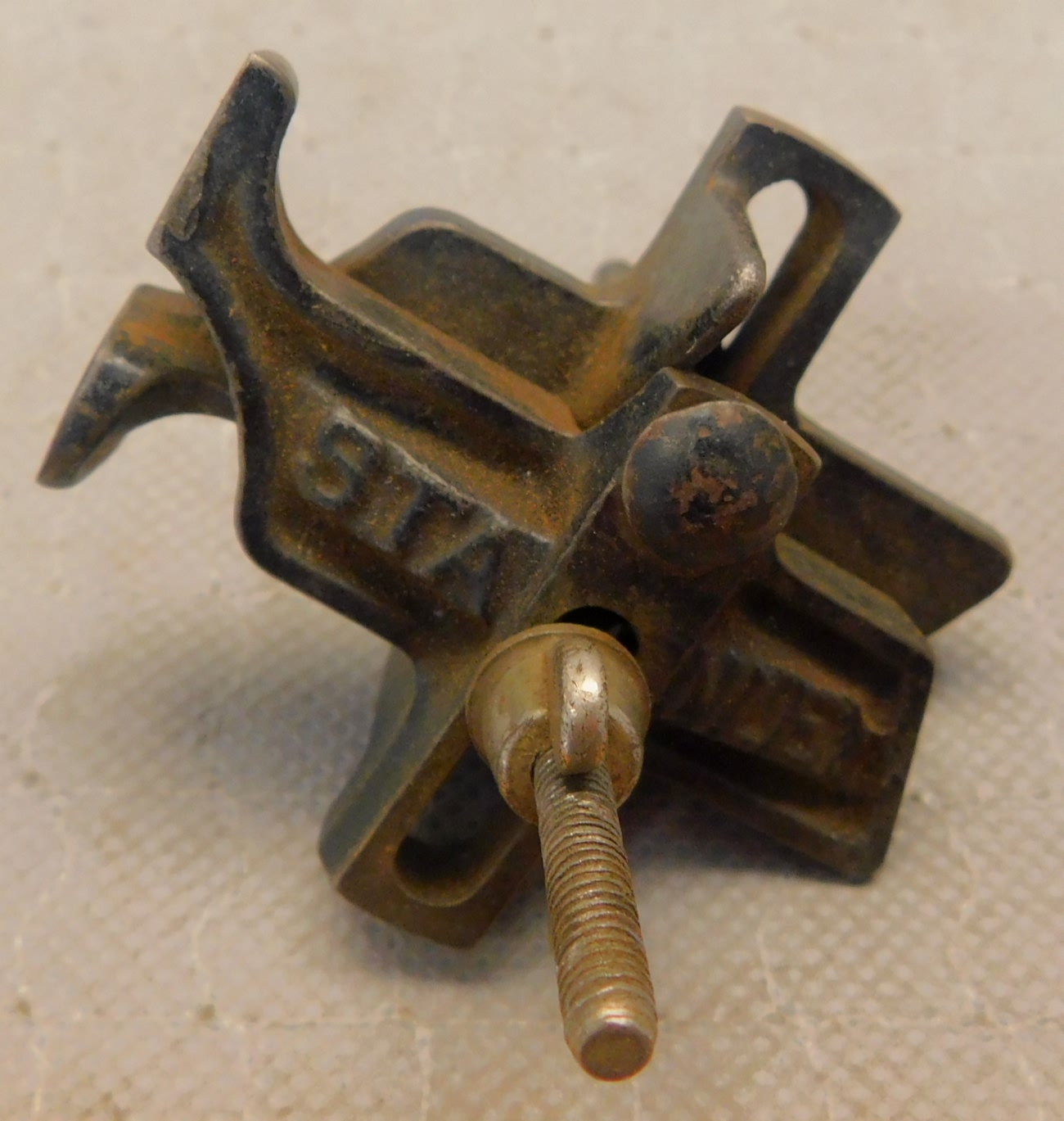

Stanley No. 59 Dowell Jig in Box An earlier cast iron version. Fine overall condition. 6 different proper and original dies and an extra set of location points.

LCM-S59

click for Pic                click for Pic                click for Pic                click for Pic

Fine . . . . . . $45.00

To Order Email: patentedantiques@gmail.com

Misc.
Wrenches / Hammers / & Related Tools

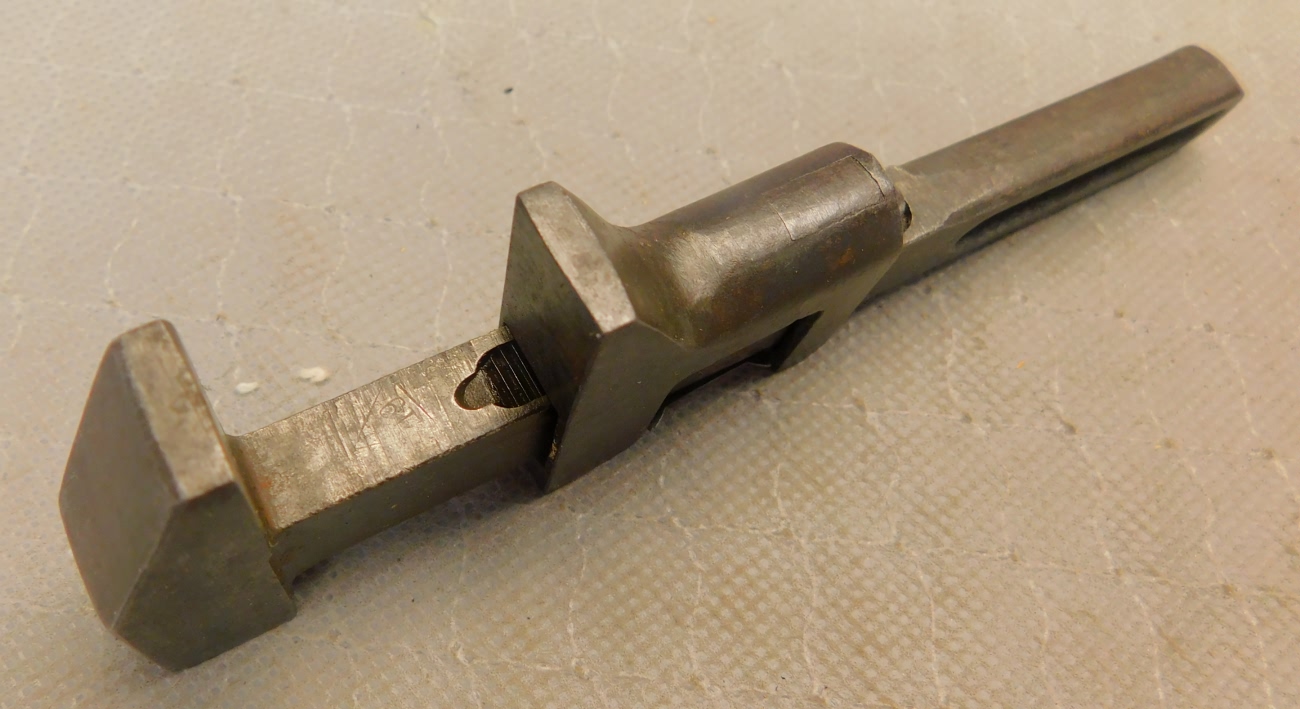

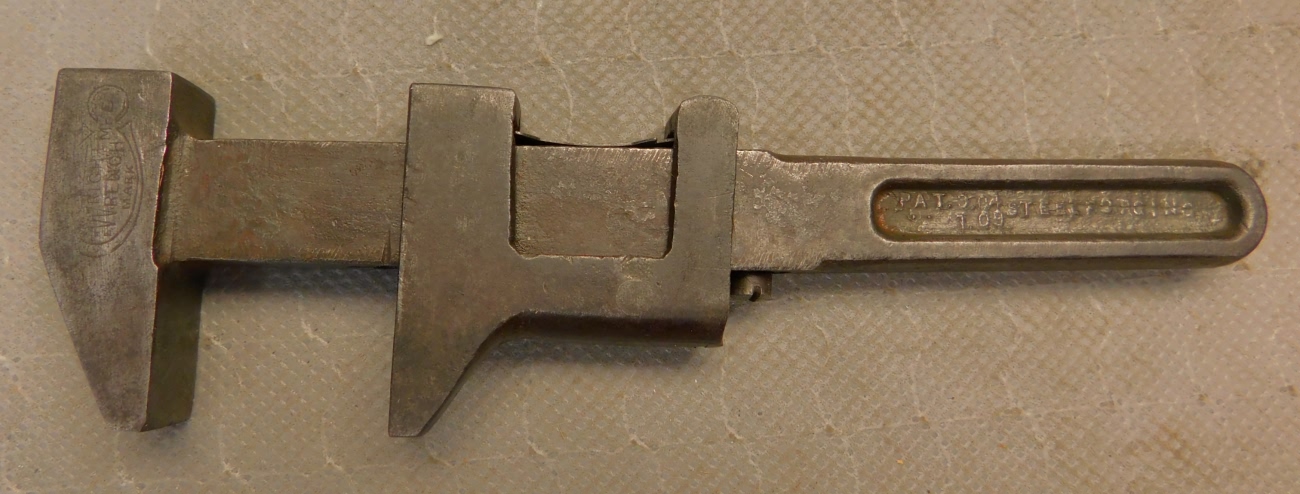

L. & A. G. COES. 1841 Patent 15" Adjustable Nut Wrench The head on this large 15" and early nut wrench is marked L. & A. G. COES, and Worcester the earliest Coes stamp on one side, and "PATENT" on the other.

Loring Coes was granted his first wrench patent on April 16th 1841 and this is an example of that first patent offering. He sold out to his brother in 1869. Characteristics of this wrench and the way it is marked date it as pre Civil War and from the 1850s if not the 1840s.

No damage or issues. This earliest stamp this example has is very seldom seen. The finish on the handle is original. The jaws are near perfect. As nice as one could hope for. The wrench is in fine plus condition. Top Shelf. Get it before it is gone!!!

Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click For Pic            Click For Pic            Click For Pic

LCM-COES

Good + . . . . . . $195.00

To Order Email: patentedantiques@gmail.com

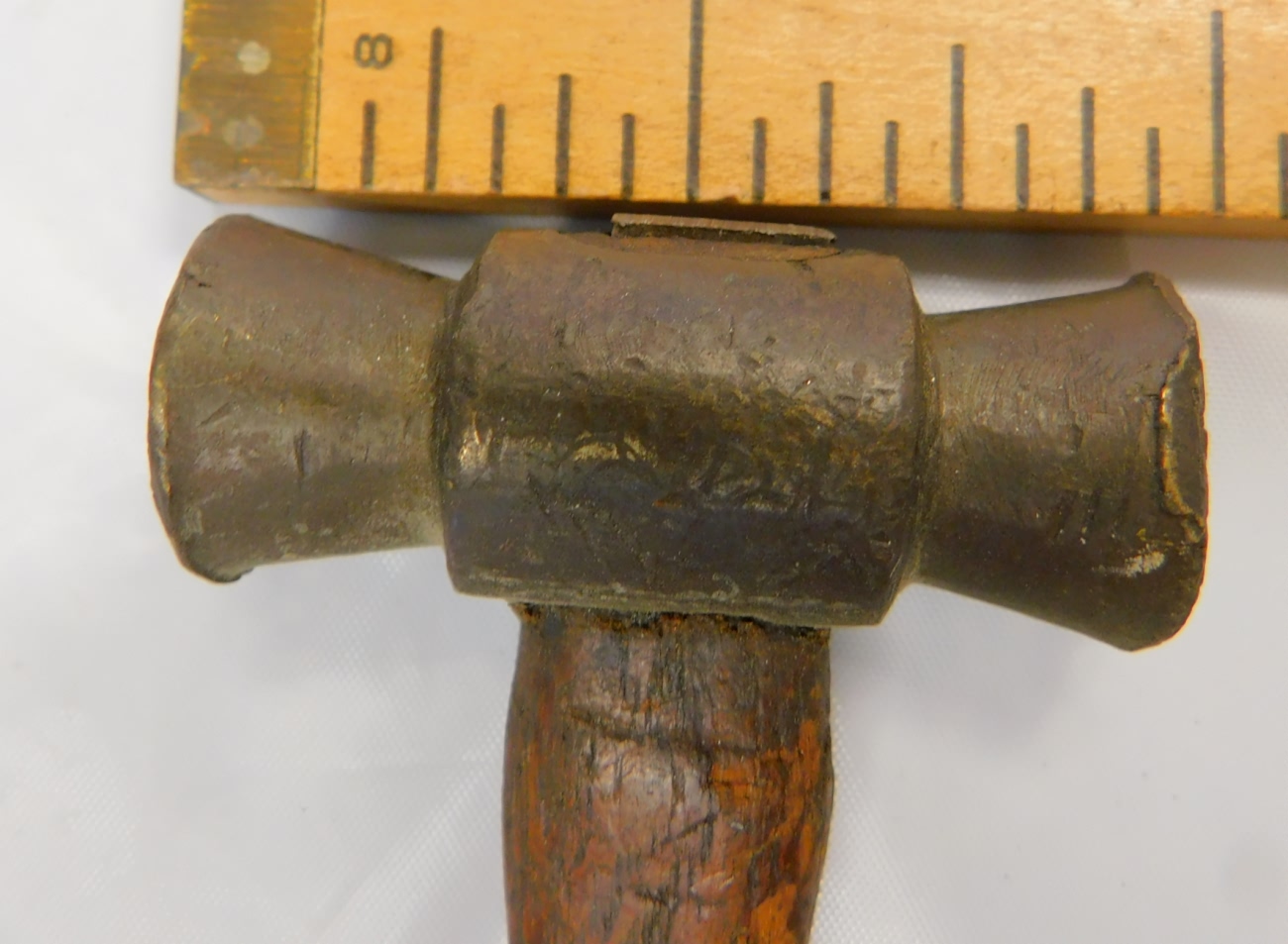

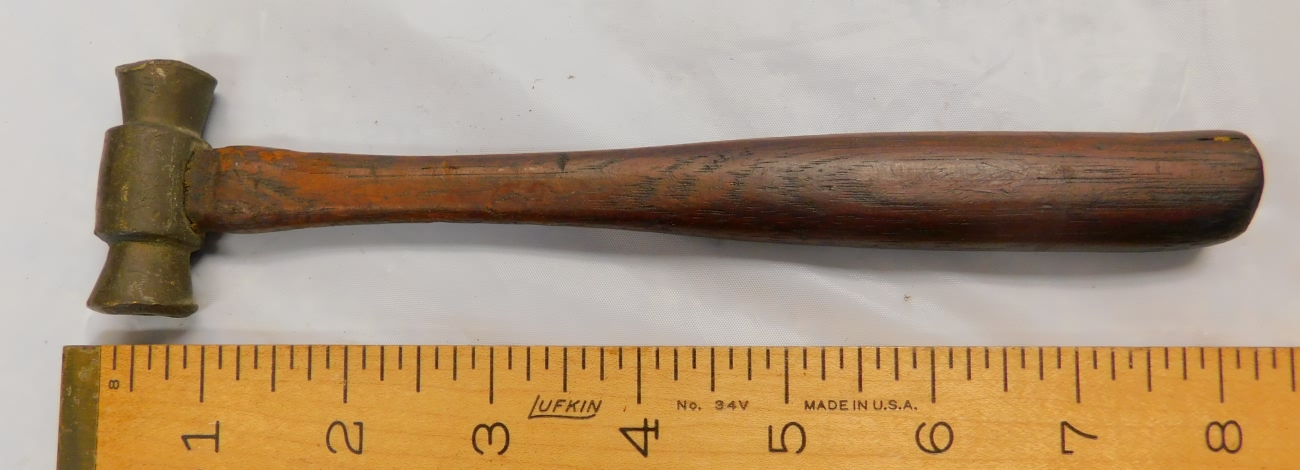

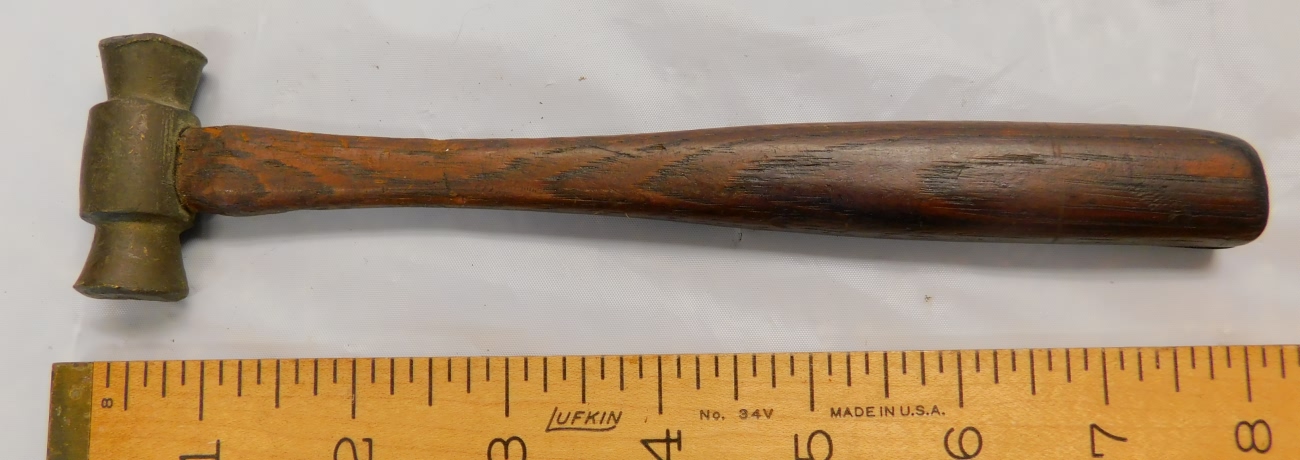

Small Double End Non Sparking Brass Hammer The brass hammer is a bit smaller than the one above and w/ handle is about 8 inches long. The head has some flaring on the ends.  It is unmarked as far as I can see.

Click For Pic            Click For Pic            Click For Pic

CHRL-SMB-HMR

Good . . . . . . $10.00

To Order Email: patentedantiques@gmail.com

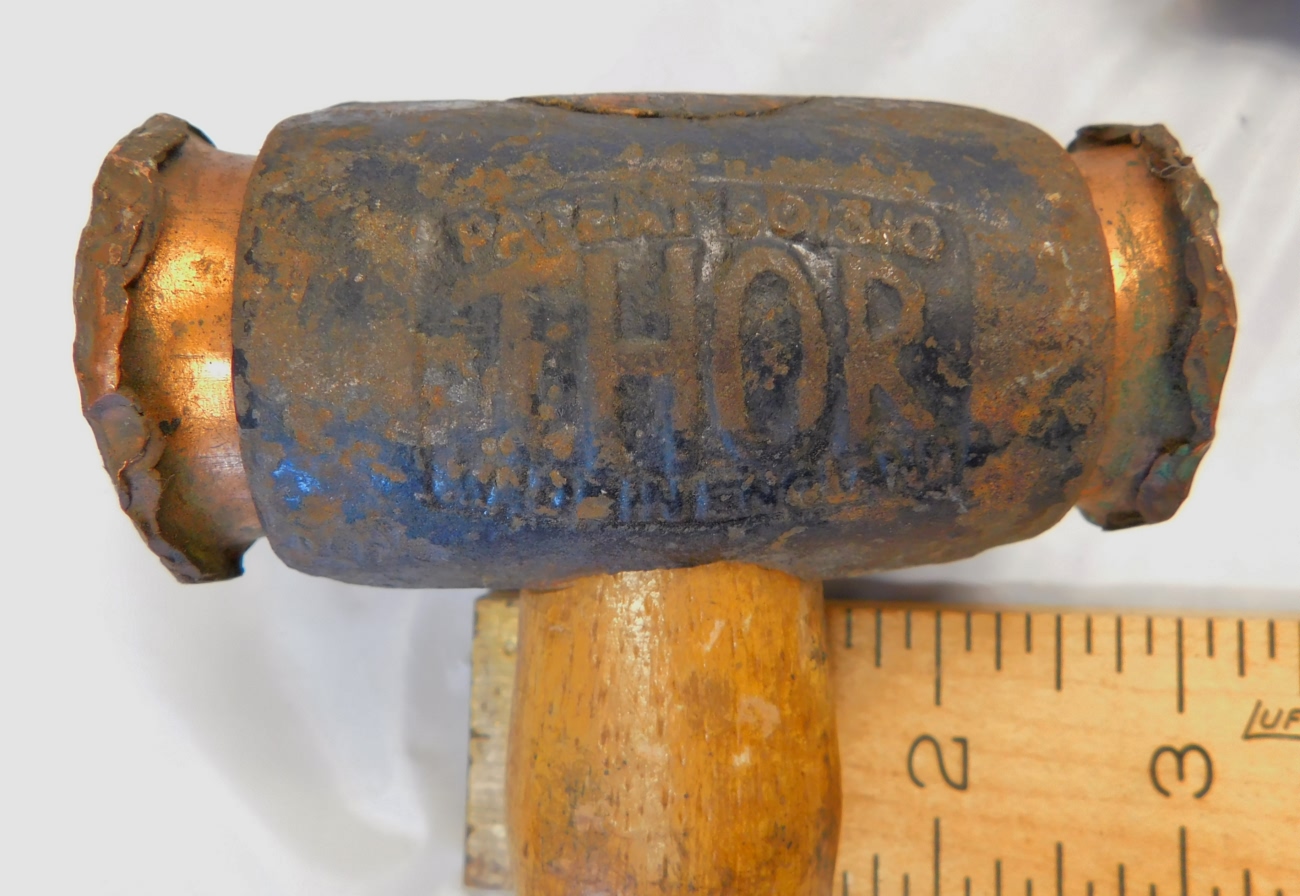

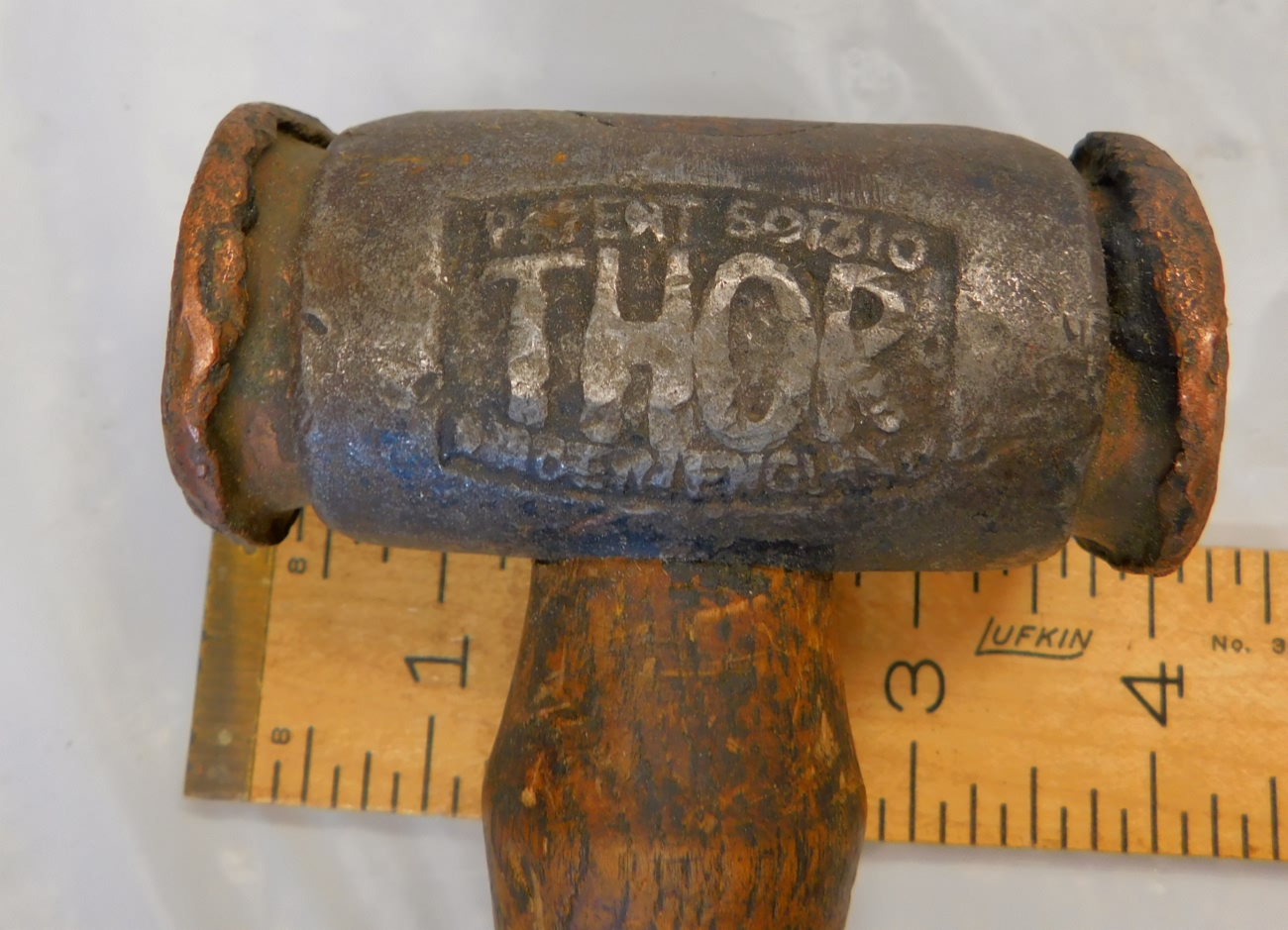

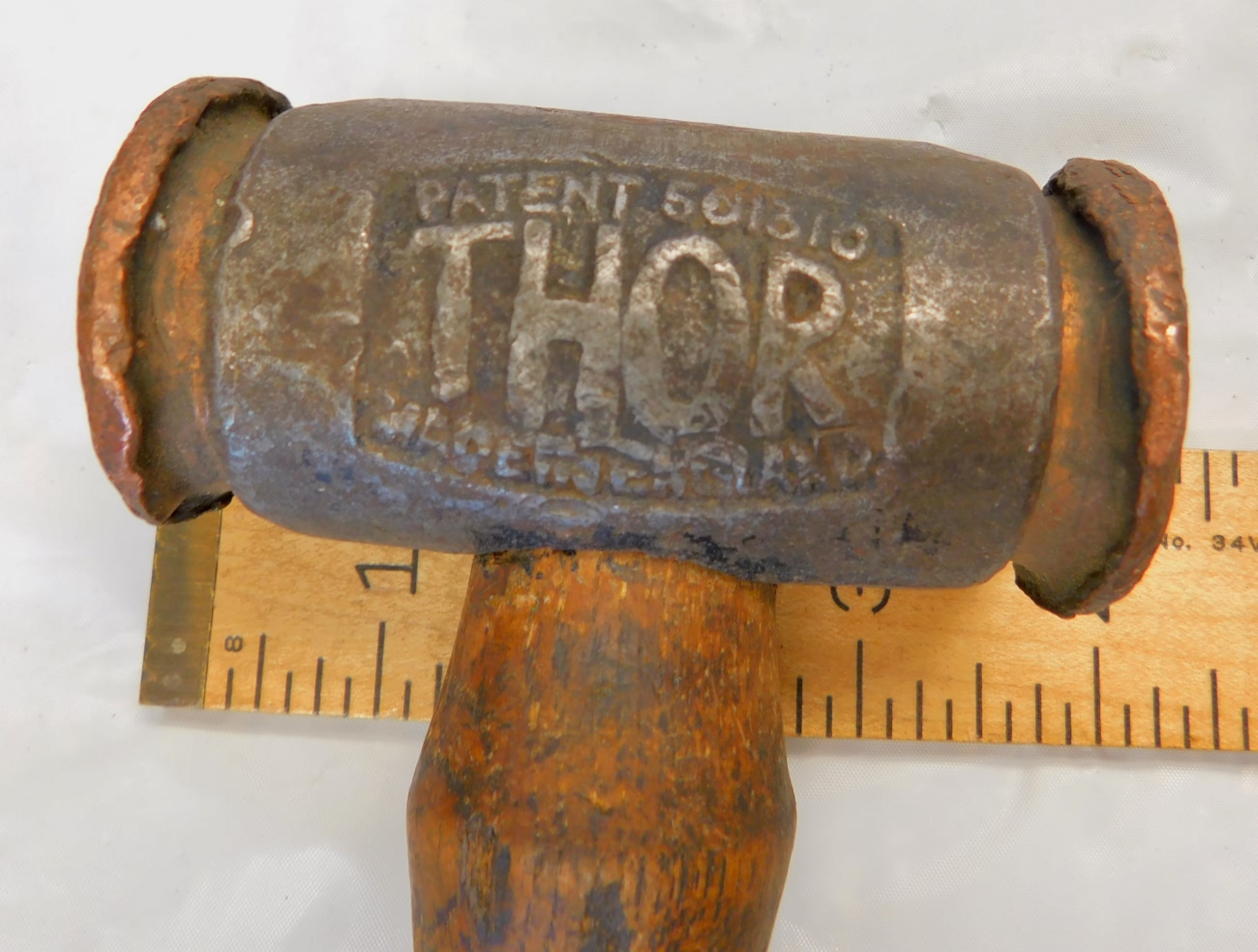

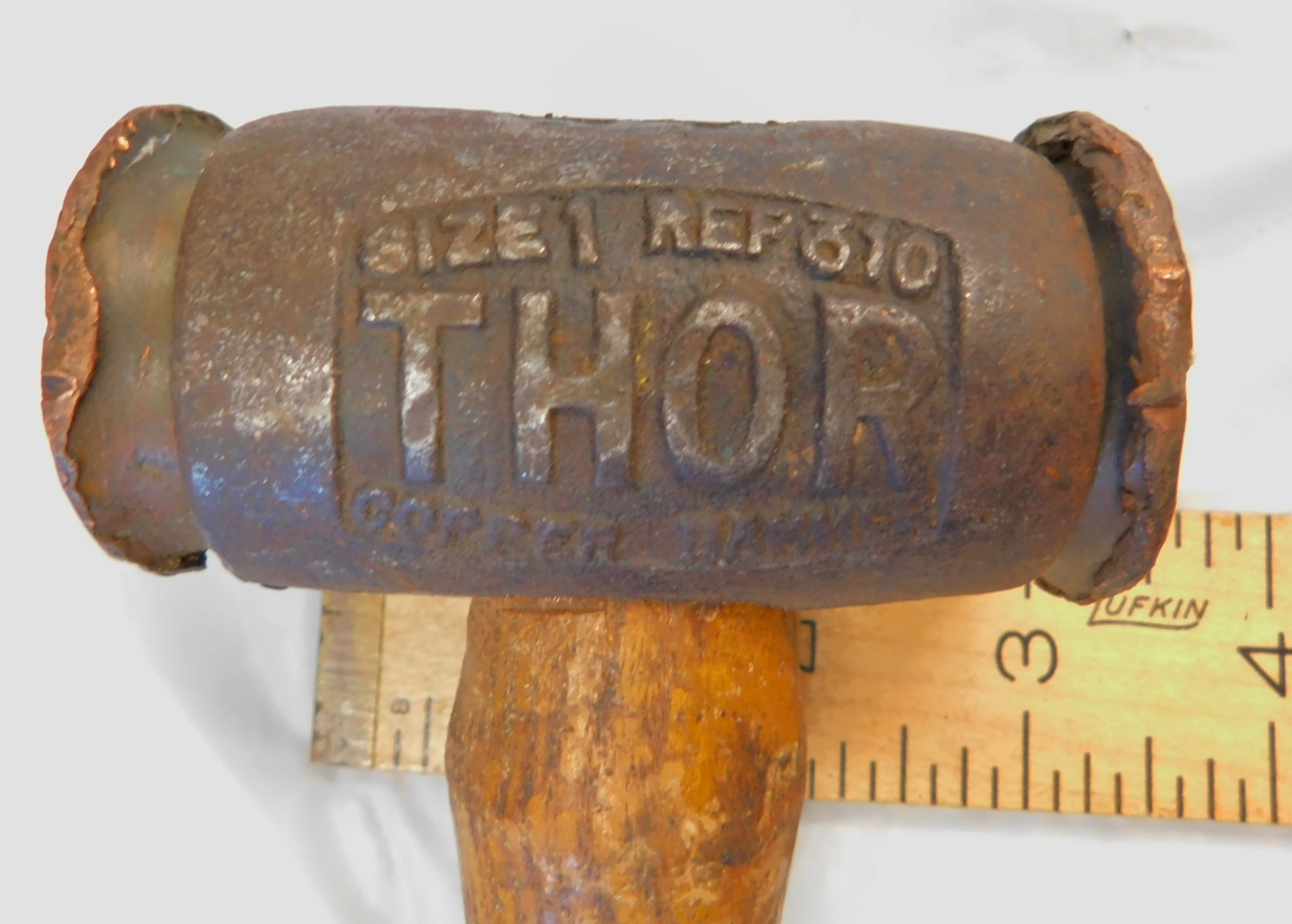

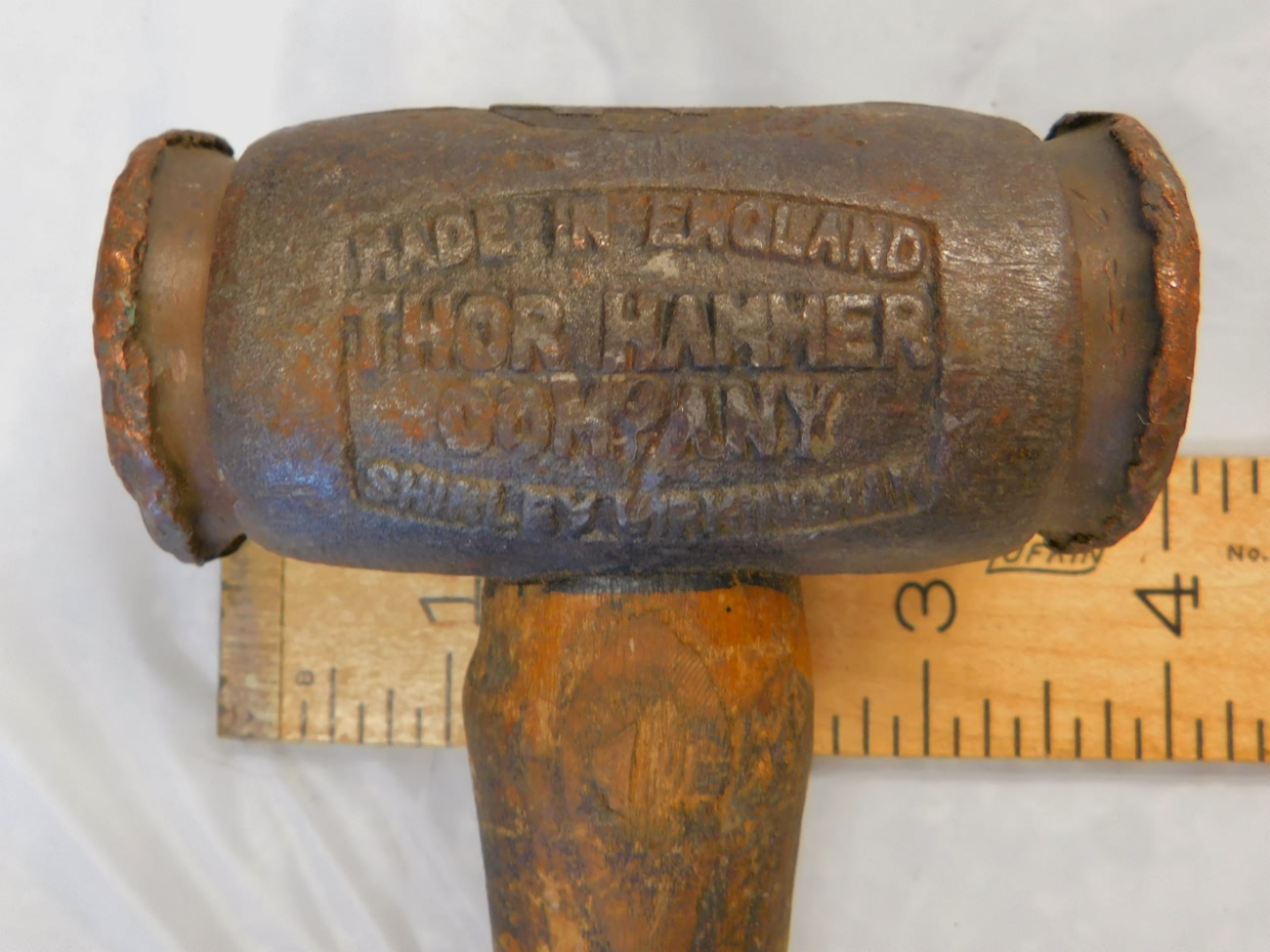

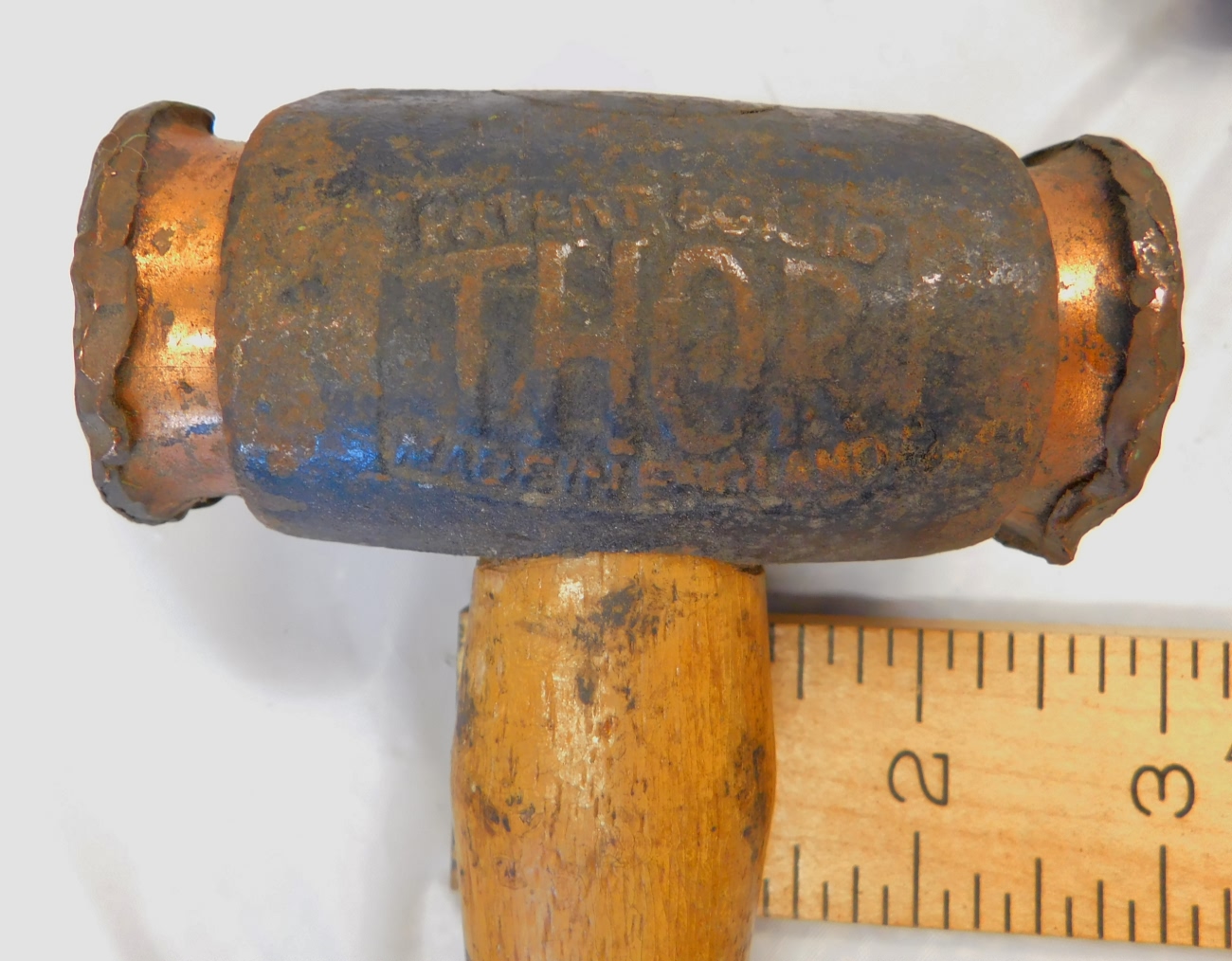

3 Mallets As a lot.  Offered individually below. Very good original condition.

Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic

SAC-3MALLET

Good + . . . . . . $30.00 / Lot   $15.00 each        Bottom SOLD!!

To Order Email: patentedantiques@gmail.com

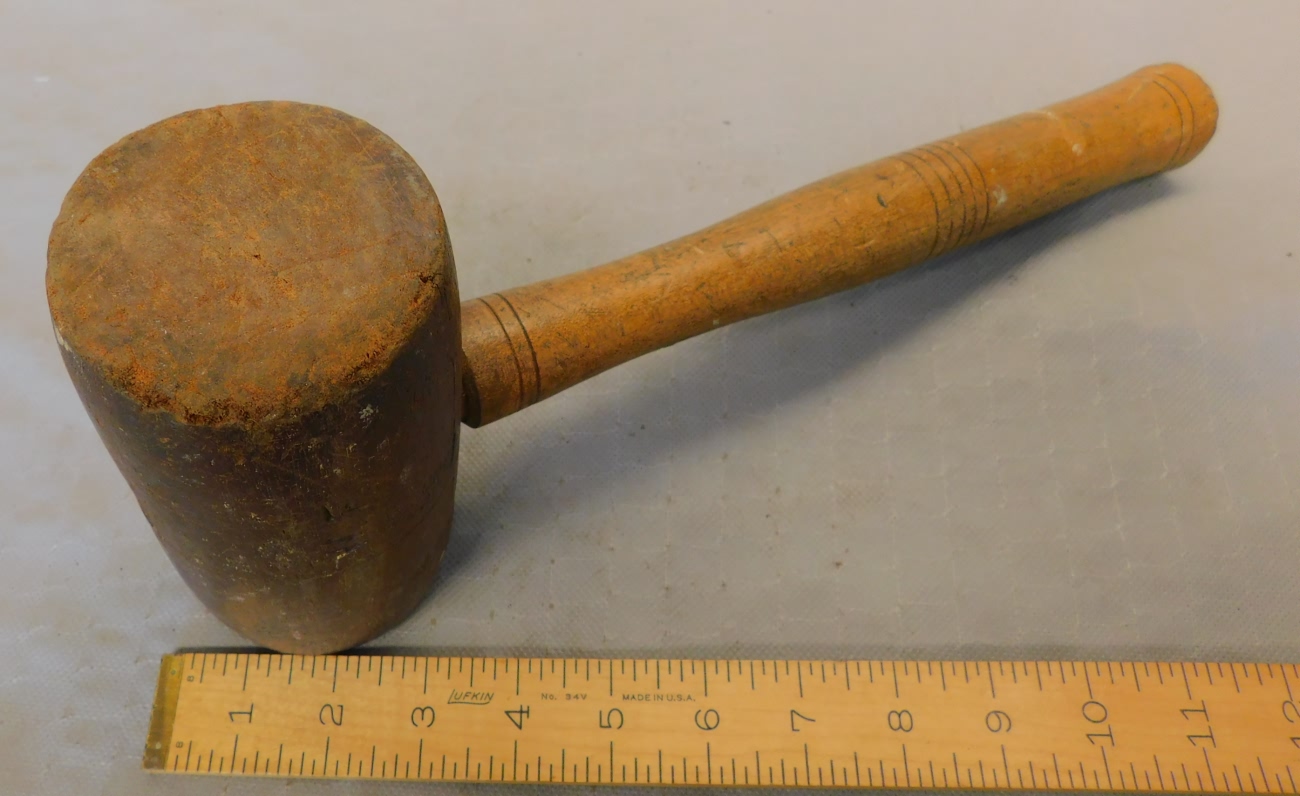

Wood Woodworker / Carver / Woodworking Wooden Mallet Not sure what kind of wood the dark colored head is, but it is not all beat up or damaged. The handle is nicely turned. Overall a nice useable condition mallet.

Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic

AMN-MALLET

Good + . . . . . . $15.00

To Order Email: patentedantiques@gmail.com

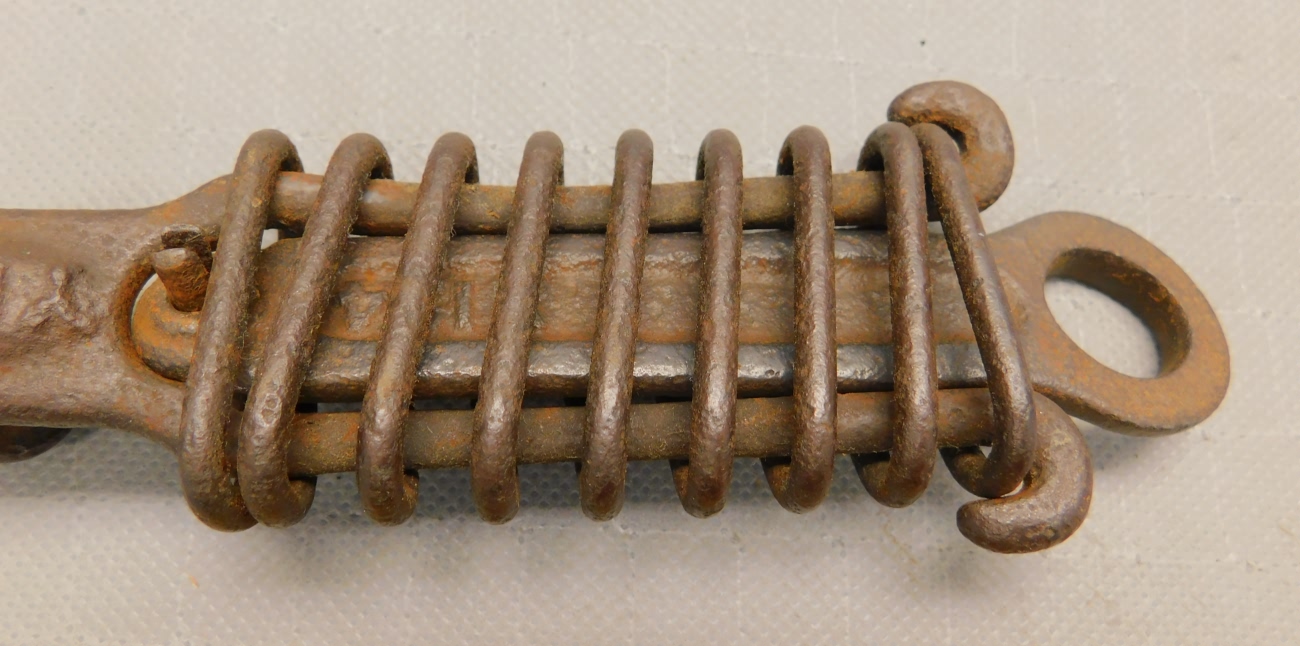

What's-it? Spring Loaded Implement Brake / Clutch Part?   I have never had nor recall having seen this before.  It has some numbers in the casting.  Could be a part to some farm implement, or a fence stretcher / tensioner of some sort, or - - - ???

Click for Pic            Click for Pic            Click for Pic

PST-FENCE-2

Good . . . . . $10.00

To Order Email: patentedantiques@gmail.com

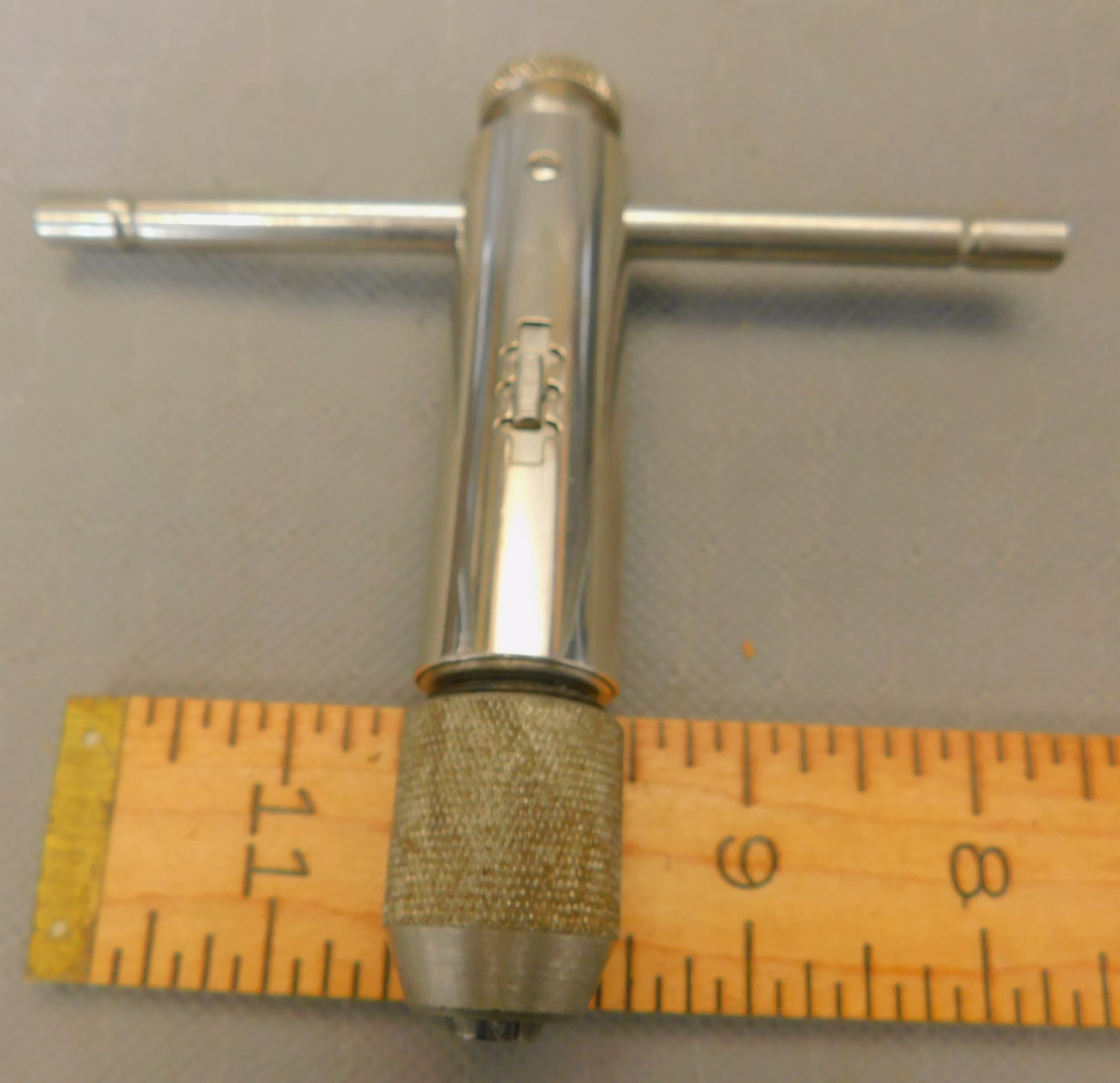

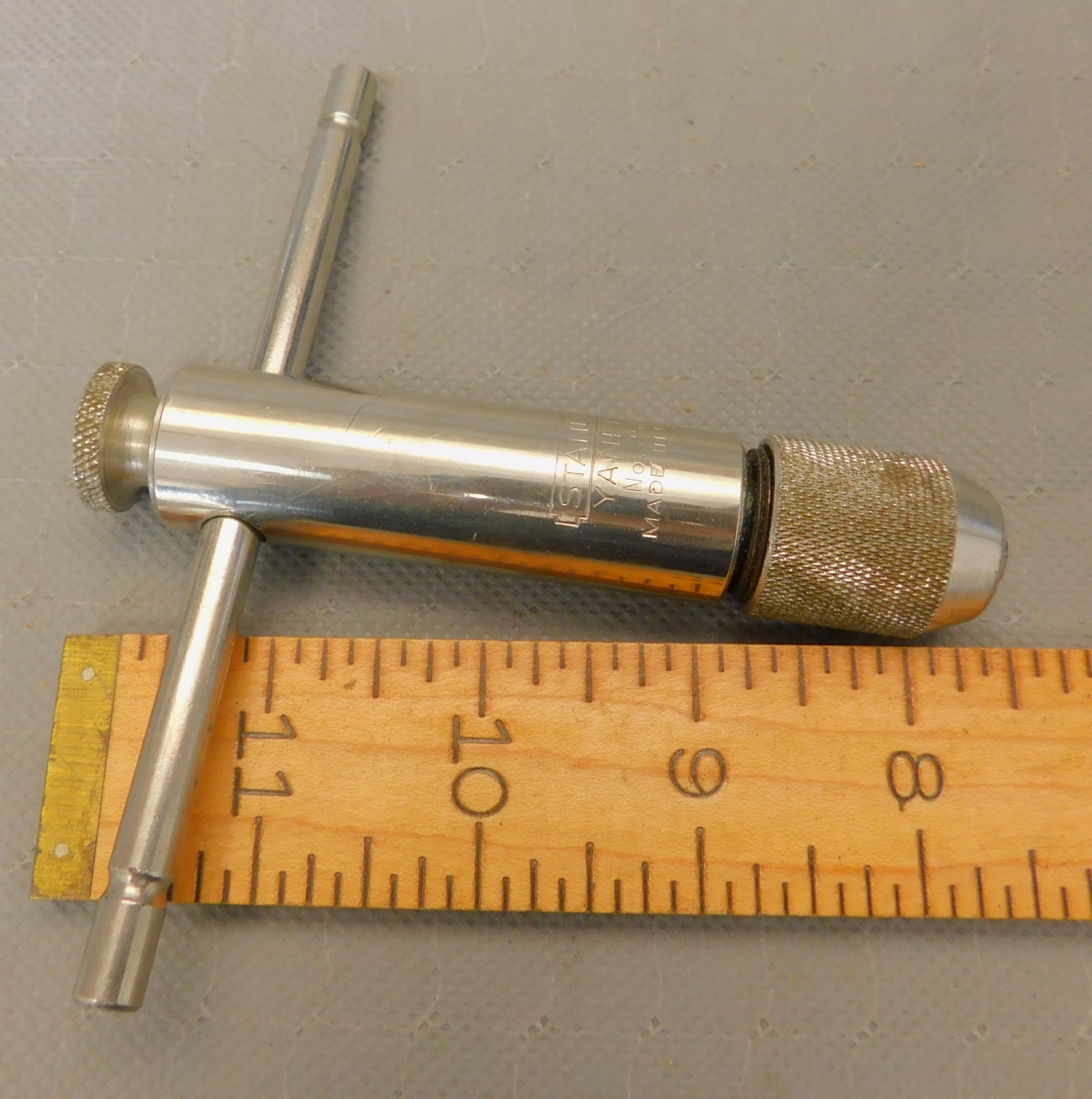

Stanley "Yankee" No. 251A Ratchet Tap Wrench Minty nice.

Click For Pic            Click For Pic

JF-YANK-TAP-2

Fine . . . . . . $15.00

To Order Email: patentedantiques@gmail.com

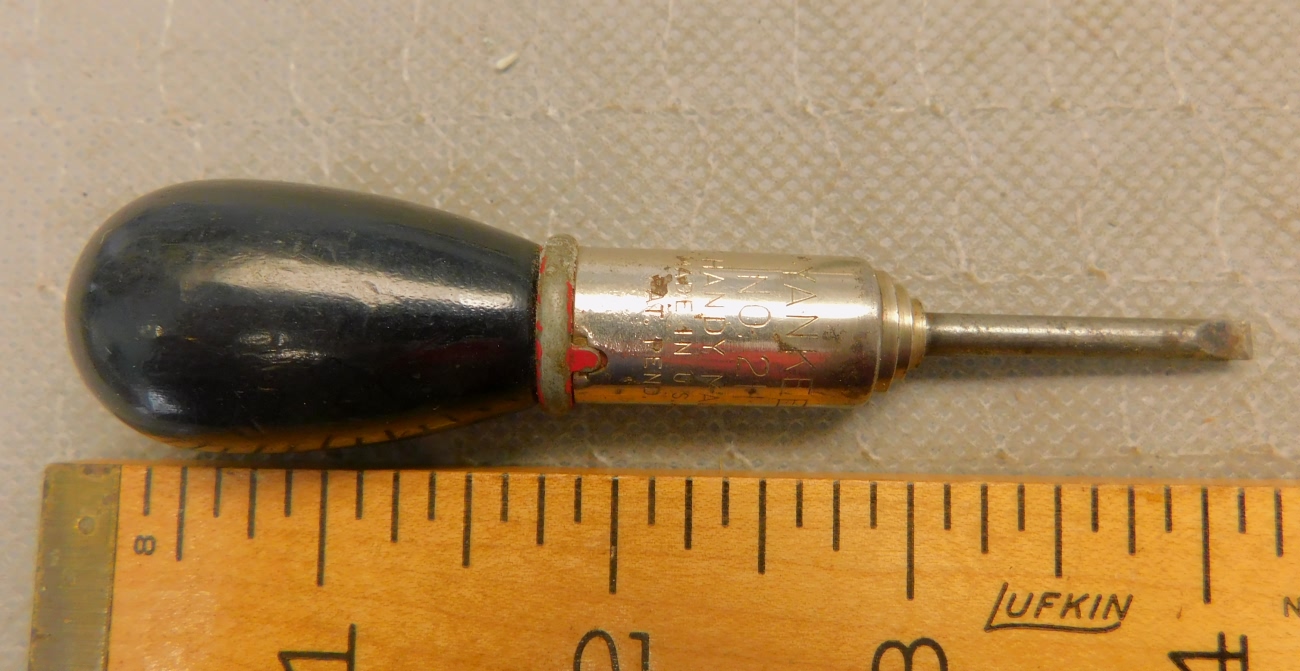

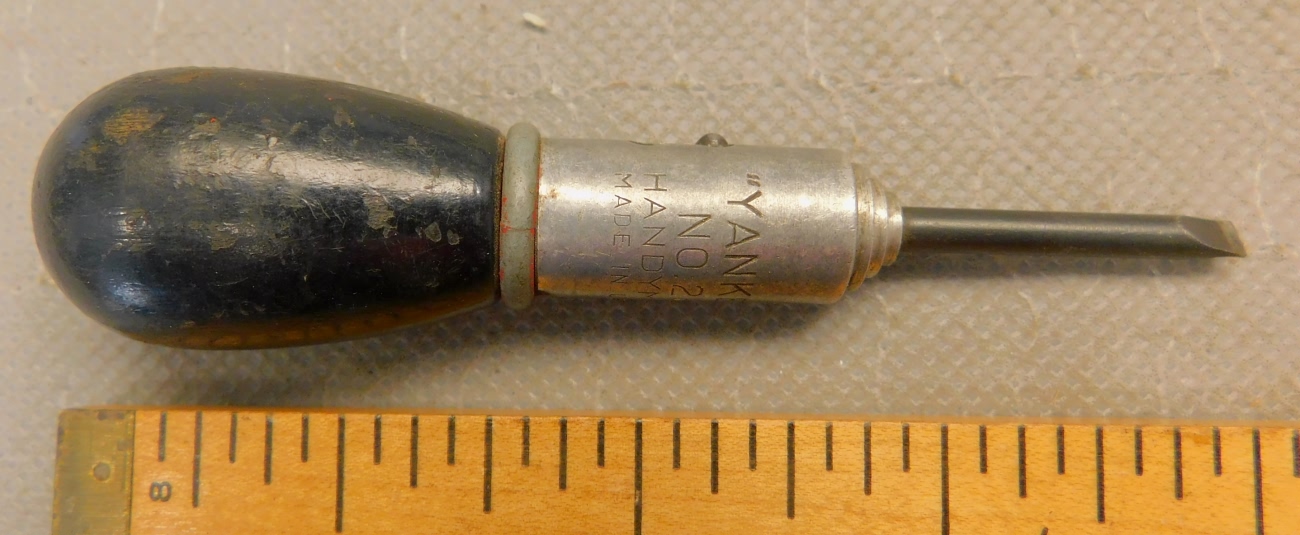

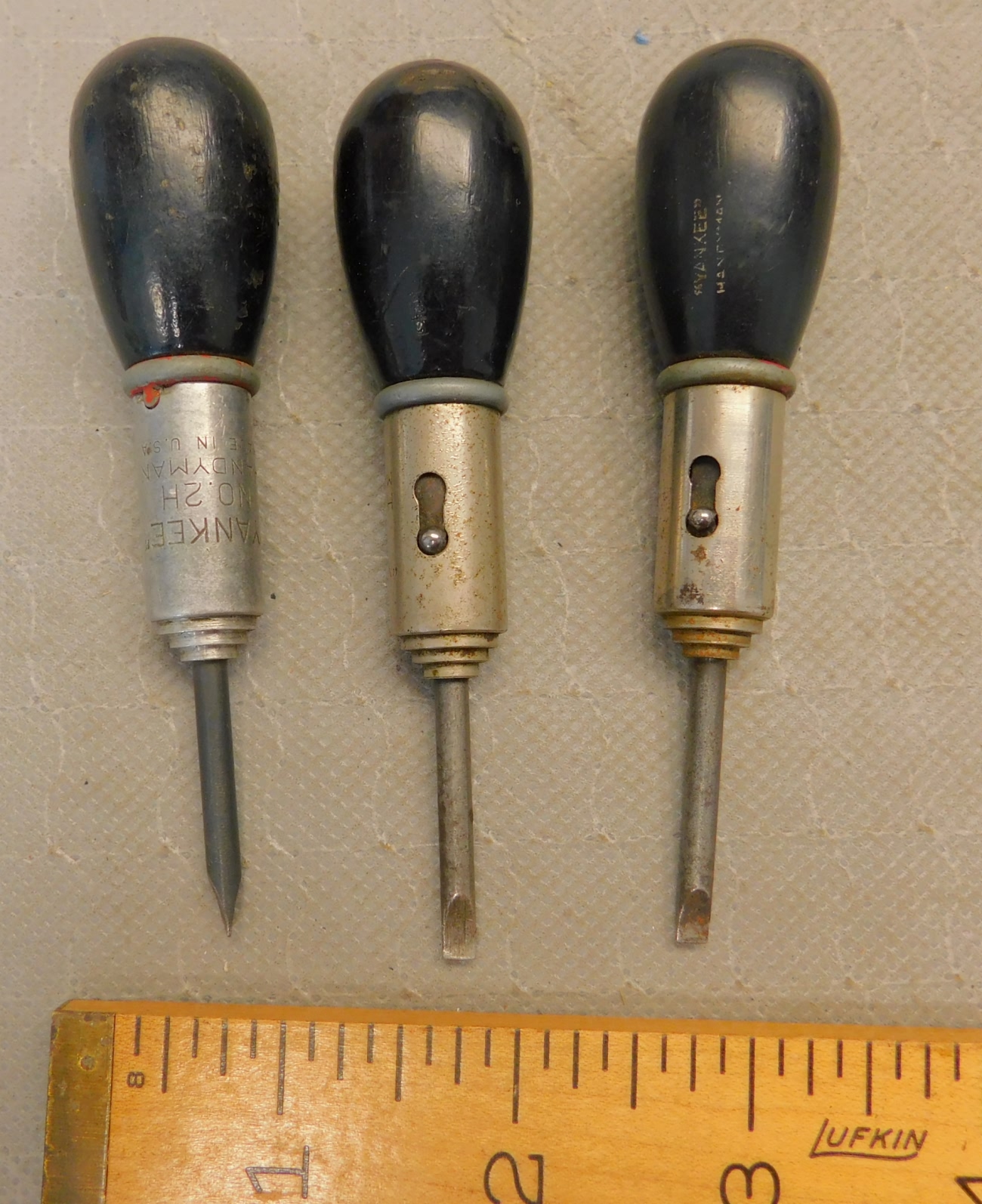

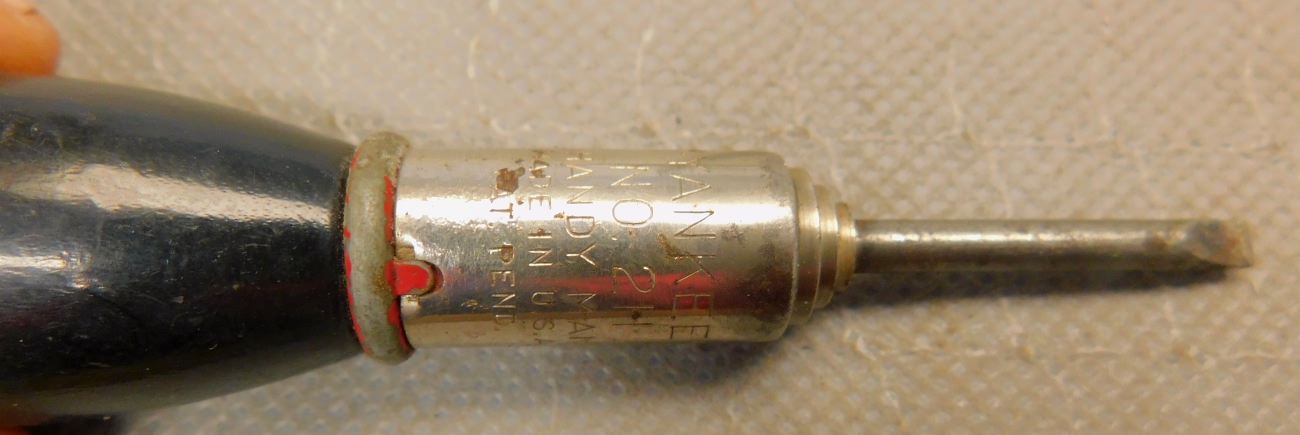

Stanley Handy Man / Yankee No 2H 4" Ratcheting Screwdrivers These 3 Stanley Handy Man / Yankee No 2H 4" Ratcheting Screwdrivers all work properly. All have good tips. Handy little user tools.

Click For Pic            Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic            Click For Pic

AMN-3YANK-SCREW

Good + . . . . . . $6.00 Each or $15.00 Lot

To Order Email: patentedantiques@gmail.com

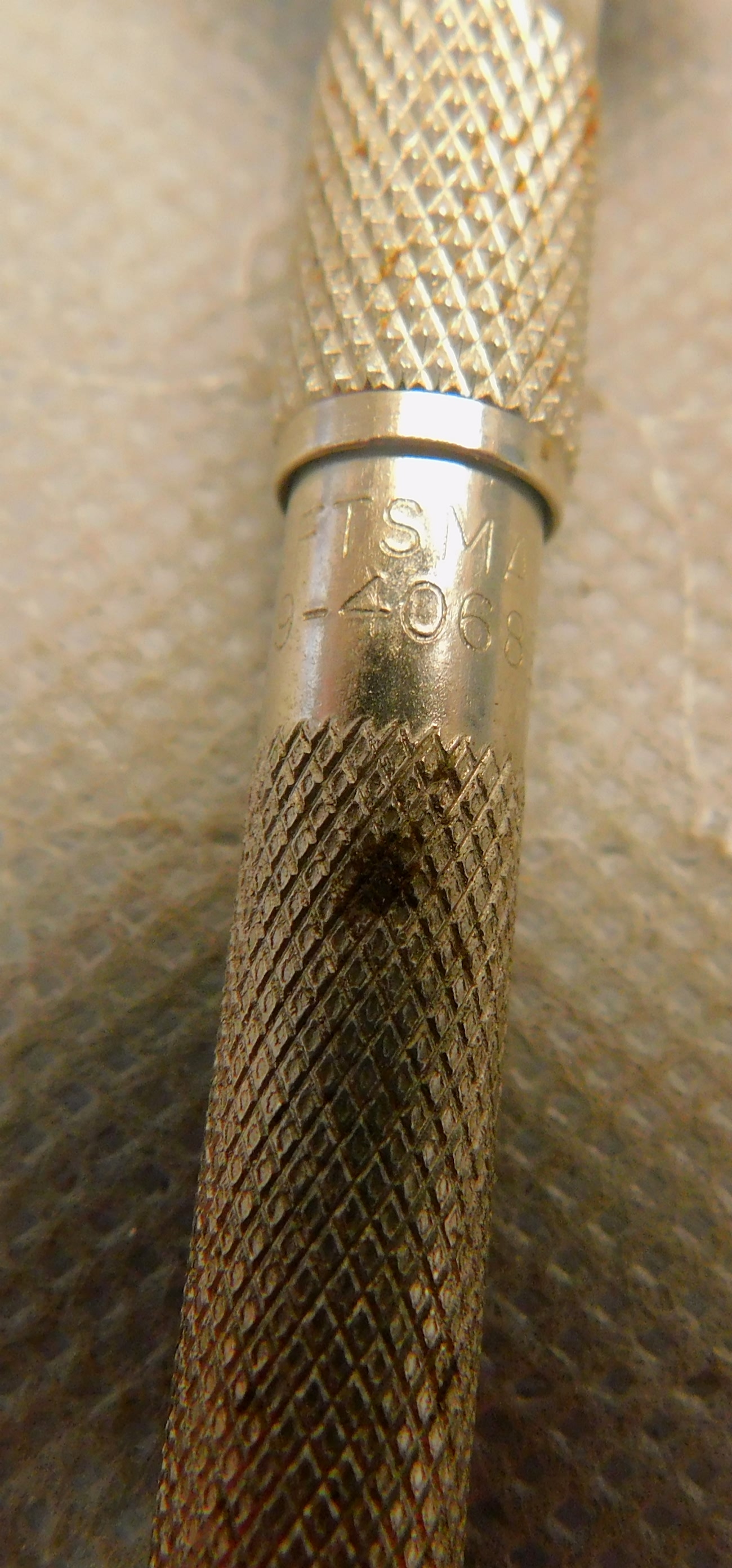

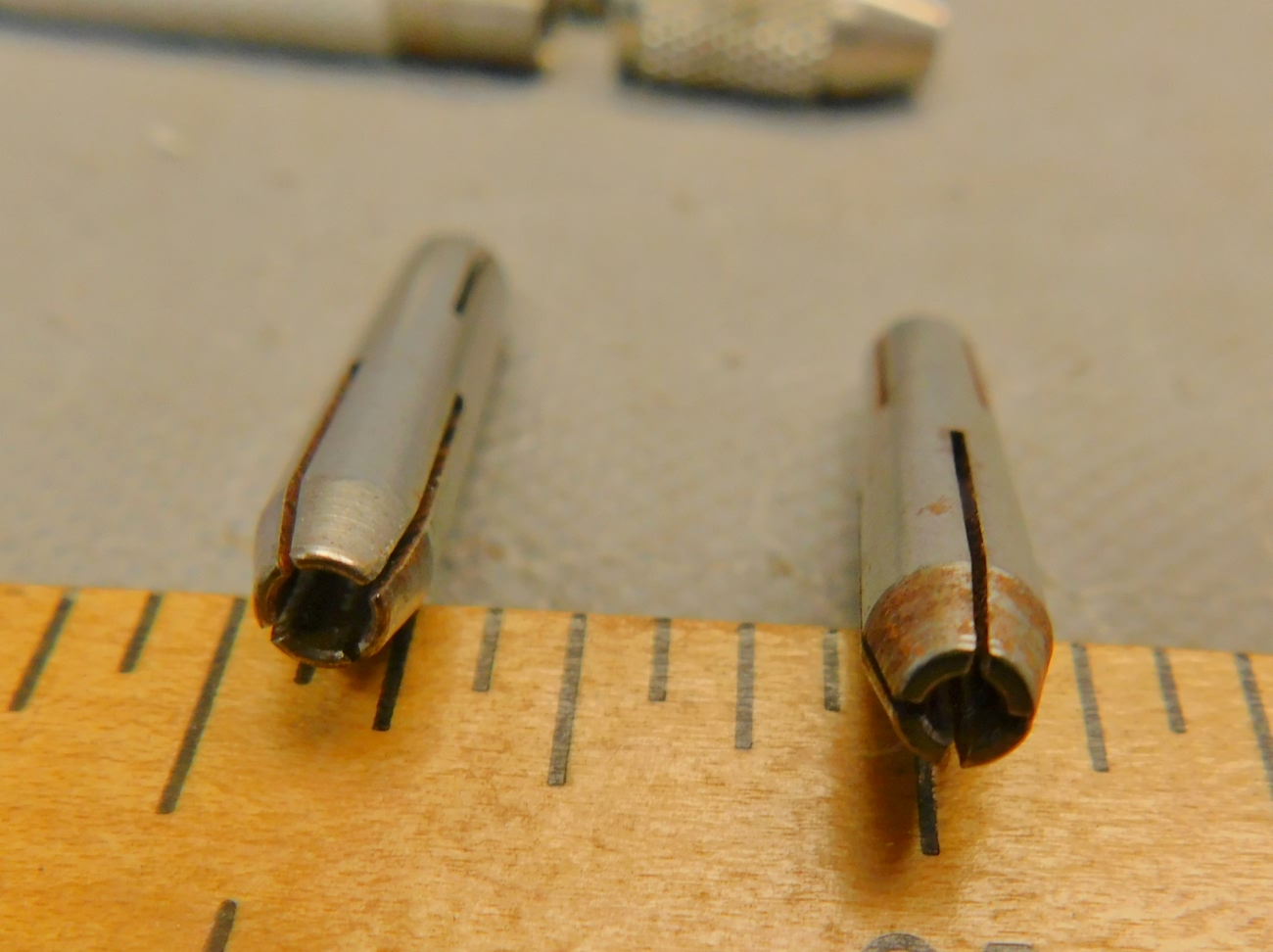

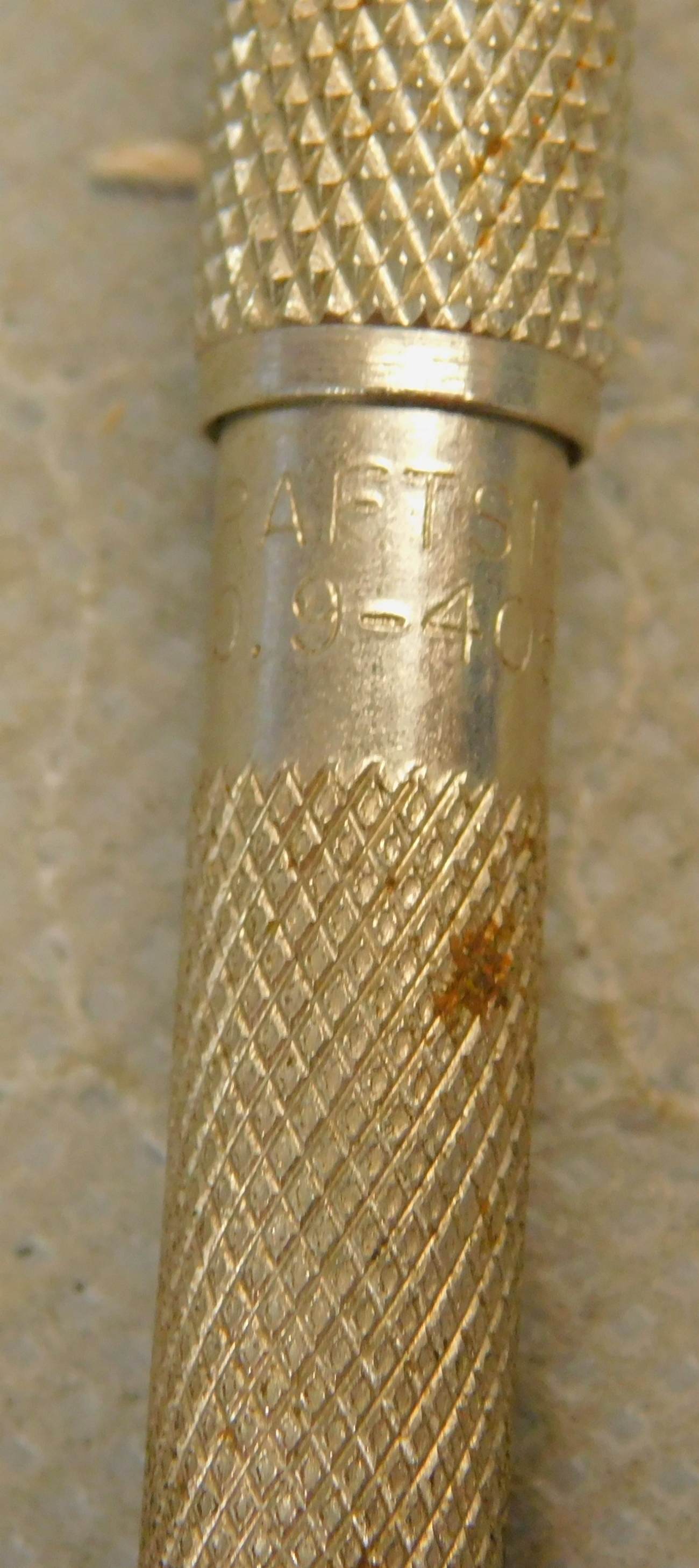

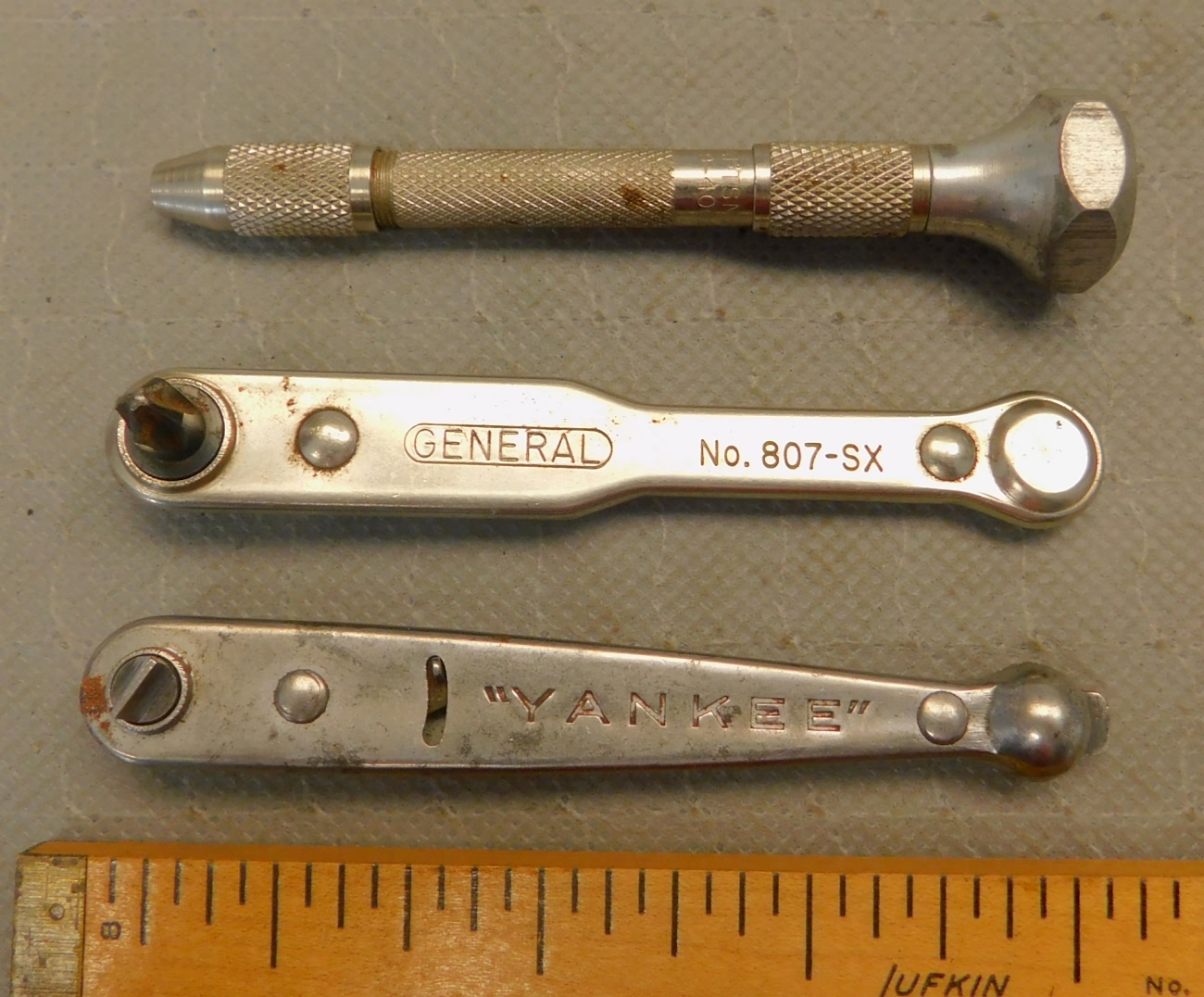

3 Vintage Tools On top is a Craftsman No. 9-40682 Pin Vise with 4 different size jaws, then a General No. 807 Phillips Head Offset Screw Driver and at the bottom a Yankee / North Bros No. 3400 Offset Screwdriver.

Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic            Click For Pic

AMN-3TOLS

Good + . . . . . . $18.00 Lot

To Order Email: patentedantiques@gmail.com

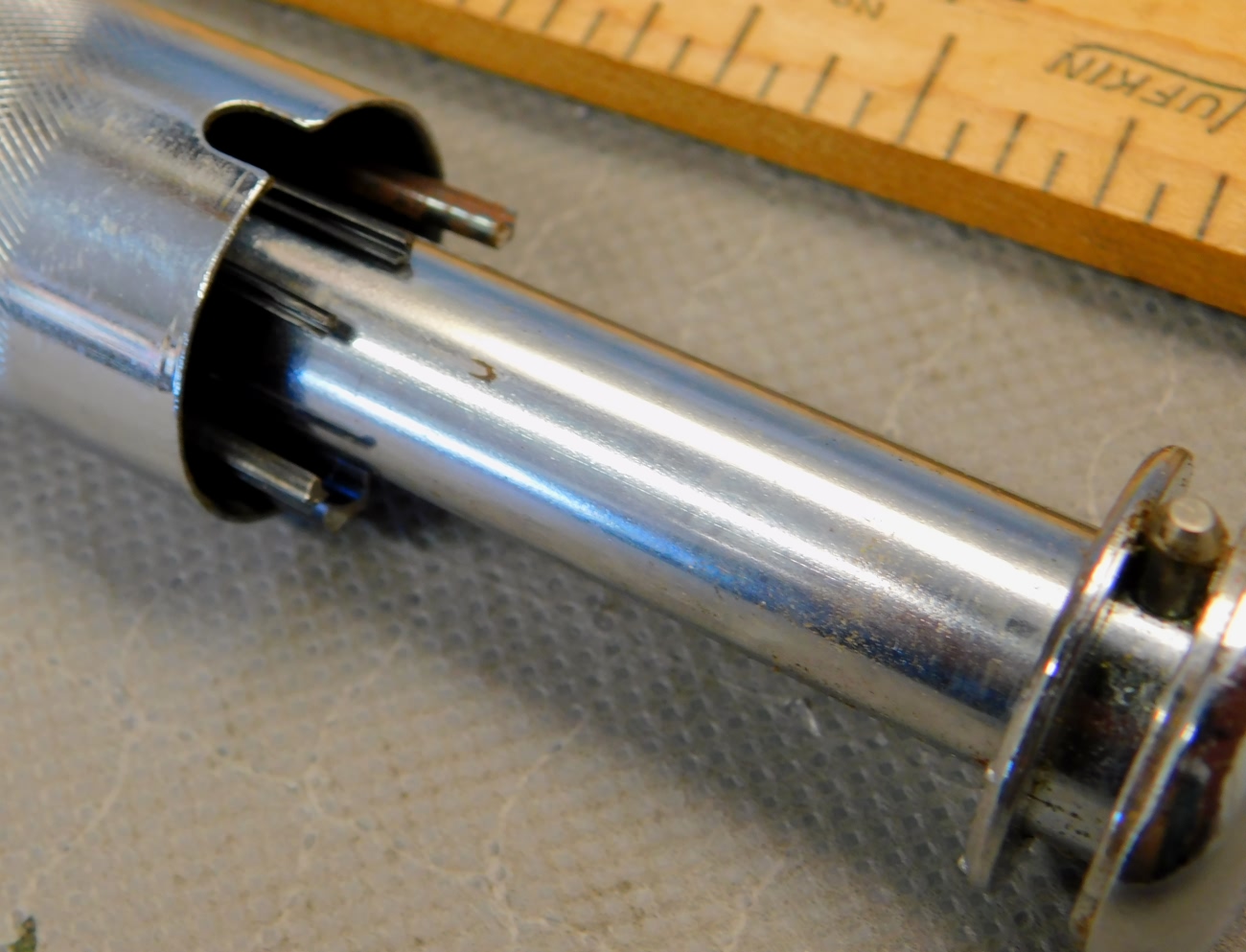

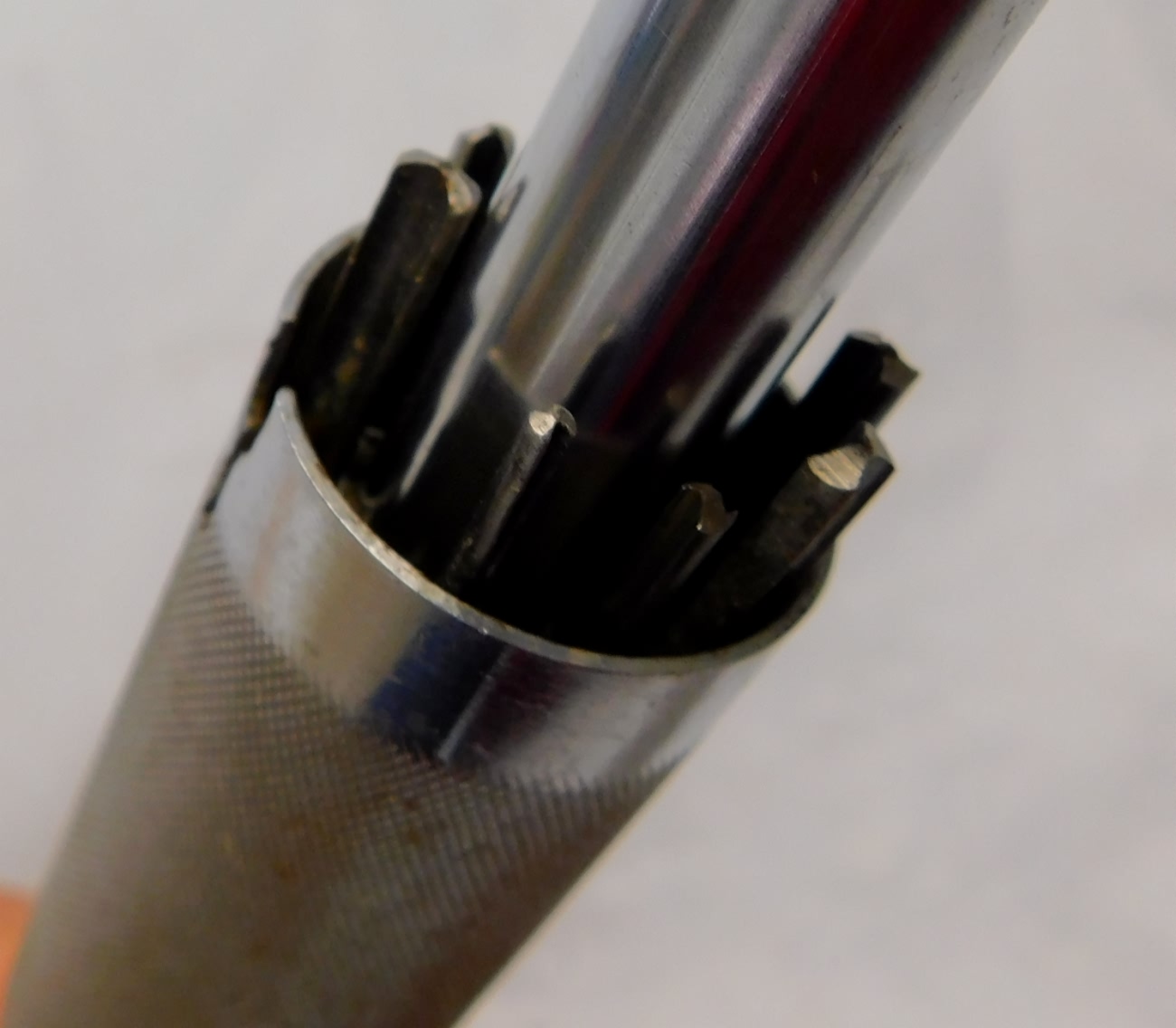

2 Gimicky / Useful User Tools On top is a Silverbroock MFG Co Sock-O-Matic Multi Size Nut Driver that has the ability to fit 4 different size nuts. Below that is a NOS never used fingertip ratchet by the Japanese maker Mitsutomo.  It comes with some bits for use in tight quarters and is housed in a metal box.

click for Pic                click for Pic                click for Pic

LCM-2GIM

Fine . . . . . . $12.00 / Lot

To Order Email:  patentedantiques@gmail.com

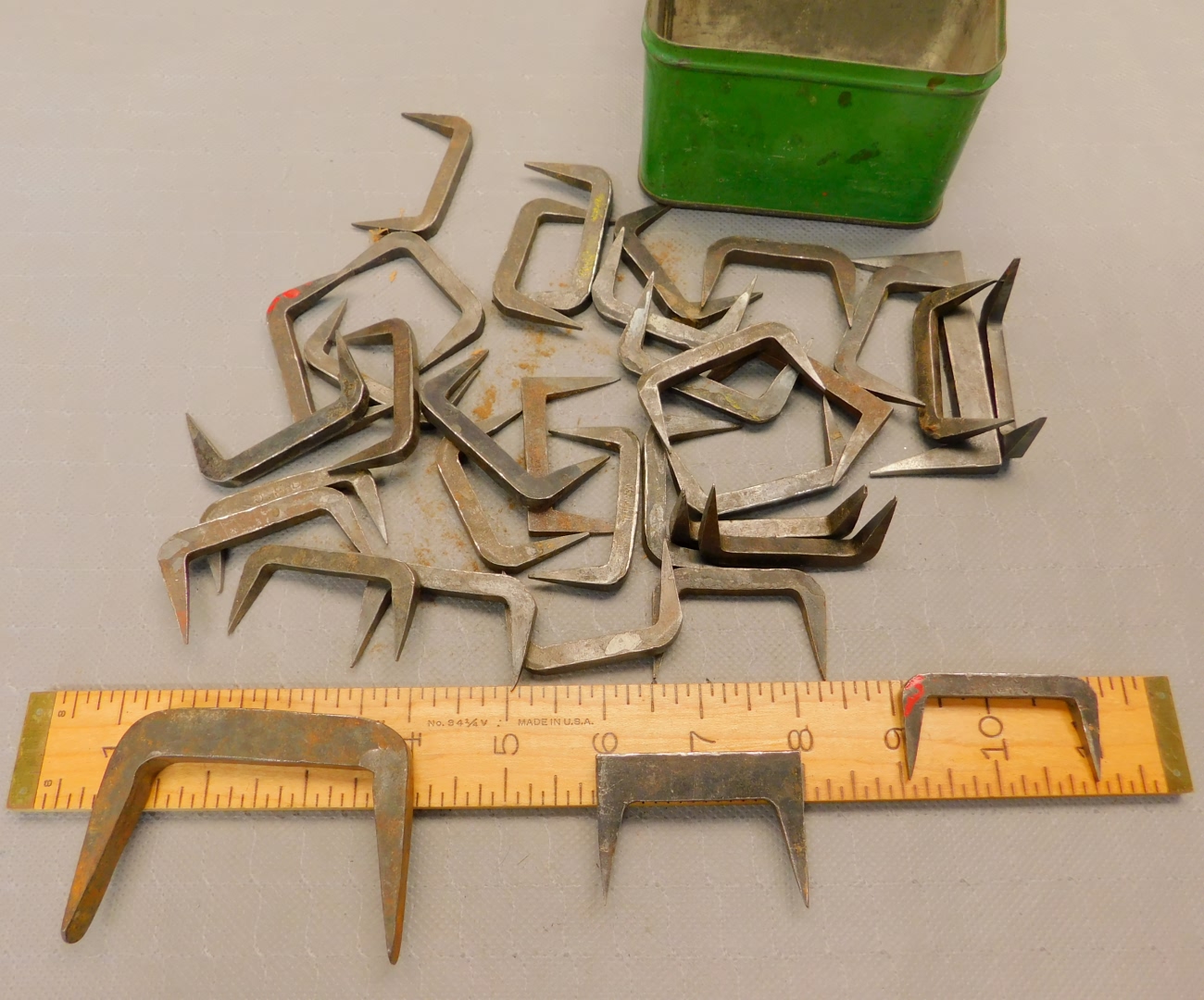

Carpenter Pinch Clamps / Dogs / Gluing Clamps  At least 3 different sizes. Some are marked, many are not. There are 30 or so. $1.00 a piece.

SAC-PINCH

Fine . . . . . . $1.00 Each

To Order Email:  patentedantiques@gmail.com

Jaks - Pen - Nife This unusual leather or wood cutting edge tool with numerous blades or cutters was offered by a fellow named Jack Klempner who hailed from Lakewood Ca. The instructions are marked 1982. Many of the cutters look unused. It looks like a great tool and somewhat more robust than most Xacto knives. There are instructions and a leather strop for sharpening.

Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic

ELI-JAKS

Good + . . . . . $45.00

To Order Email: patentedantiques@gmail.com

4 Bondhus Ball End Hex Screw Drivers There is a 3/8", 5/16ths, 1/4", & 7/32nds

Click for Pic               Click for Pic

ELI-HEX

Good + . . . . . $10.00 / Lot

To Order Email: patentedantiques@gmail.com

Cowles Hardware Company 9" Turnscrew This is marked Cast Steel / Forged on the blade near the handle. The tip is good. These feel good in the hand and are superior to many things seen.

Click for Pic               Click for Pic


Click for Pic               Click for Pic

LCM-TURNSCREW

Good + . . . . . $12.00

To Order Email: patentedantiques@gmail.com

Irwin Perfect Handle Square Shank 9 3/8" Screwdriver This is marked on the square shank. The tip is good and original. I believe the finish is original. These screwdrivers feel good in the hand and are superior to many things offered today.

Click for Pic               Click for Pic               Click for Pic

LCM-TURNSCREW

Good + . . . . . $30.00

To Order Email: patentedantiques@gmail.com

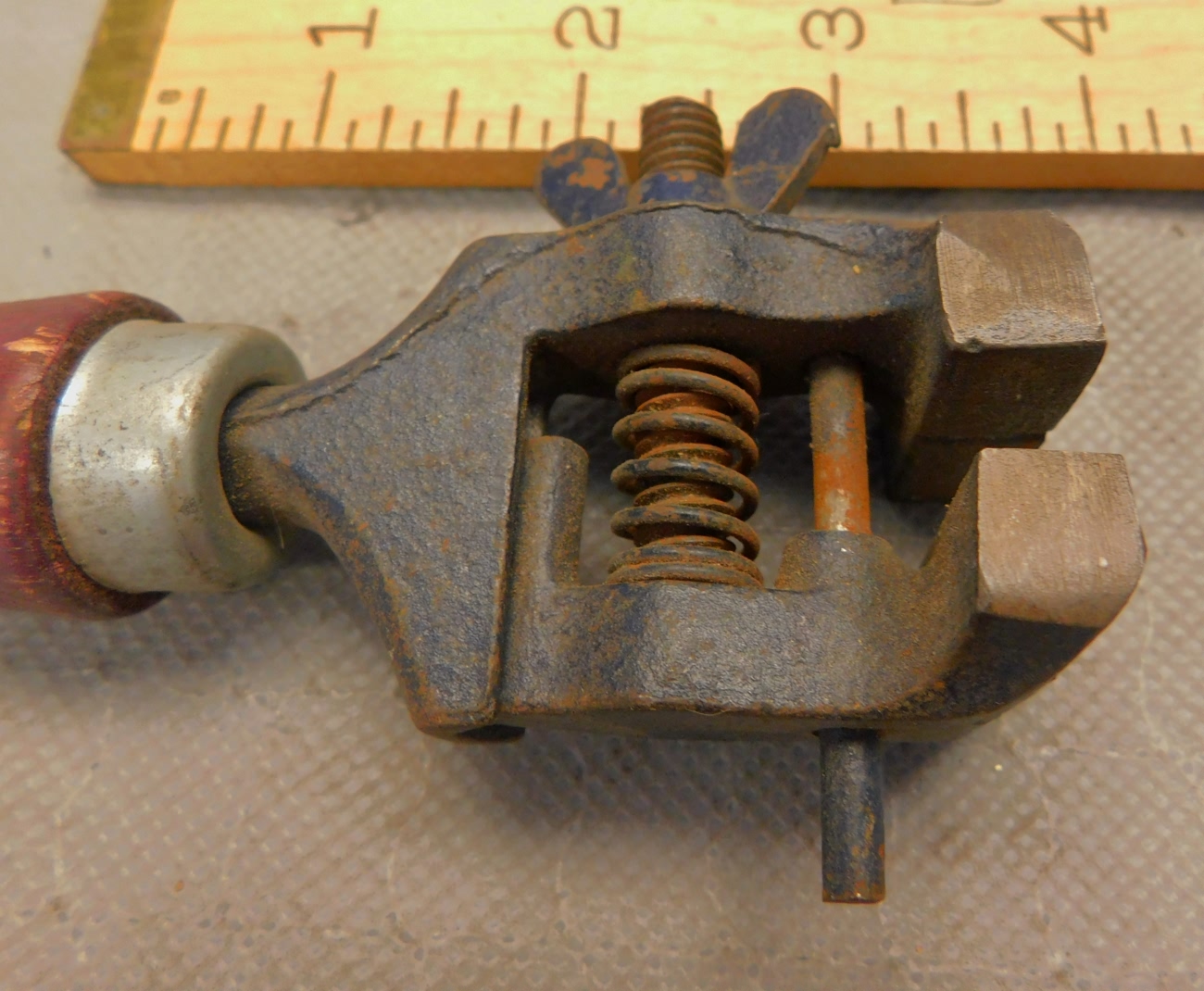

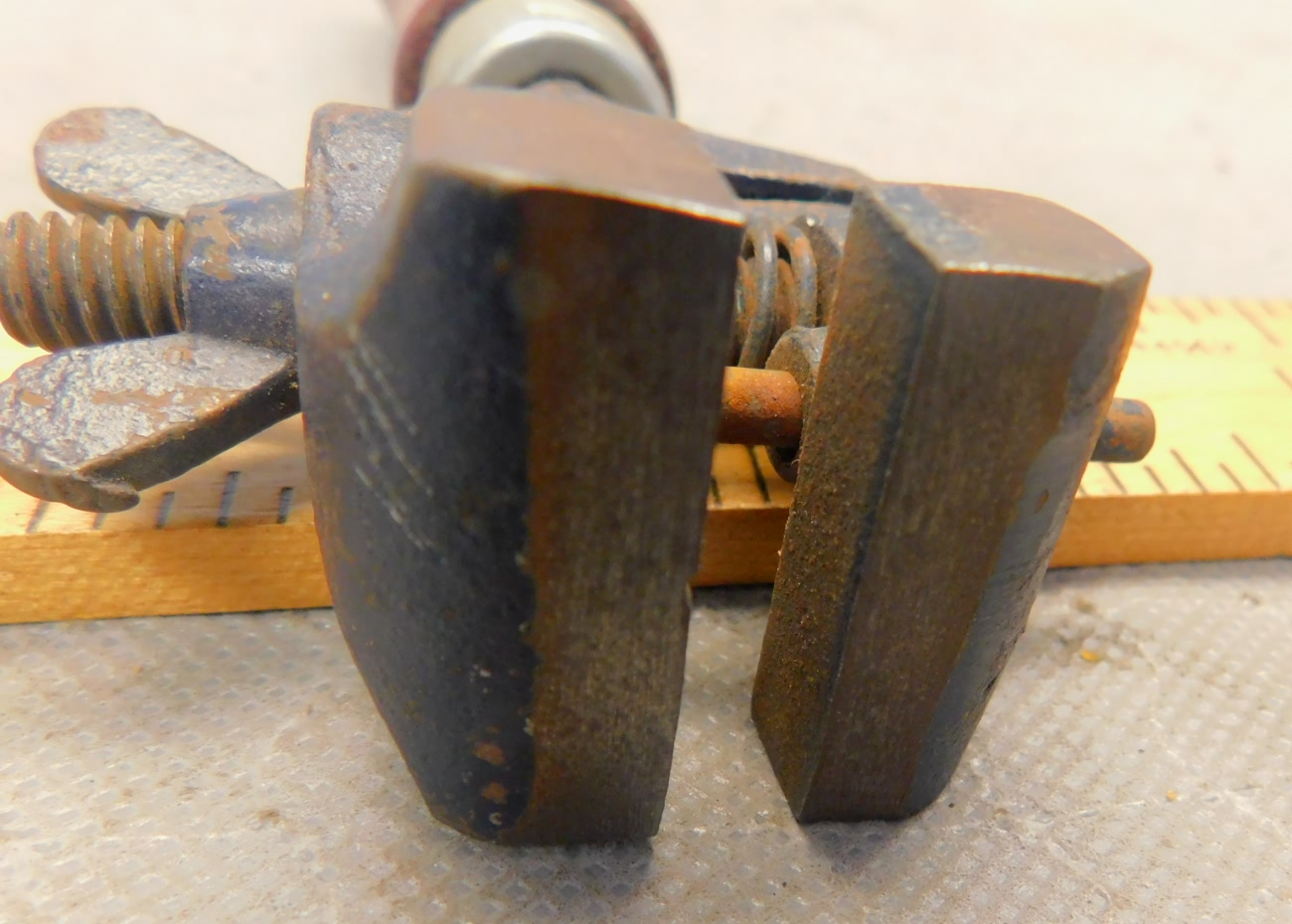

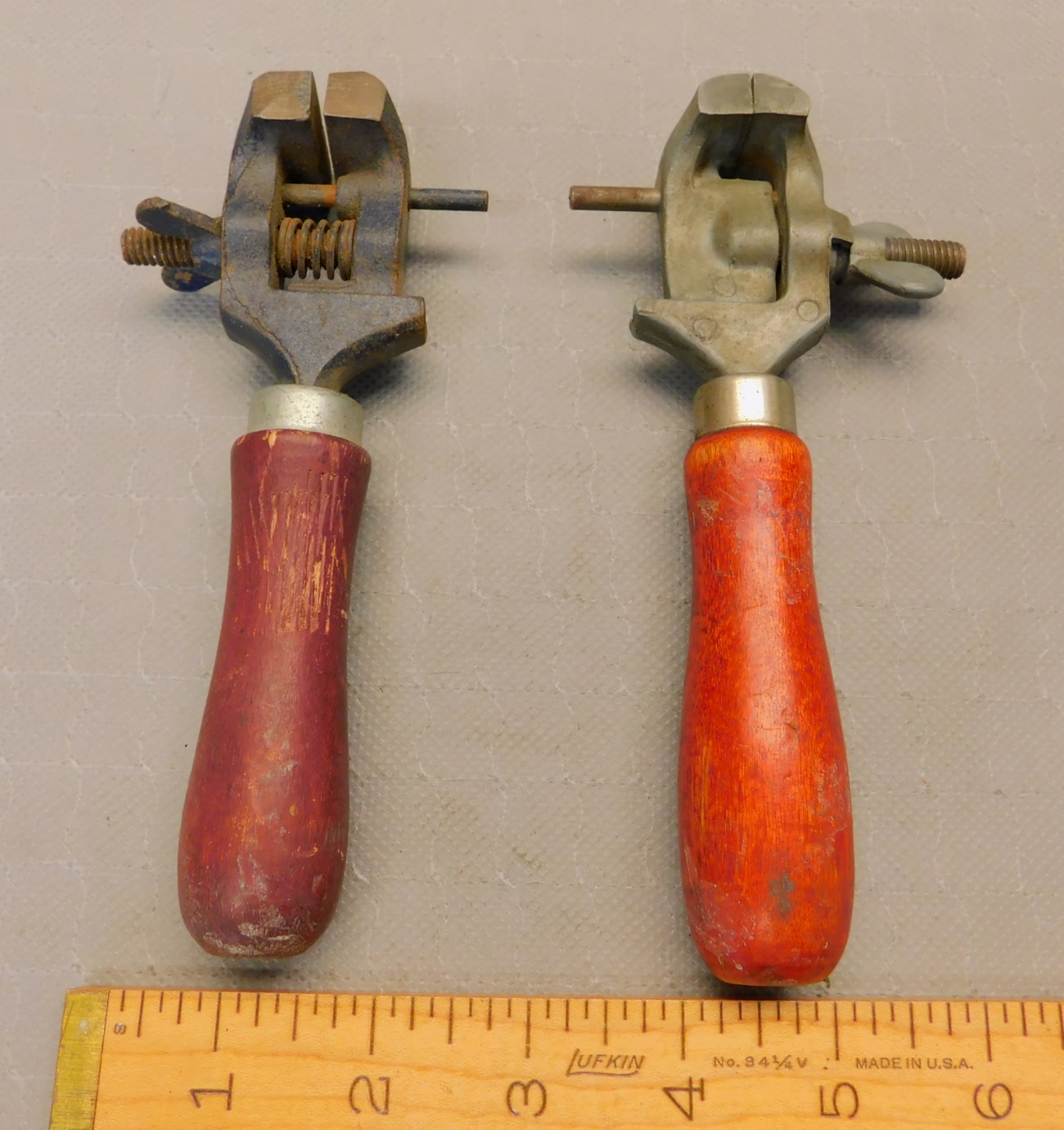

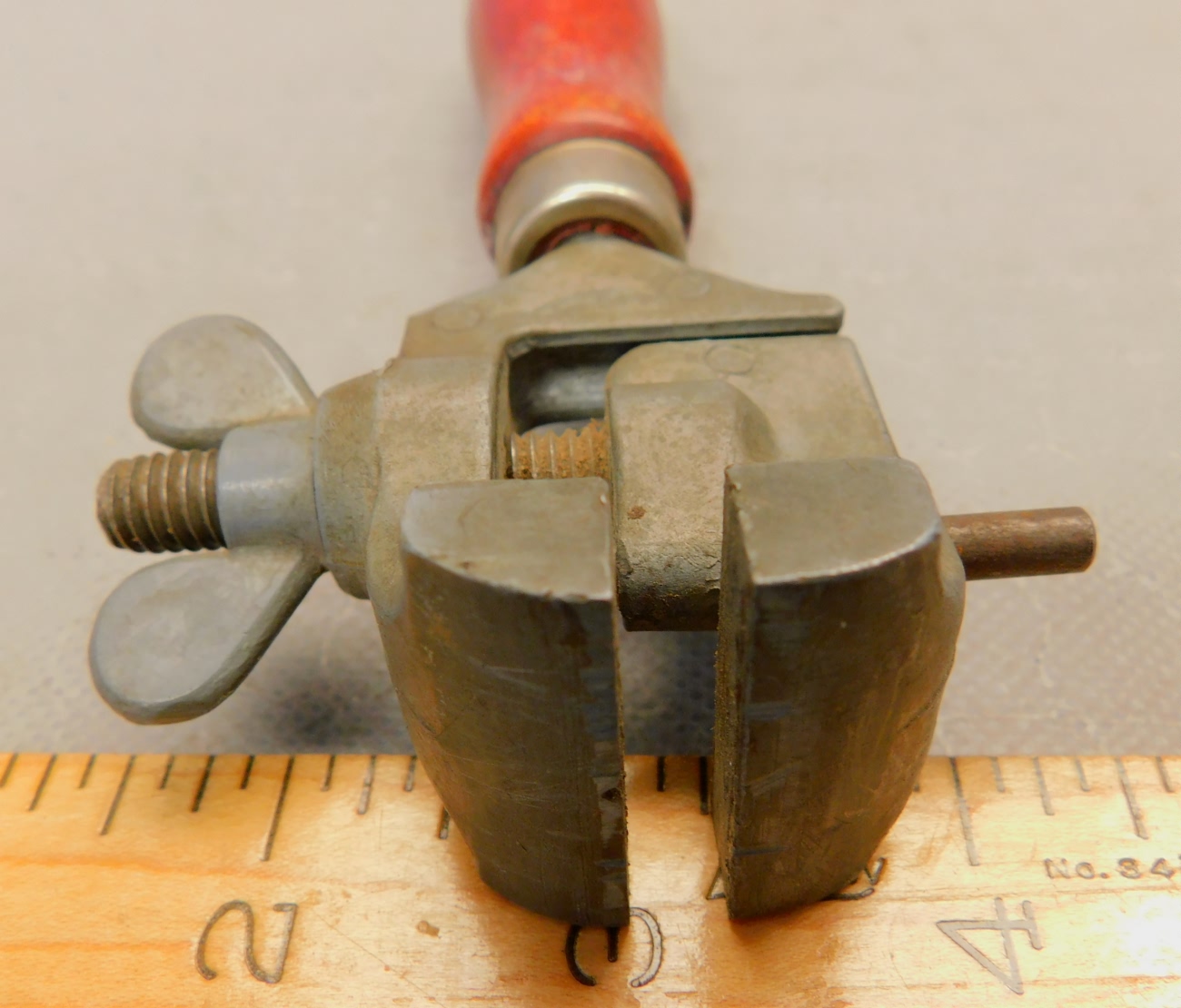

2 Hand Vises The one on the left is iron and marked Japan. The one on the right is marked Made in USA and looks to be some alloy metal other than steel or cast iron. The operation and jaws on both are good. The Japanese one looks to be a nicer piece. These are handy little tools and work well. No need to invest 100 - 200 or more buying a name brand for everyday jobs when these will work just fine.

Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic

SAC-HANDVISE-1                 SAC-HANDVISE-2

Fine . . . . . . 20 .00 / Choice

To Order Email:  patentedantiques@gmail.com

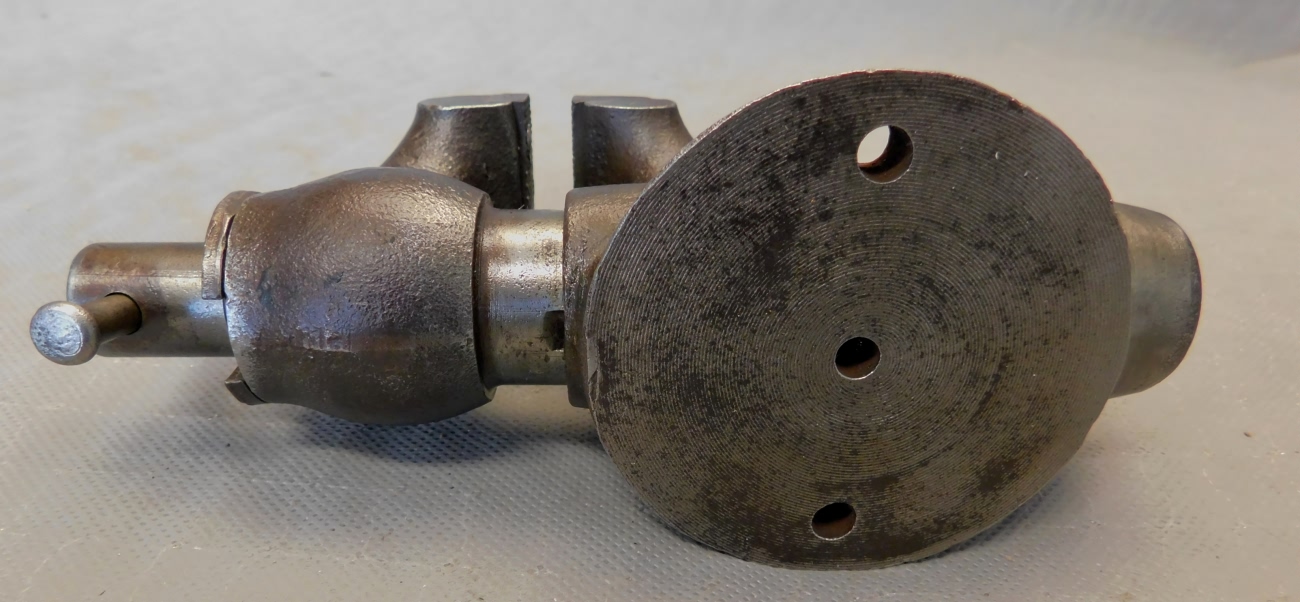

Hall 1879 Patent Adjustable Face Vise The patent # is 219,719. Mr. Hall claimed, and the patent shows, a vise that has adjustable jaw faces.

After describing a typical hand vice in his patent application, Mr. Hall goes on to say he realizes there are other vices with adjustable faces but that his is different. You will have to read how for yourself as it was kind of a word salad. https://patents.google.com/patent/US219719

The datamp site www.datamp.org/patents/advance.php?pn=219719&id=59386&set=9 also has the patent, and a note that the vise is not known to have been produced. I did manage to find another example but no more info on this patented vise.

I did find info indicating Mr. Hall also had a patent for a quick adjust Vise called the Sudden Grip Vise. The patent is US Patent: 140,269. That vise was produced by Parker.

This vise is marked on the head with the patent info. It seems, in the actual construction, Mr. Hill left out making the jaws adjustable and simply went with replaceable jaws.  He accomplished that by machining out the back of the jaw to fit over the round face of the receiver. An action that considerably weakened the actual vise jaw.

When I first saw this vise I thought the round jaw on one side was the patent feature. Later I realized that the vise jaw on one side is missing.  A lot of metal or meat was machined out so it could fit over the roundness of the jaw receiver. That round receiver face was meant to provide the adjustable feature but there is no room for movement in the jaw as the patent shows or calls for. In the finished product the jaws seem are simply removable or replaceable unless I am missing something.

I imagine, by the time the jaw broke on this vise, that probably cost more than the fixed jaw models around, that Mr. Hall was out of business and replacements were not readily available.

A pretty rare piece for the vise collection.

Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic                Click for Pic                Click for Pic

PAST-HALL-VISE

Good . . . . . $245.00

To Order Email: patentedantiques@gmail.com

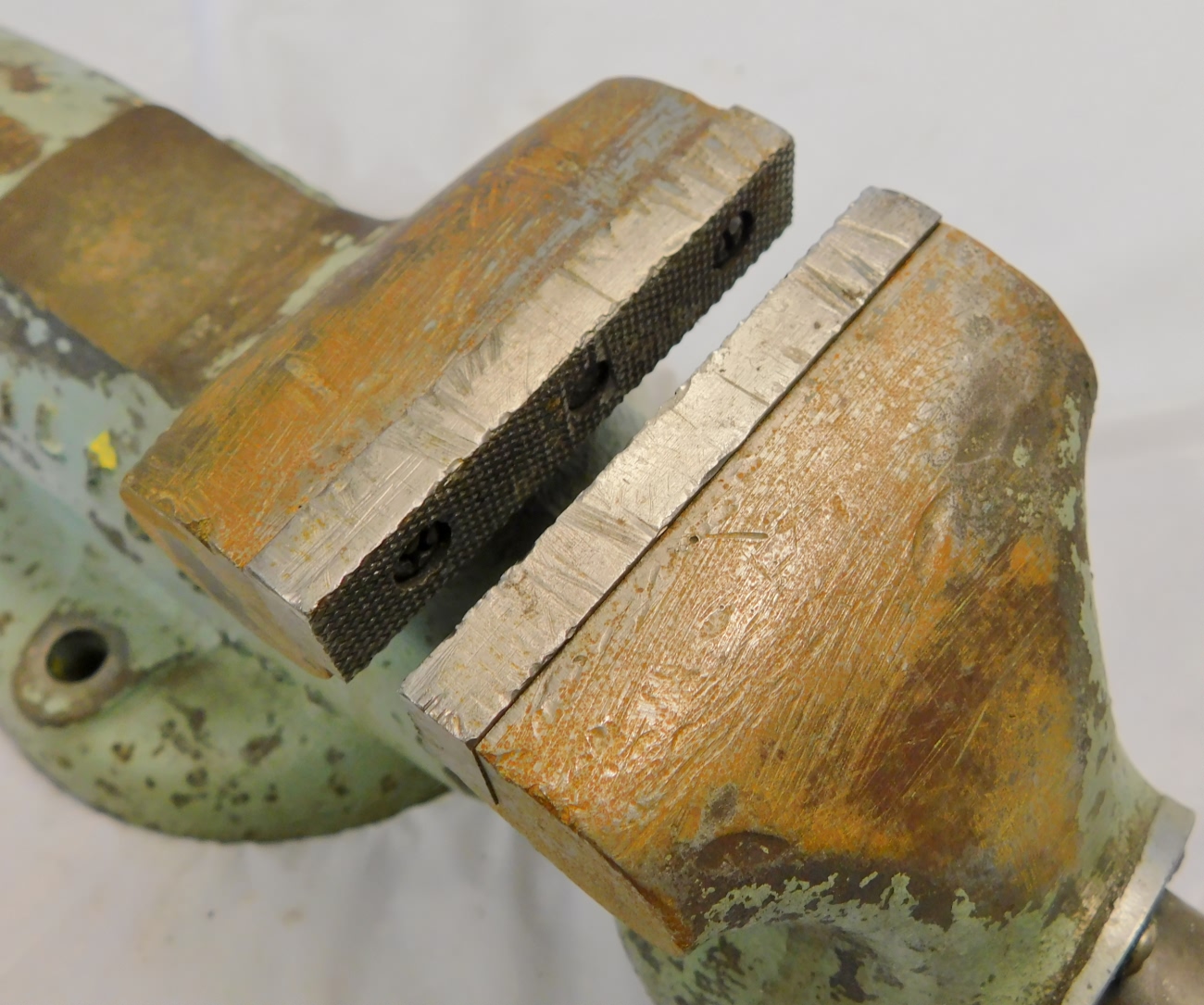

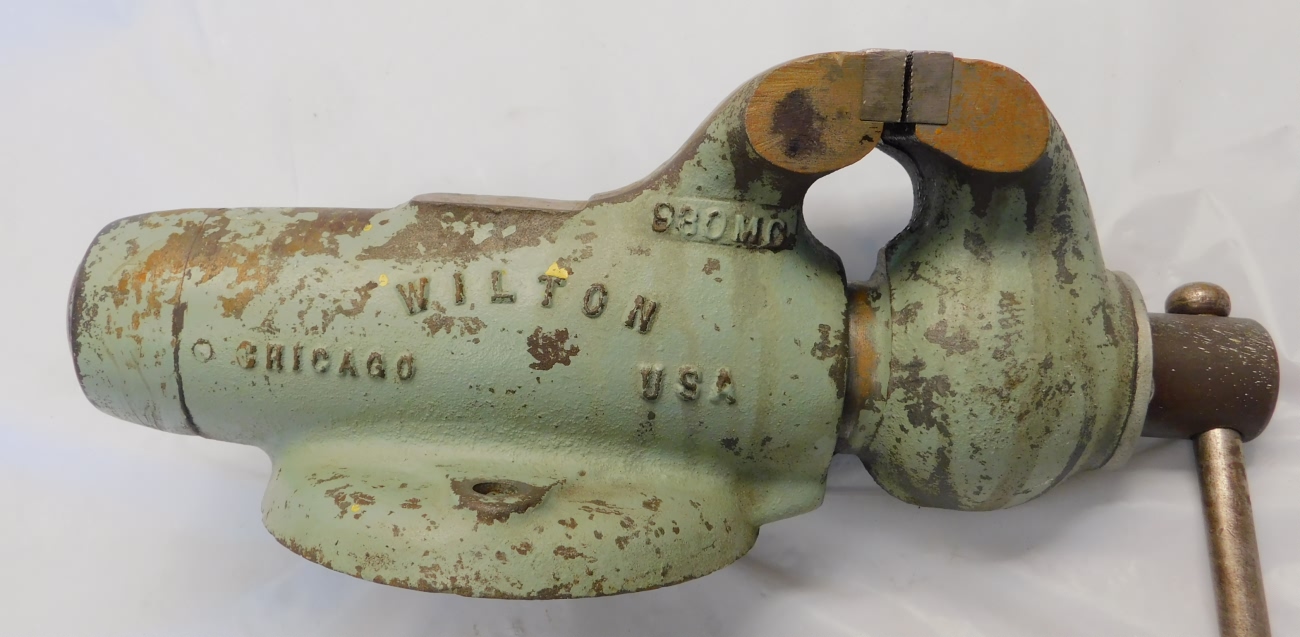

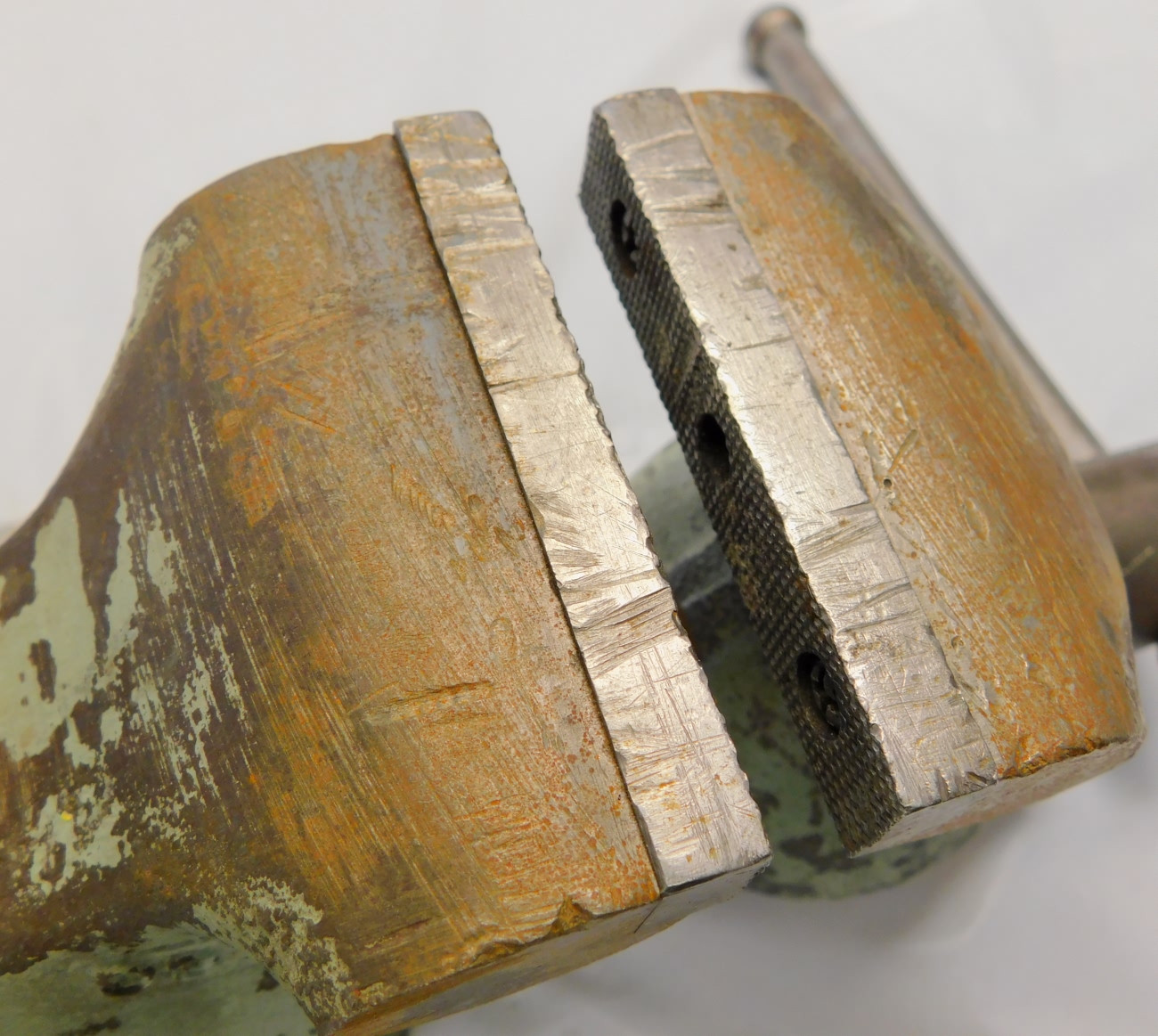

Wilton No. 5 Bullet 930 MC 3" Jaw Bench Vise Nice condition. The bottom bar is marked 7 - 52 which dates it. Original finish / paint. Jaws have some small top scars. A well made heavy duty little vise.

Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic

SAC-W5-VISE

Good + . . . . . . $230.00

To Order Email: patentedantiques@gmail.com

Wilton 4" Jaw Bullet Vise w/ Swivel Base Nice overall condition. The date on the keyway is 1990. I see no model #. Original finish / paint. Jaws have some small scars on top and have never been flipped. Runs in and out nicely. Weighs a good 60 lbs. A great heavy duty vise that is damage free and ready to go back to work.

Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic


Click for Pic               Click for Pic               Click for Pic               Click for Pic               Click for Pic

DM-WILT-4-VISE

Good + . . . . . . $575.00

To Order Email: patentedantiques@gmail.com

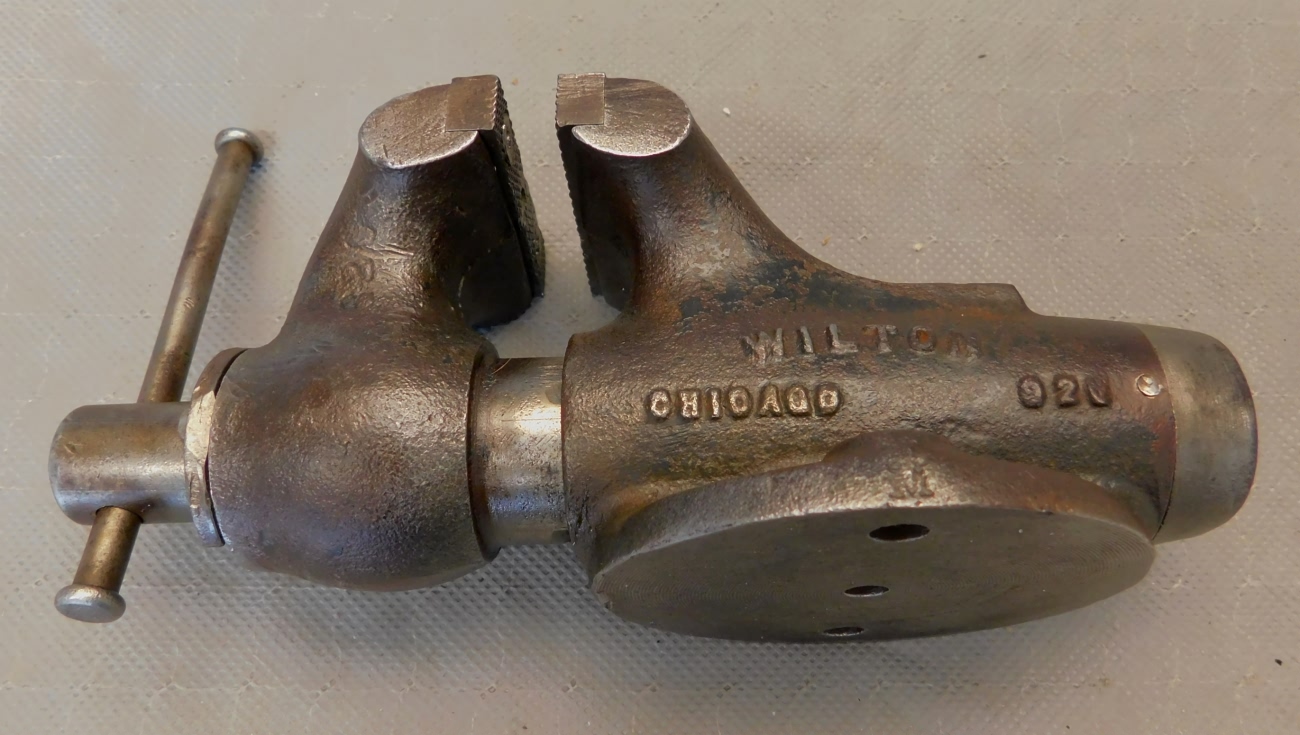

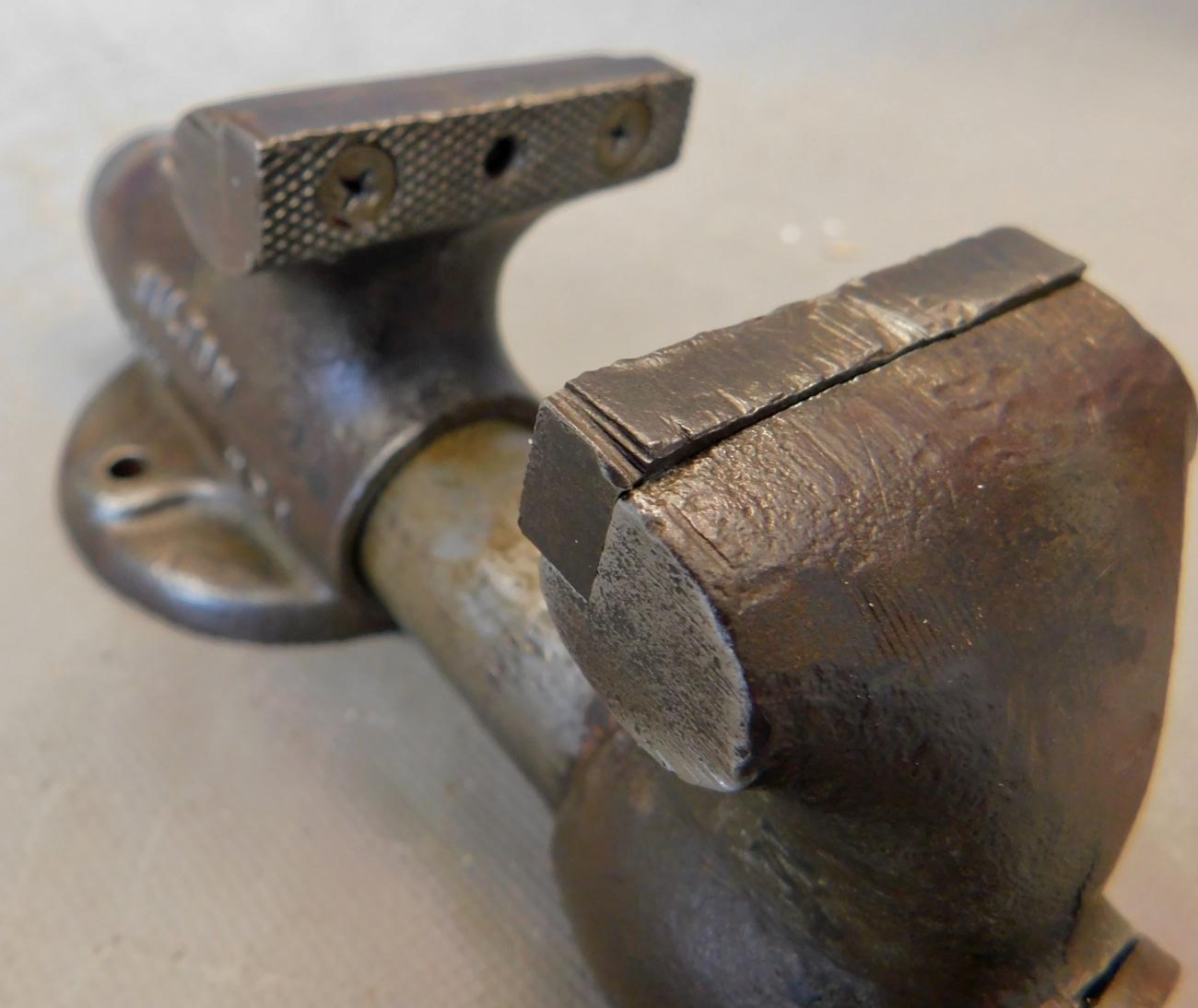

Wilton Baby Bullet 2" Jaw Bench Vise Nice overall condition. No swivel or other base. The bottom bar is marked and this vise dates from the 1960s. Jaw faces are good with some small top scars. Turns in and out smoothly. A well made heavy duty little vise. Nice!!

Click for Pic                Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic                Click for Pic                Click for Pic

SAC-WILTBABY

Good + . . . . . . $500.00

To Order Email: patentedantiques@gmail.com

Antique Leather Working Tools

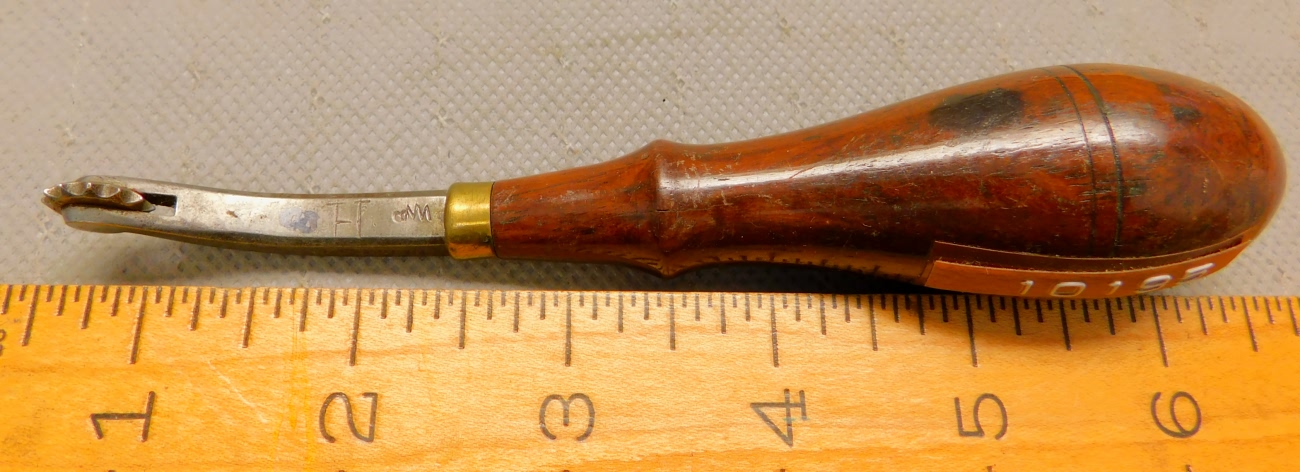

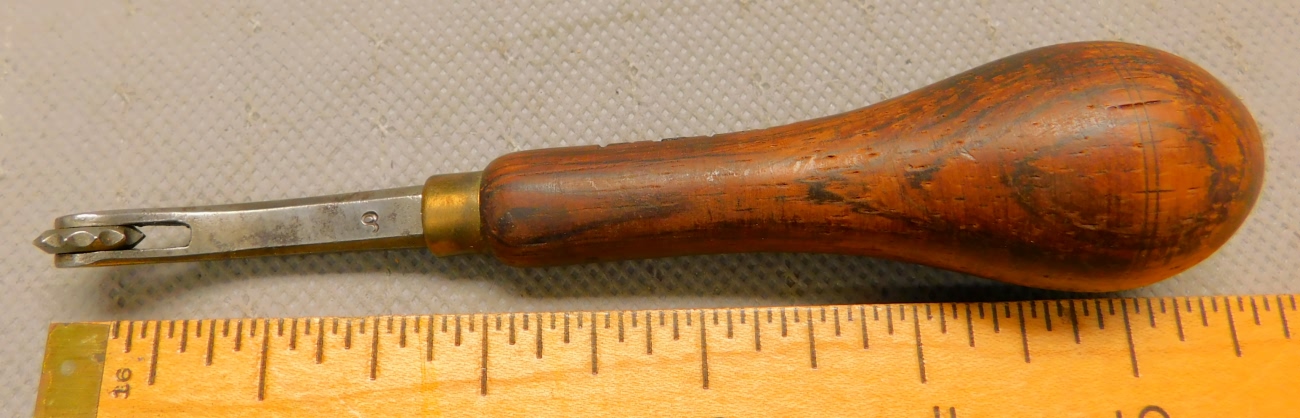

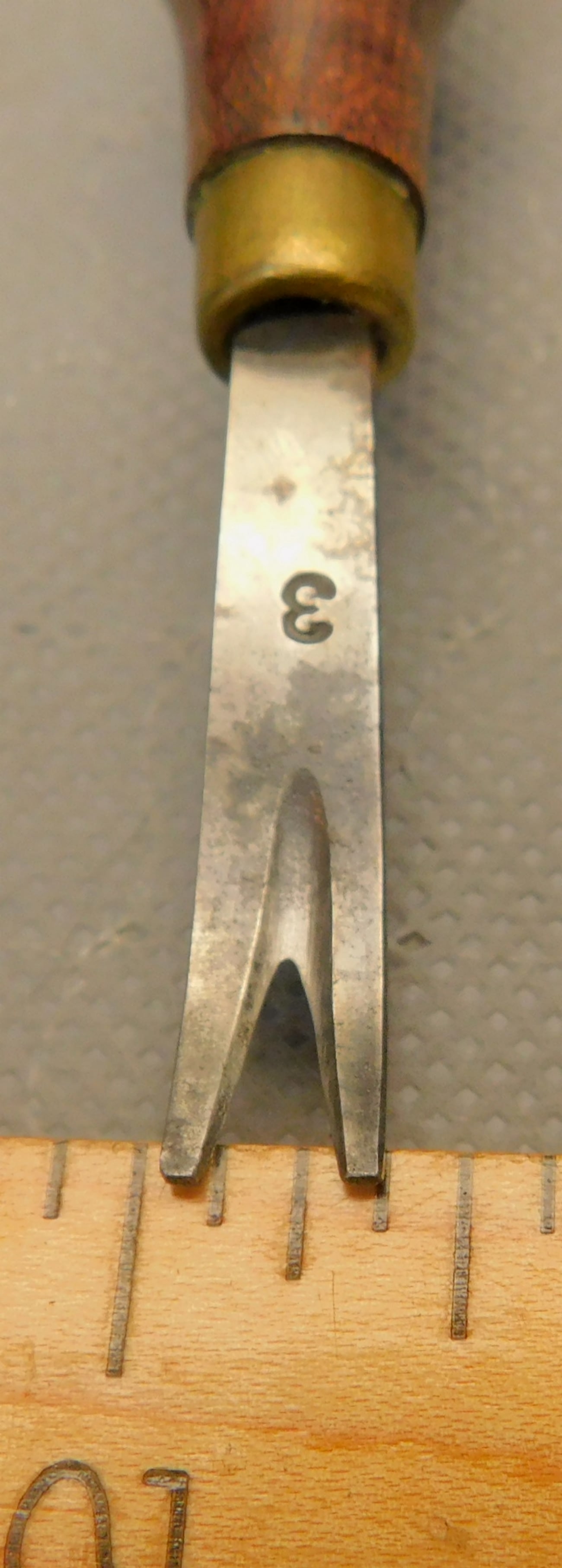

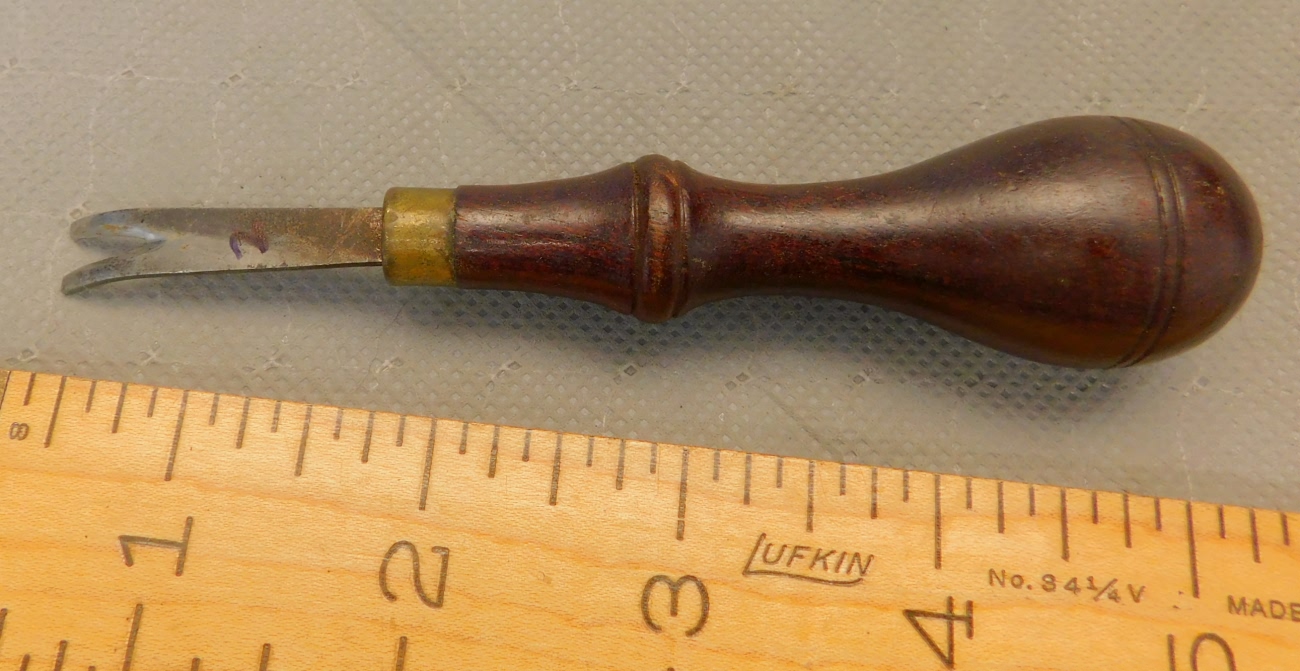

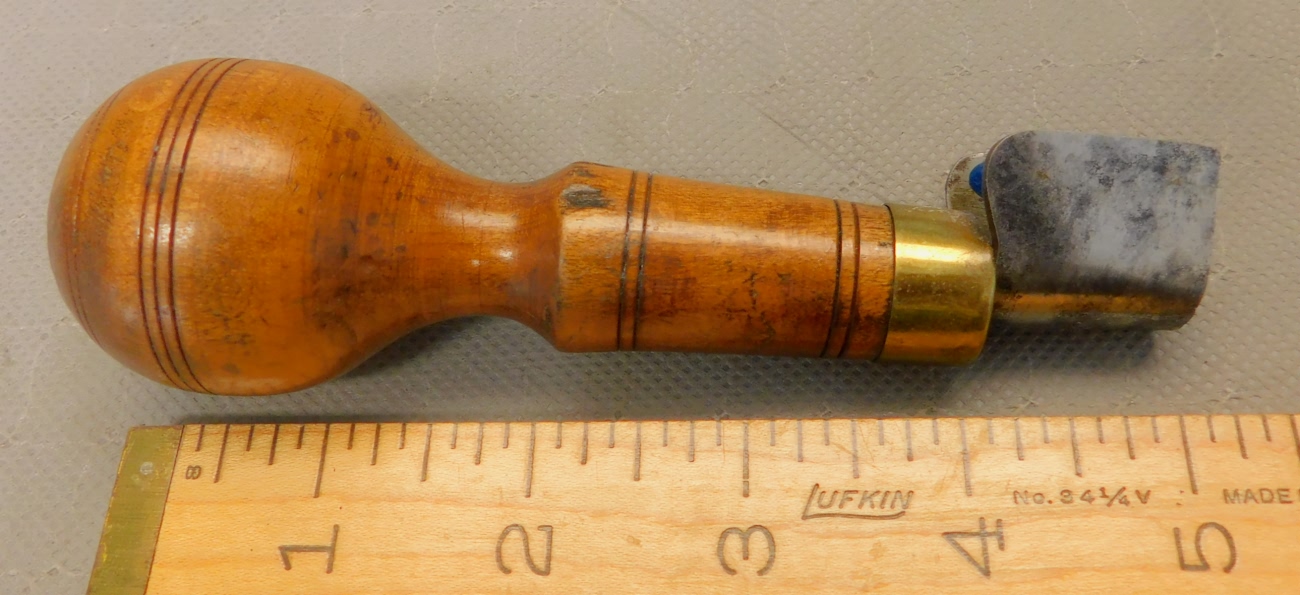

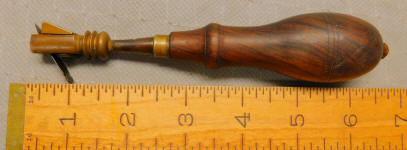

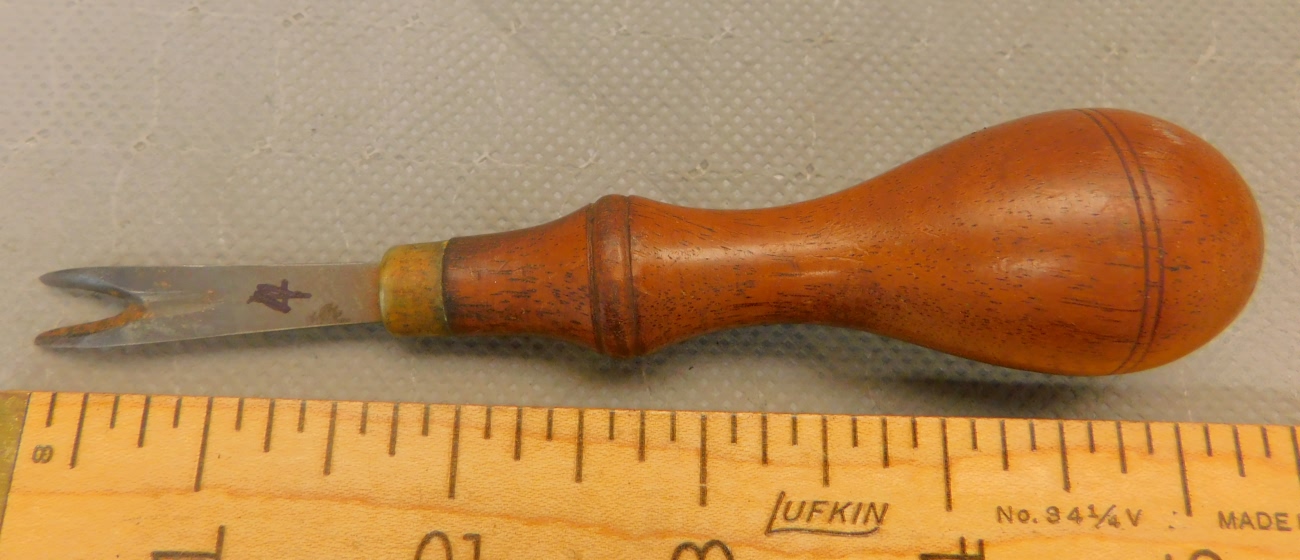

Osborne No. 100 Leather Channeler Saddle Maker / Cobbler Leather Working Tool Rosewood & brass. Marked No. 100 on the head.

Click for Pic                   Click for Pic                   Click for Pic


Click for Pic                   Click for Pic                   Click for Pic                   Click for Pic

Fine . . . . . $40.00

LTHR-100-CHAN      x

To Order Email: patentedantiques@gmail.com

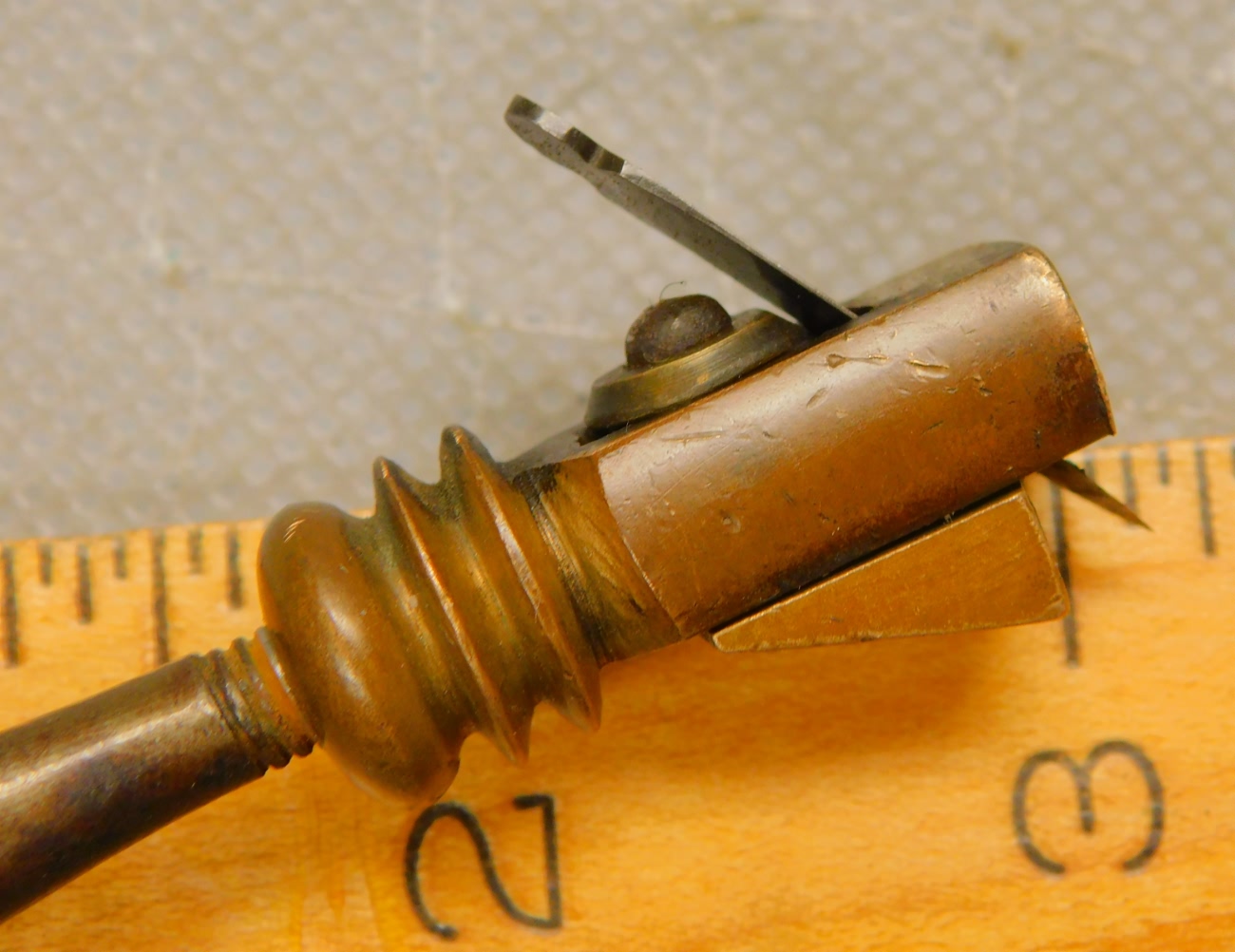

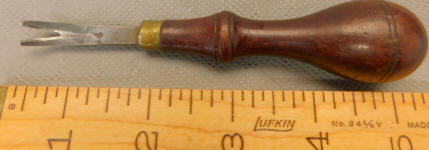

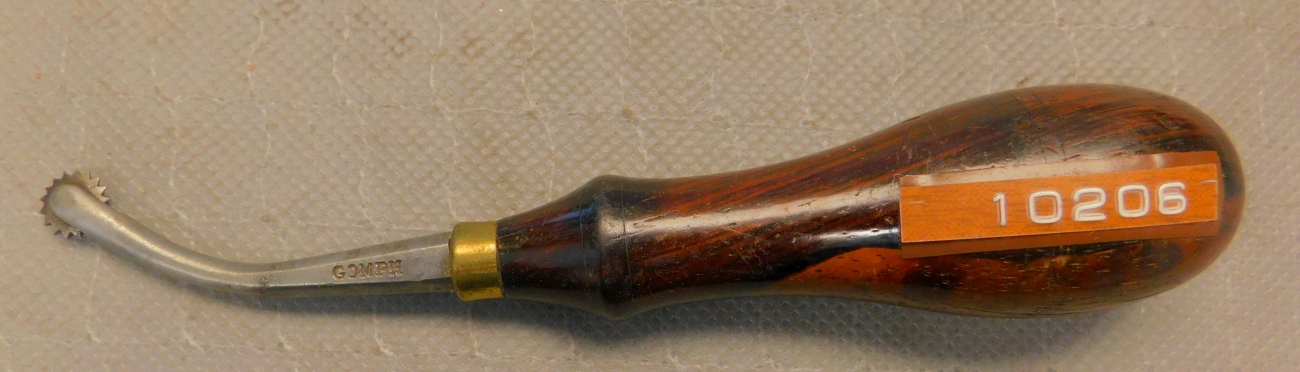

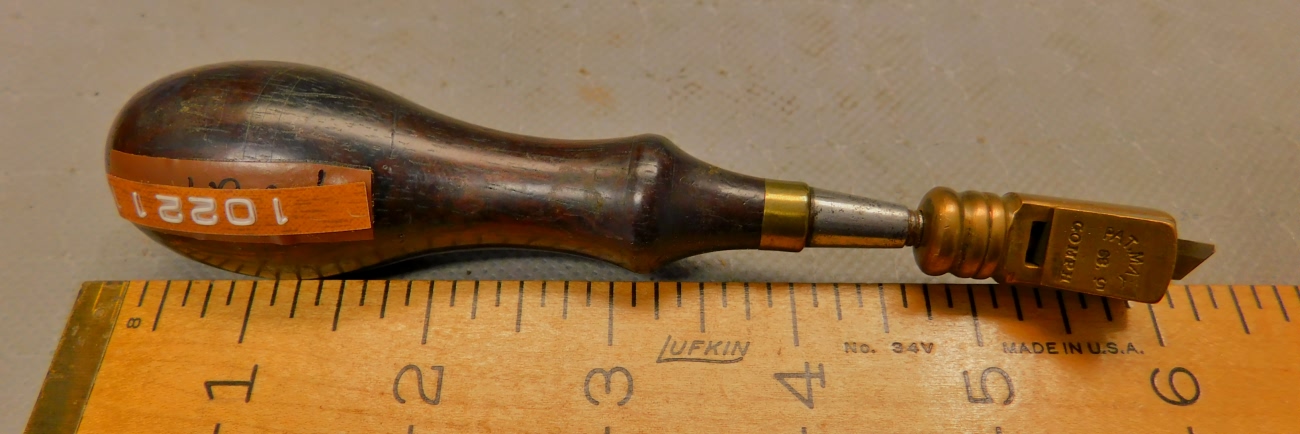

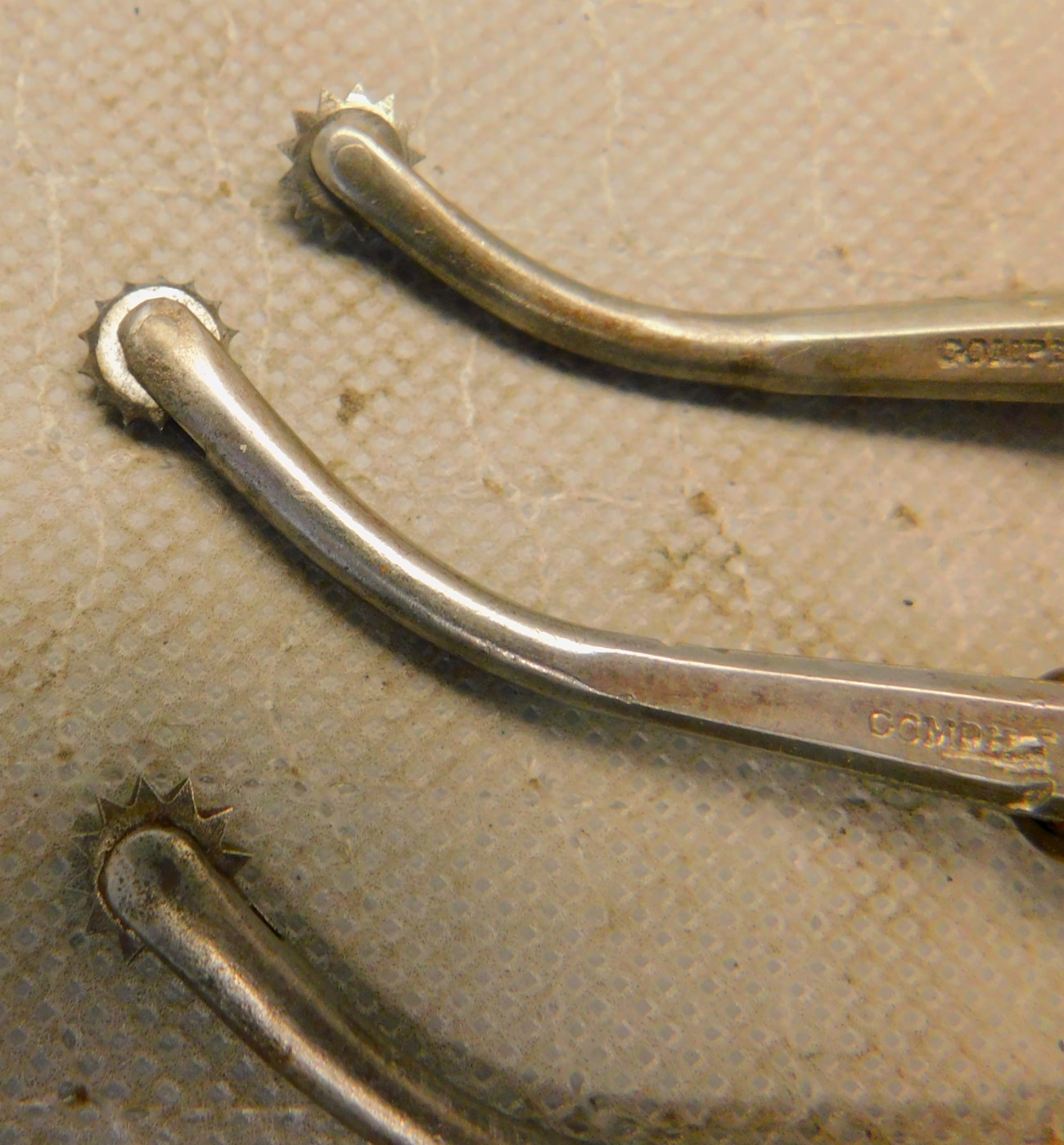

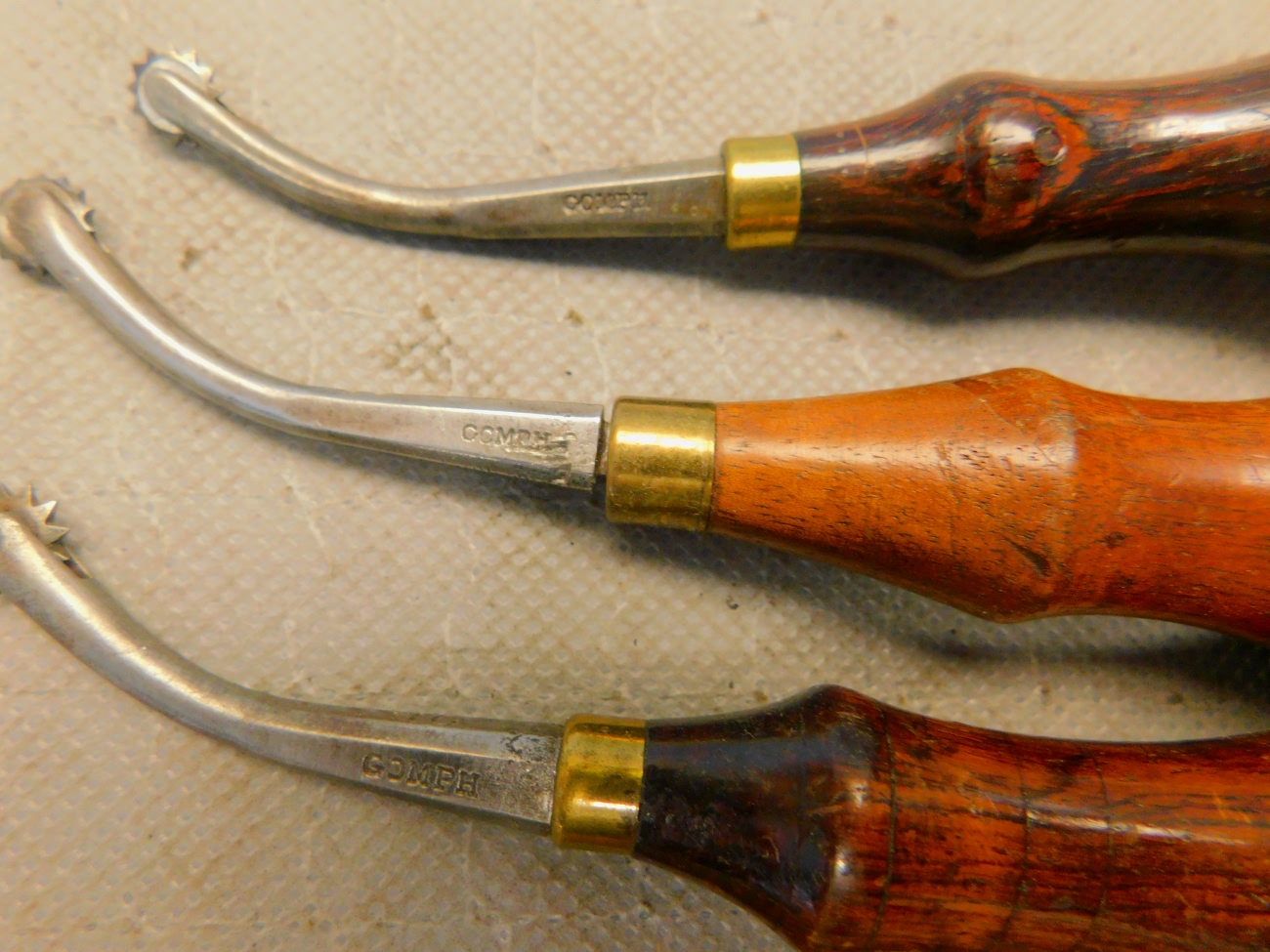

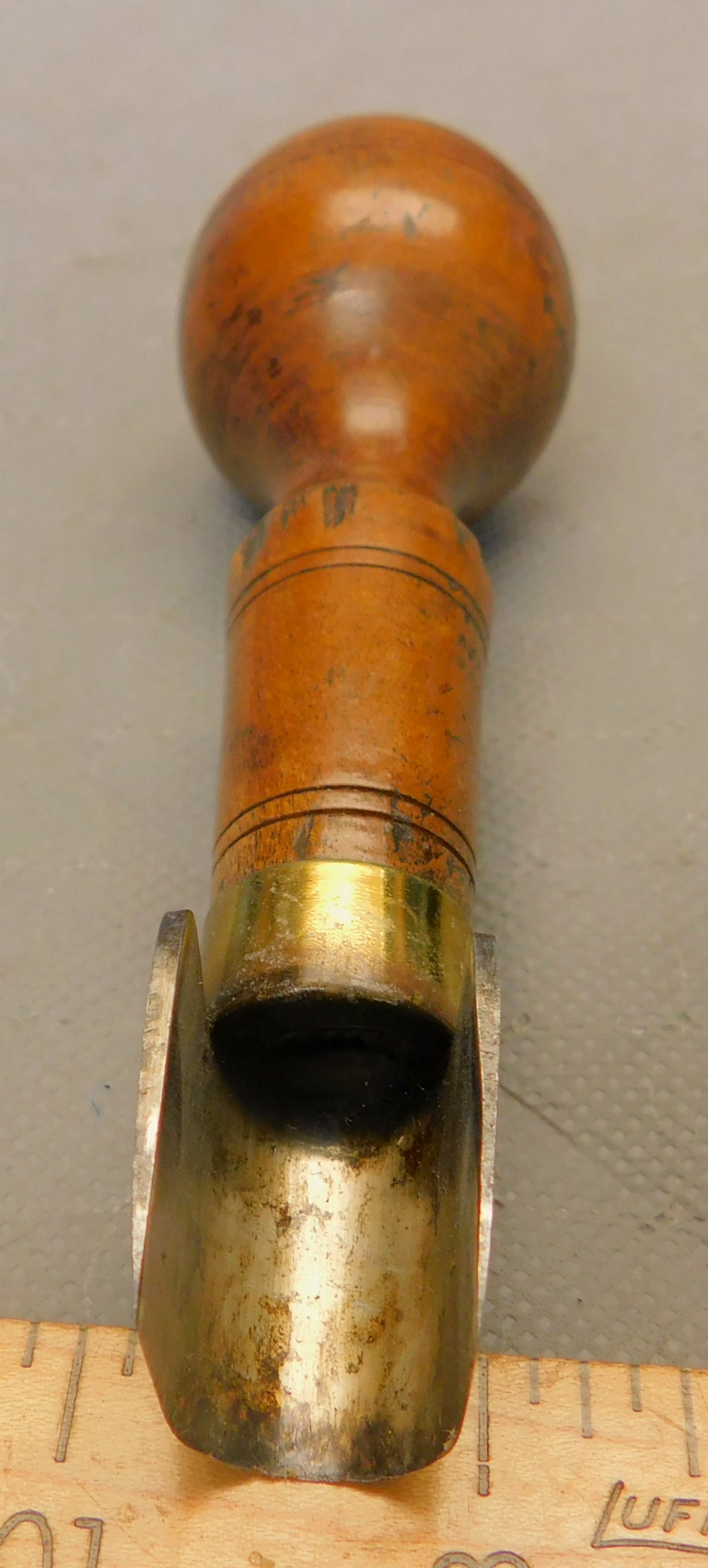

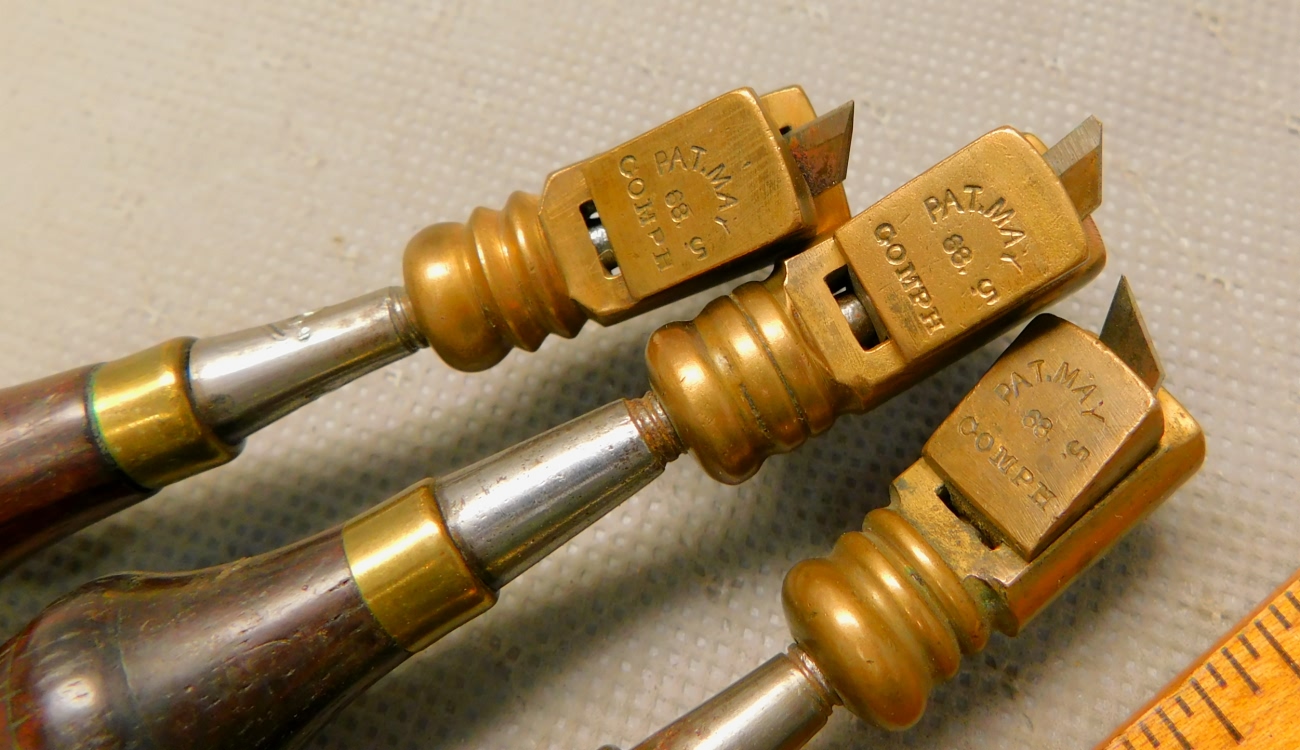

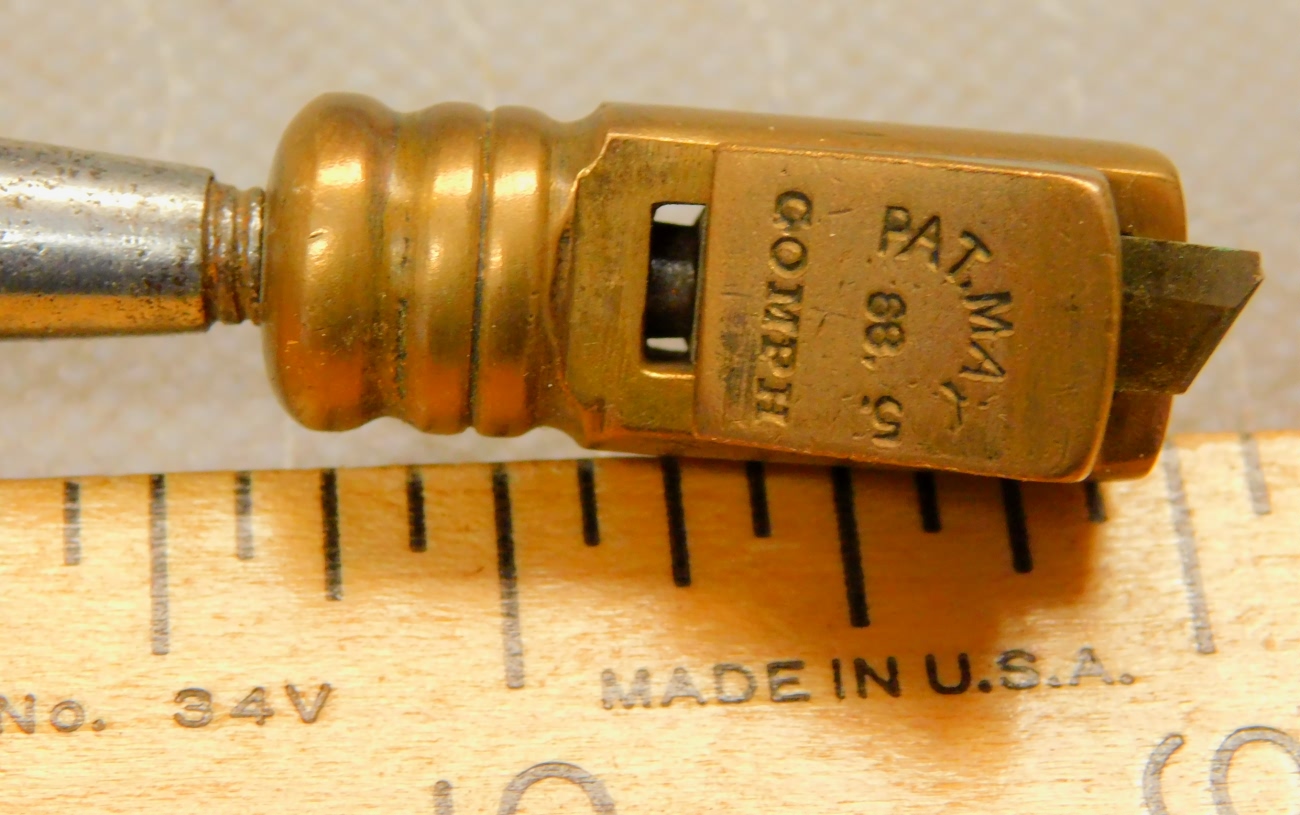

Gomph Channeler Saddle Maker / Cobbler Leather Working Tool Patented May 5th 1868. Clear markings. Rosewood Handle. Good cutter. Not worn out. Very nice.

Click for Pic                 Click for Pic                 Click for Pic                 Click for Pic

Fine . . . . . $40.00

LTHR-GOMPH-CHAN-b     x

To Order Email: patentedantiques@gmail.com

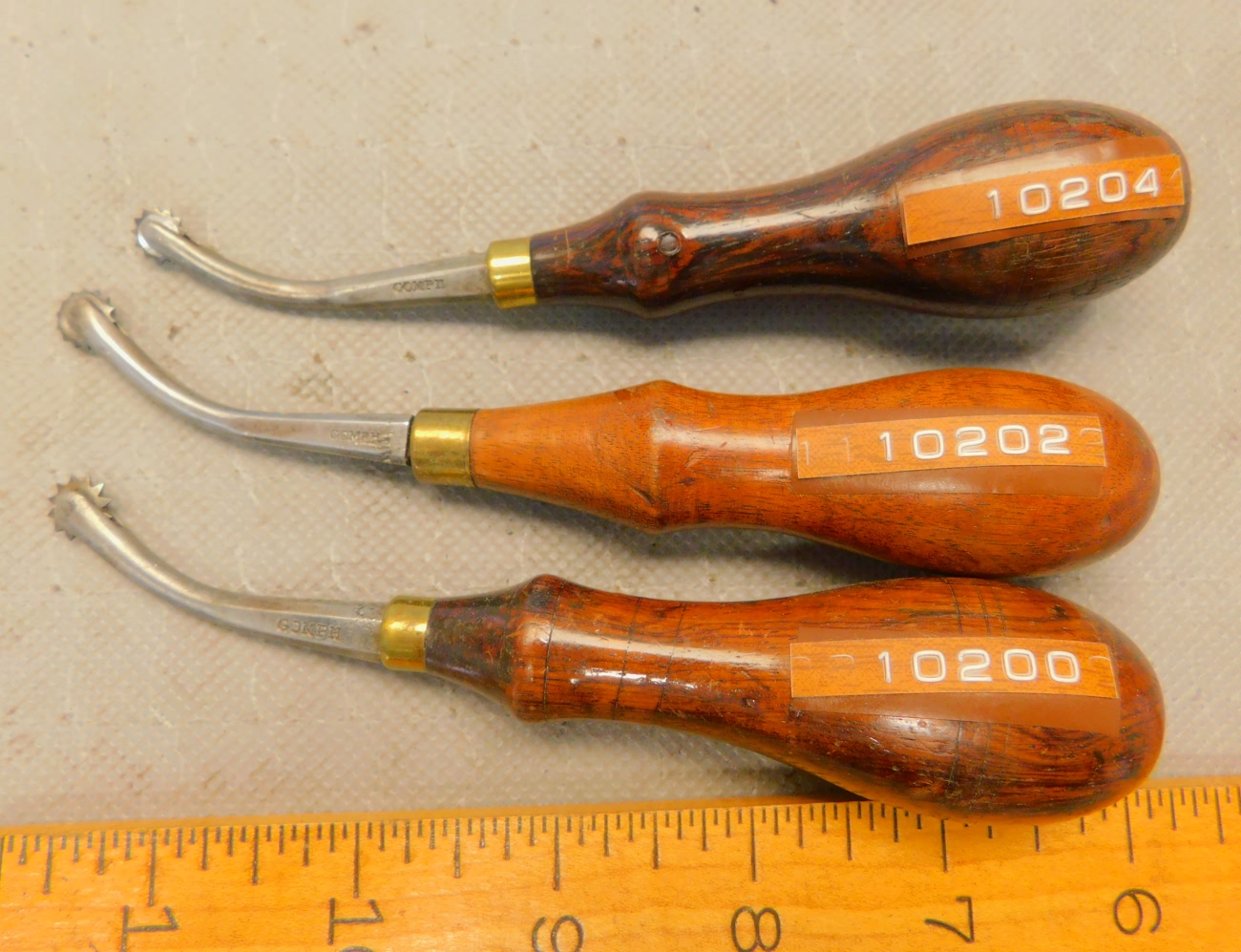

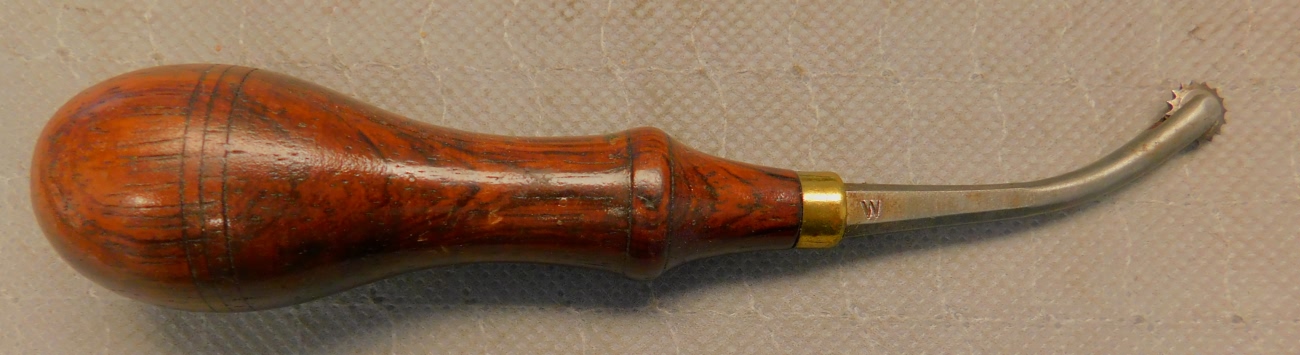

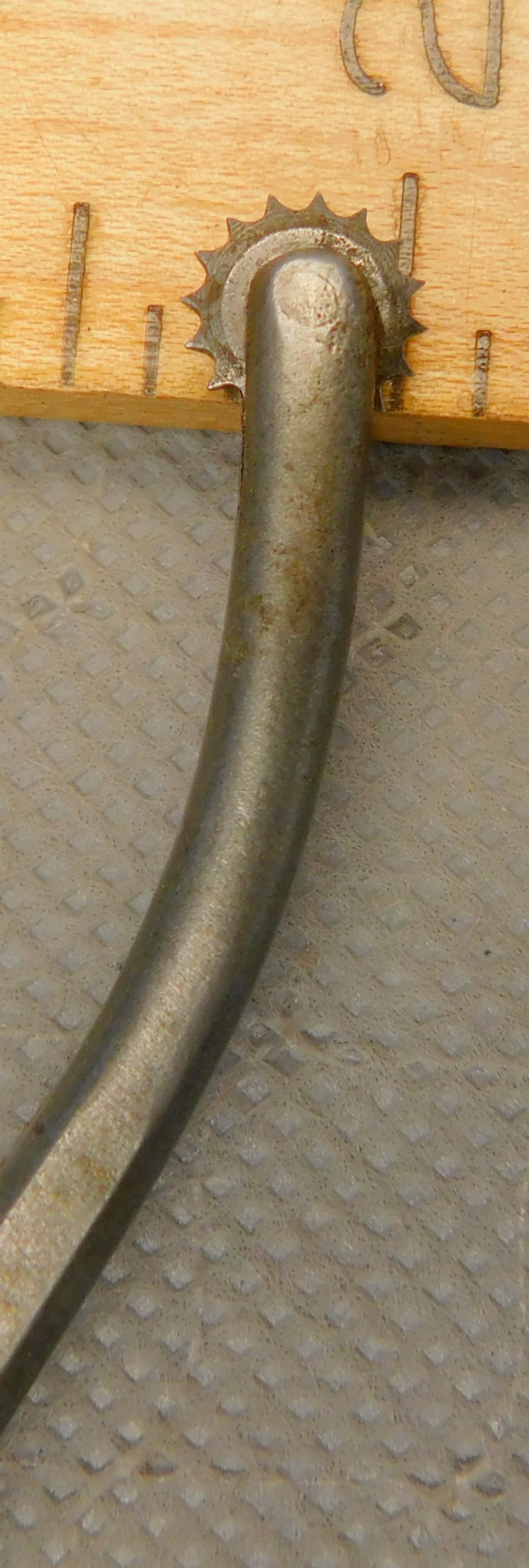

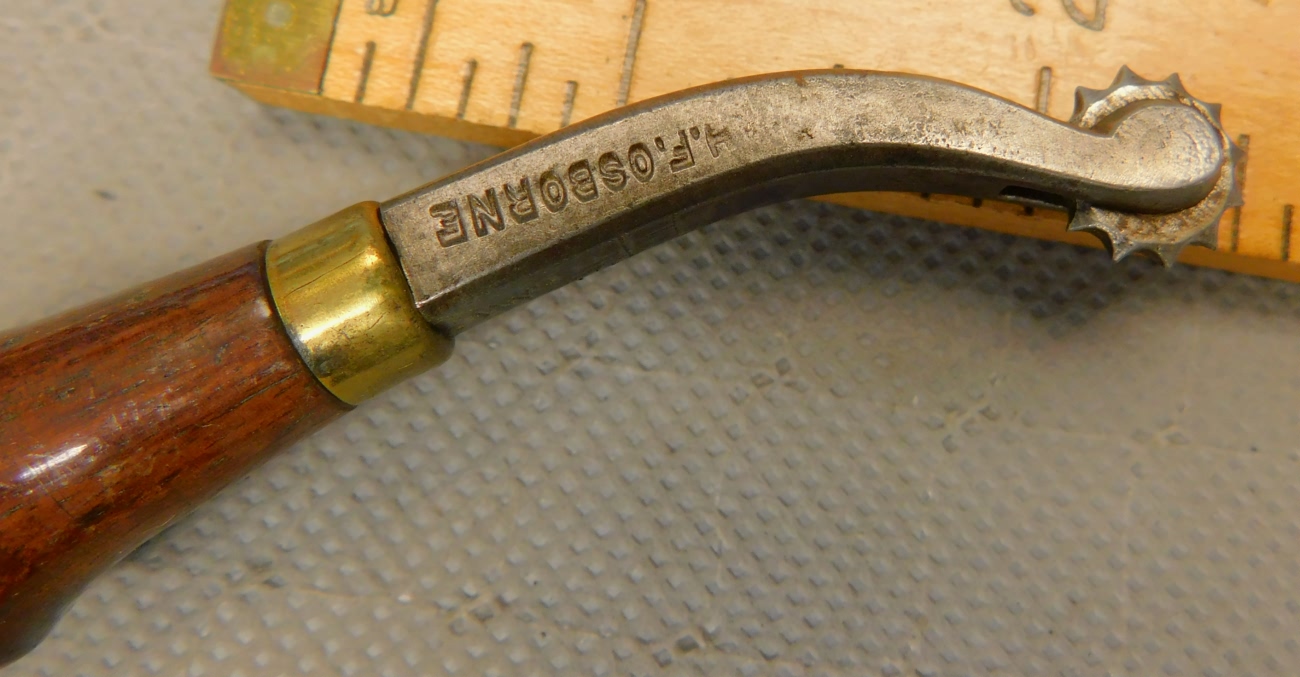

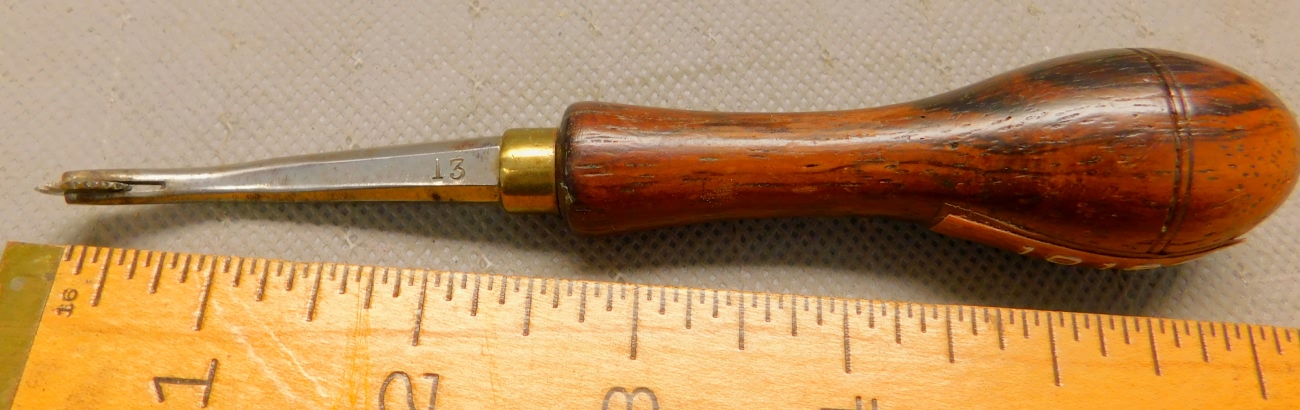

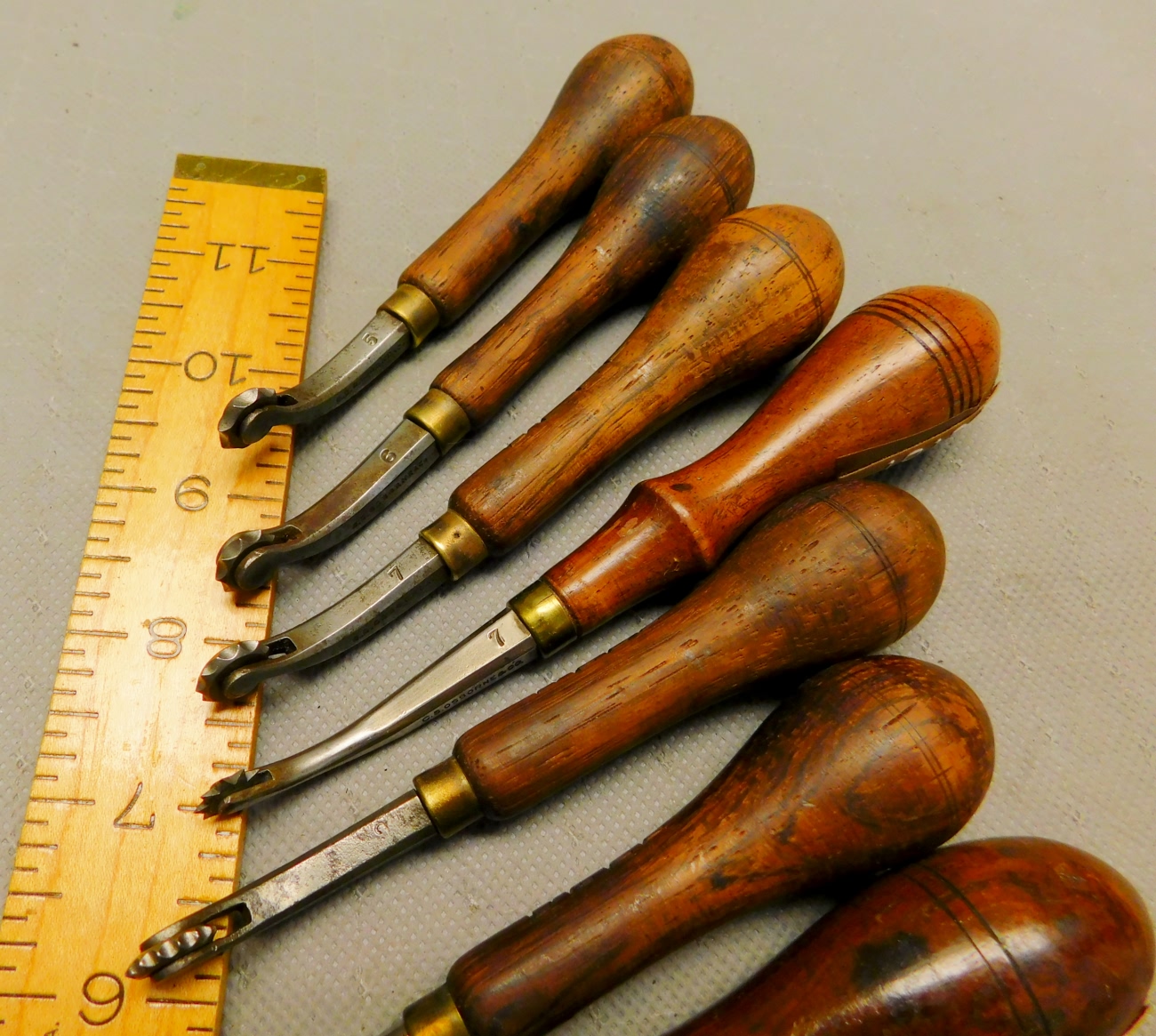

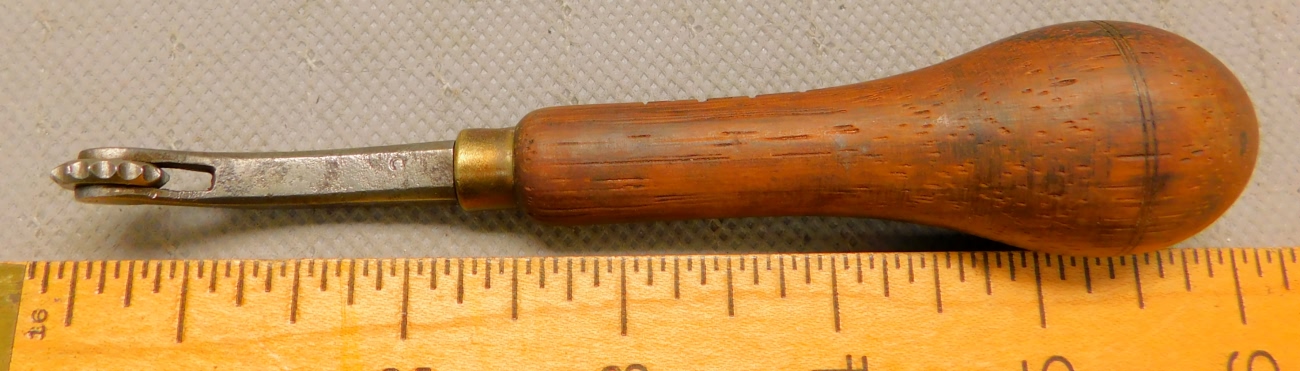

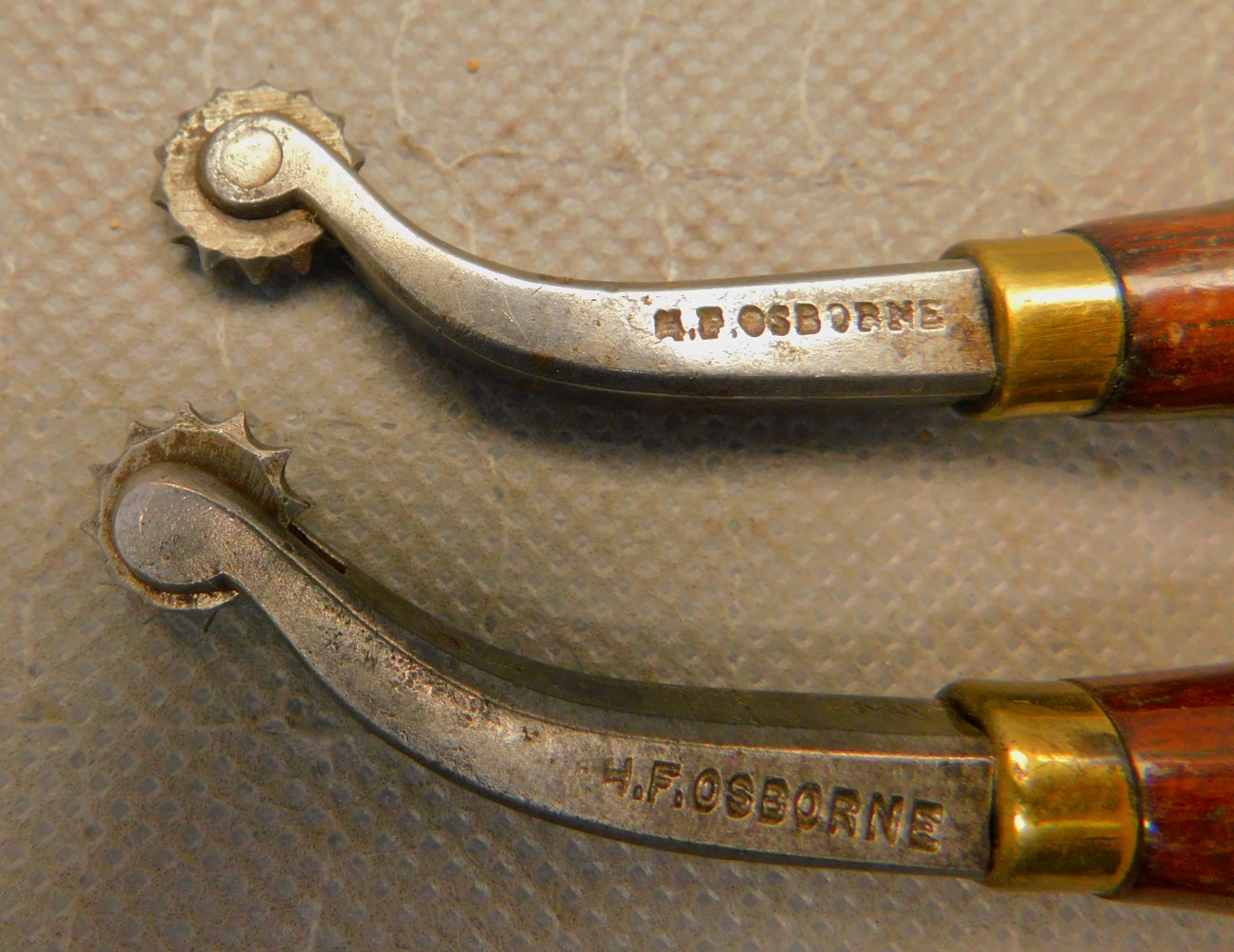

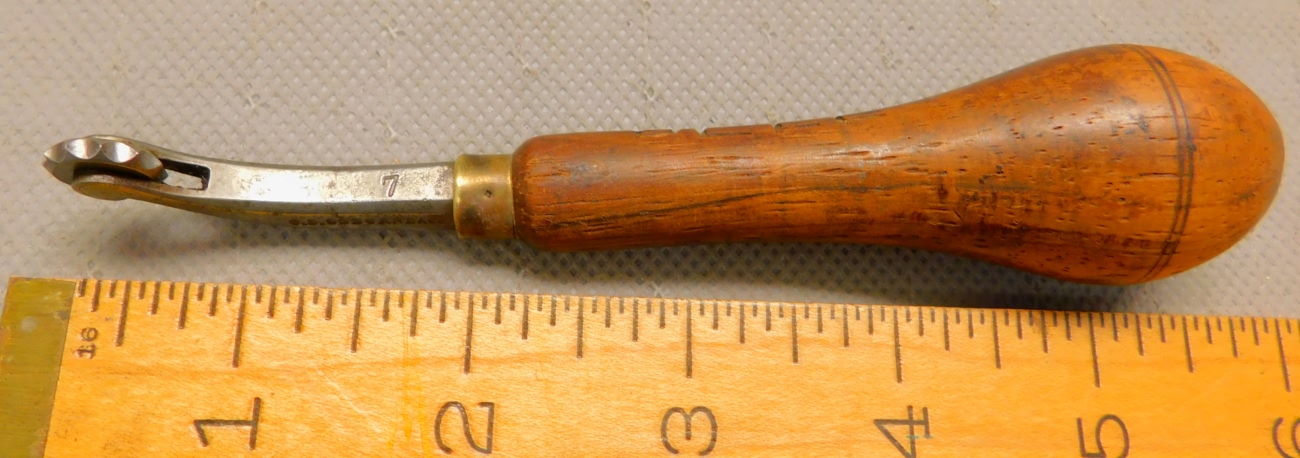

H. F. Osborne No. 8 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle.  Very nice.

Click for Pic                   Click for Pic

Good + . . . . . $25.00

LTHR-HF-O-OVER-8  10195

To Order Email: patentedantiques@gmail.com

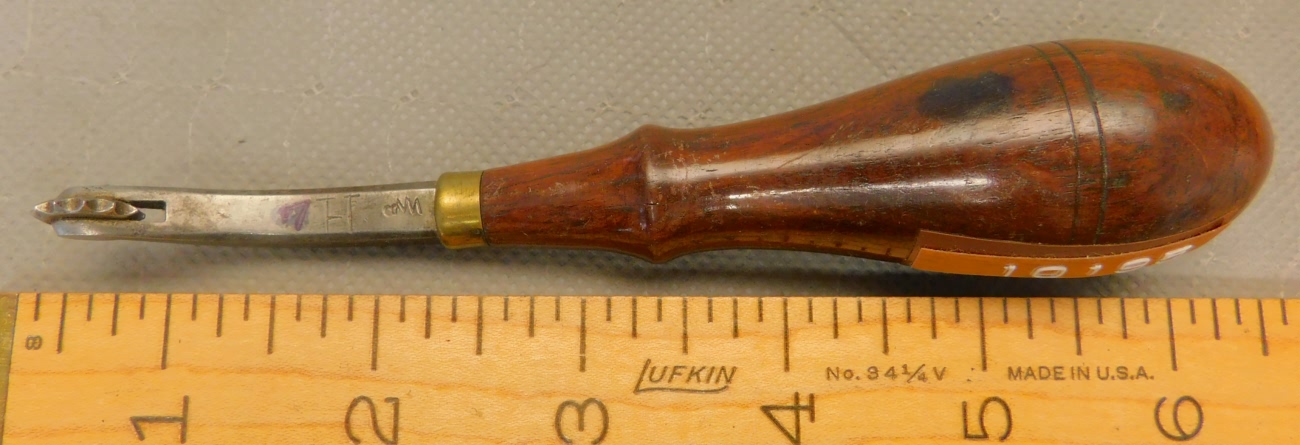

H. F. Osborne No. 9 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle decent condition.

Click for Pic                   Click for Pic

Good + . . . . . $25.00

LTHR-HF-O-OVER-9  10196

To Order Email: patentedantiques@gmail.com

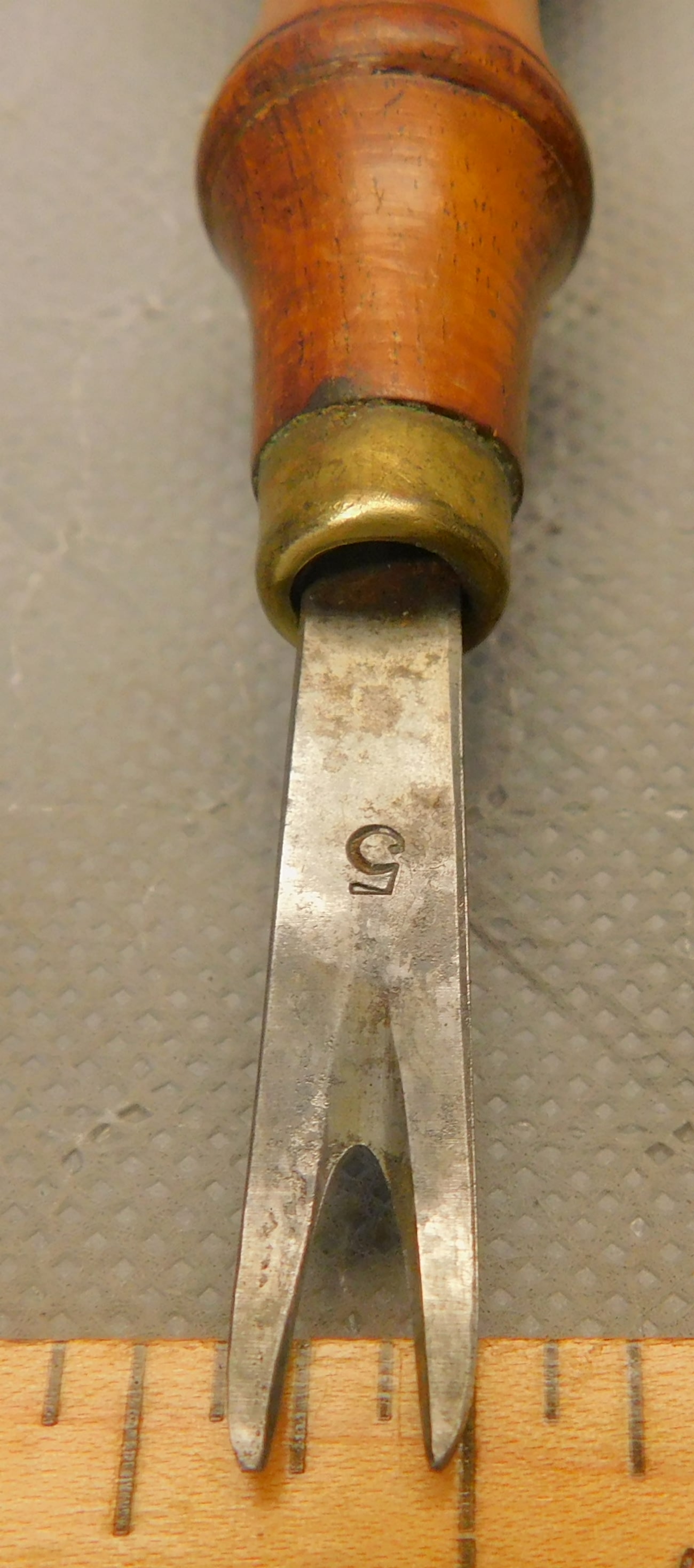

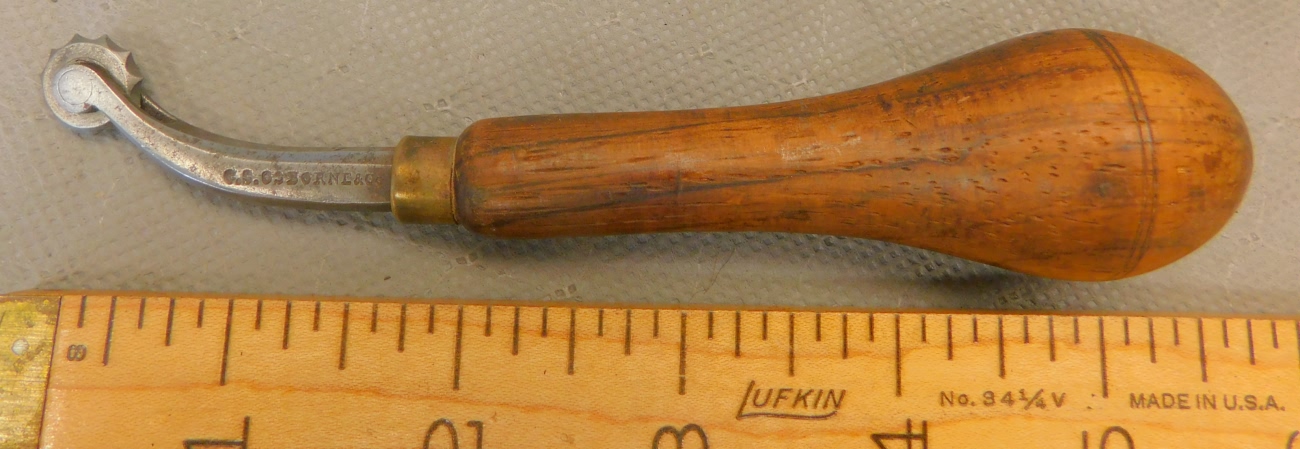

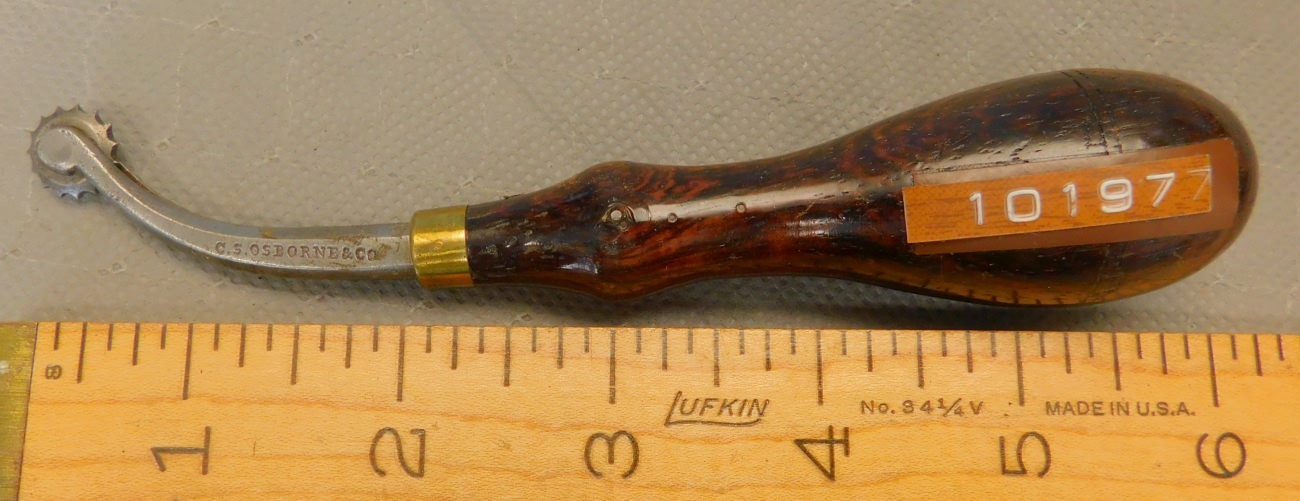

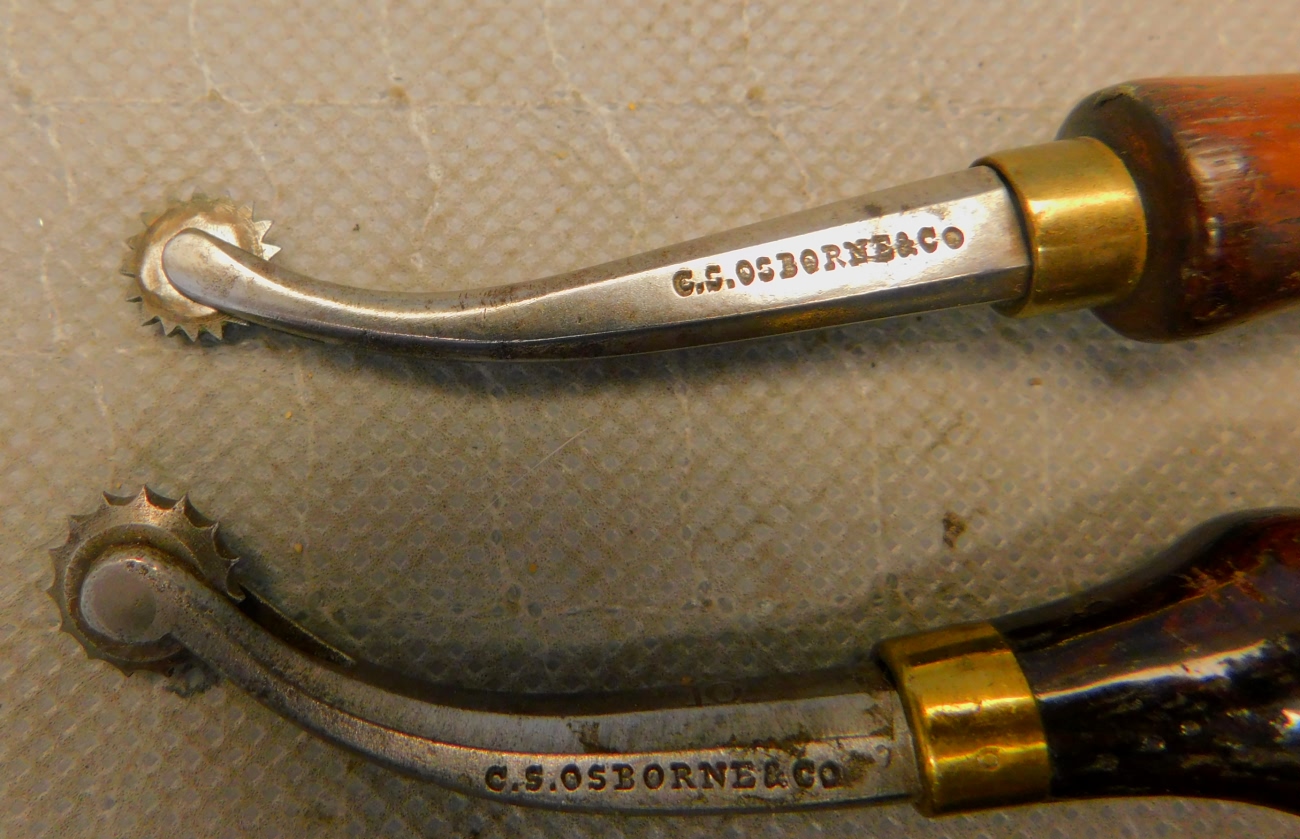

C. S. Osborne No. 5 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition. The wheel is about worn out. Might be fixable or the handle and shaft used with new wheel, or?

Click for Pic                   Click for Pic

Fair . . . . . $15.00

LTHR-CS-O-OVER-5

To Order Email: patentedantiques@gmail.com

C. S. Osborne No. 7 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition noting a previous owner cut his name, Dell, into the handle

Click for Pic                   Click for Pic

Good . . . . . $25.00

LTHR-CS-O-OVER-7

To Order Email: patentedantiques@gmail.com

C. S. Osborne No. 8 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition noting a previous owner cut his name, Dell, into the handle

Click for Pic                   Click for Pic

Good . . . . . $25.00

LTHR-CS-O-OVER-8

To Order Email: patentedantiques@gmail.com

C. S. Osborne No. 5 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition noting a previous owner cut his name, Dell, into the handle

Click for Pic                   Click for Pic

Good . . . . . $25.00

LTHR-CS-O-OVER-5

To Order Email: patentedantiques@gmail.com

C.S. Osborne No. 10 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle decent condition.

Click for Pic                   Click for Pic

Good + . . . . . $25.00

LTHR-CS-O-OVER-10     10197

To Order Email: patentedantiques@gmail.com

C.S. Osborne No. 11 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition noting a previous owner cut his name, Dell, into the handle.

Click for Pic                   Click for Pic

Good + . . . . . $25.00

LTHR-CS-O-OVER-11

To Order Email: patentedantiques@gmail.com

C.S. Osborne No. 12 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is in decent condition noting a previous owner cut his name, Dell, into the handle.

Click for Pic                   Click for Pic

Good + . . . . . $25.00

LTHR-CS-O-OVER-12

To Order Email: patentedantiques@gmail.com

Gomph No. 12 Saddle Maker / Leatherworker Overstitch / Pricking Wheel Overstitch or pricking wheels are for marking or laying out the number stitches per inch on leather. Rosewood handle is nice.

Click for Pic                   Click for Pic

Good + . . . . . $30.00

LTHR-GOMPH-OVER-12        10202

To Order Email: patentedantiques@gmail.com

Leatherworking Tool A Leather Glove or hole stretcher? It is marked Pat Appl'd For inside one half of it. The finger like form opens or spreads wider as you turn the turn screw. Different.

Click for Pic                   Click for Pic                   Click for Pic                   Click for Pic


Click For Pic            Click For Pic            Click For Pic

Good . . . . . $15.00

JF-LTHR-GLOVE

To Order Email: patentedantiques@gmail.com

3 Saddle Maker / Cobbler / Leatherworker Tools These antique leatherworking tools also came from the same collection. The Osborne No. 106 - 6" wing dividers are top of the line.

The pricker / spaced punch is adjustable. I am not sure what the proper name for it is. The "leather collar palm" that was used to push needles through thick leather is in good condition.

Click For Pic            Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click for Pic            Click for Pic            Click for Pic

Dividers - - - Good + . . . . . $30.00             SOLD!!

Palm - - - Good + . . . . . $20.00            SOLD!!

Pricker / Punch - - - Good + . . . . . $25.00

Good + . . . . . $40.00 / Lot of 2

JF-LTHR-3MISC

To Order Email: patentedantiques@gmail.com

How To Carve Leather by Al Stohlman  This is a 1952 edition. The title goes on to read Featuring ABC's of Figure Carving. Stohlman was a prolific writer on how to work with and carve leather. The cover has a couple small tears. The interior is nice.

Click for Pic                   Click for Pic                   Click for Pic


Click for Pic                   Click for Pic                   Click for Pic

Good + . . . . . $15.00

OAK-STOHLMAN

To Order Email: patentedantiques@gmail.com

1911 C. S. Osborne Leatherworking Tools Catalog  This is a 1976 reprint put out by Astragal Press. It is their line of Standard Tools, with a mix of leatherworking and saddle makers tools.  A good reference.

Click for Pic                   Click for Pic                   Click for Pic

Good + . . . . . $12.00

OAK-1911-CAT

To Order Email: patentedantiques@gmail.com

1899 C. S. Osborne Leatherworking Tools Catalog  This is an original. Cover is slightly loose and taped. Interior is pretty nice. A great reference.

Click for Pic                   Click for Pic                   Click for Pic                   Click for Pic


Click for Pic                   Click for Pic                   Click for Pic                   Click for Pic

Good . . . . . $150.00

OAK-1911-CAT

To Order Email: patentedantiques@gmail.com
